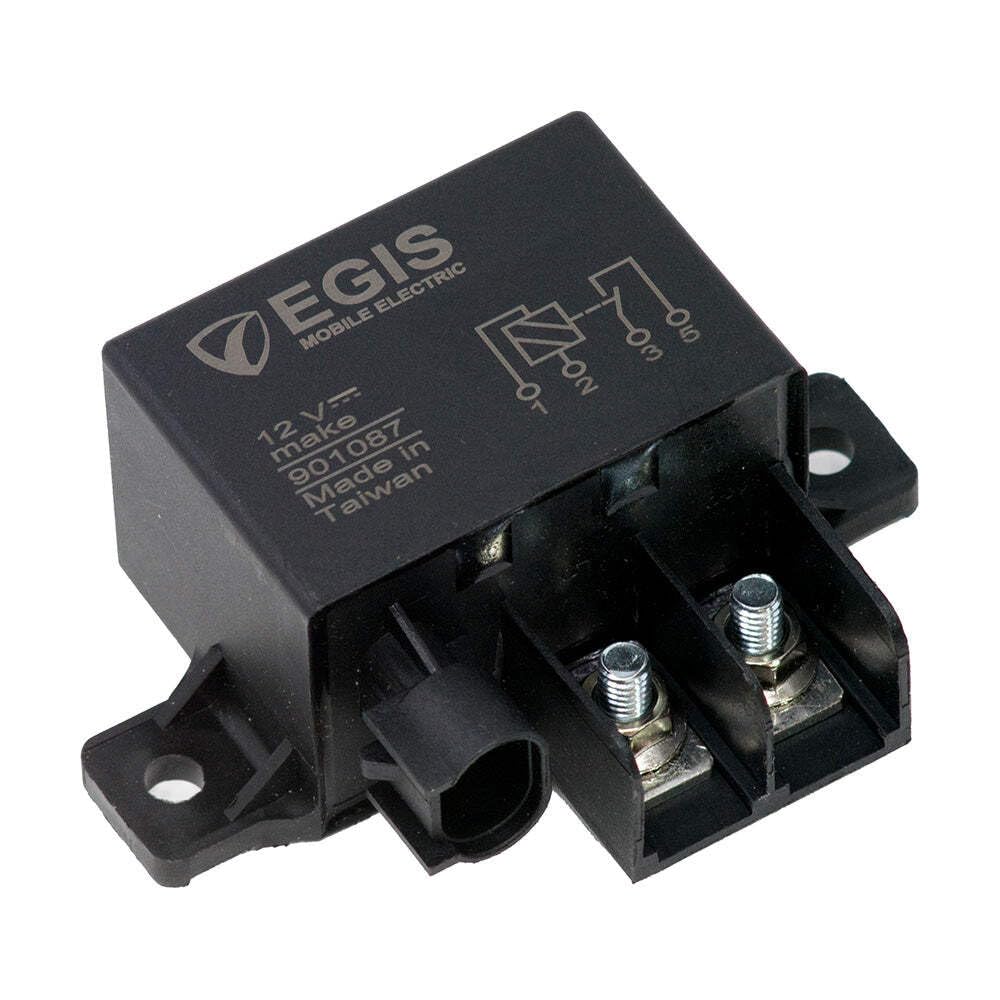

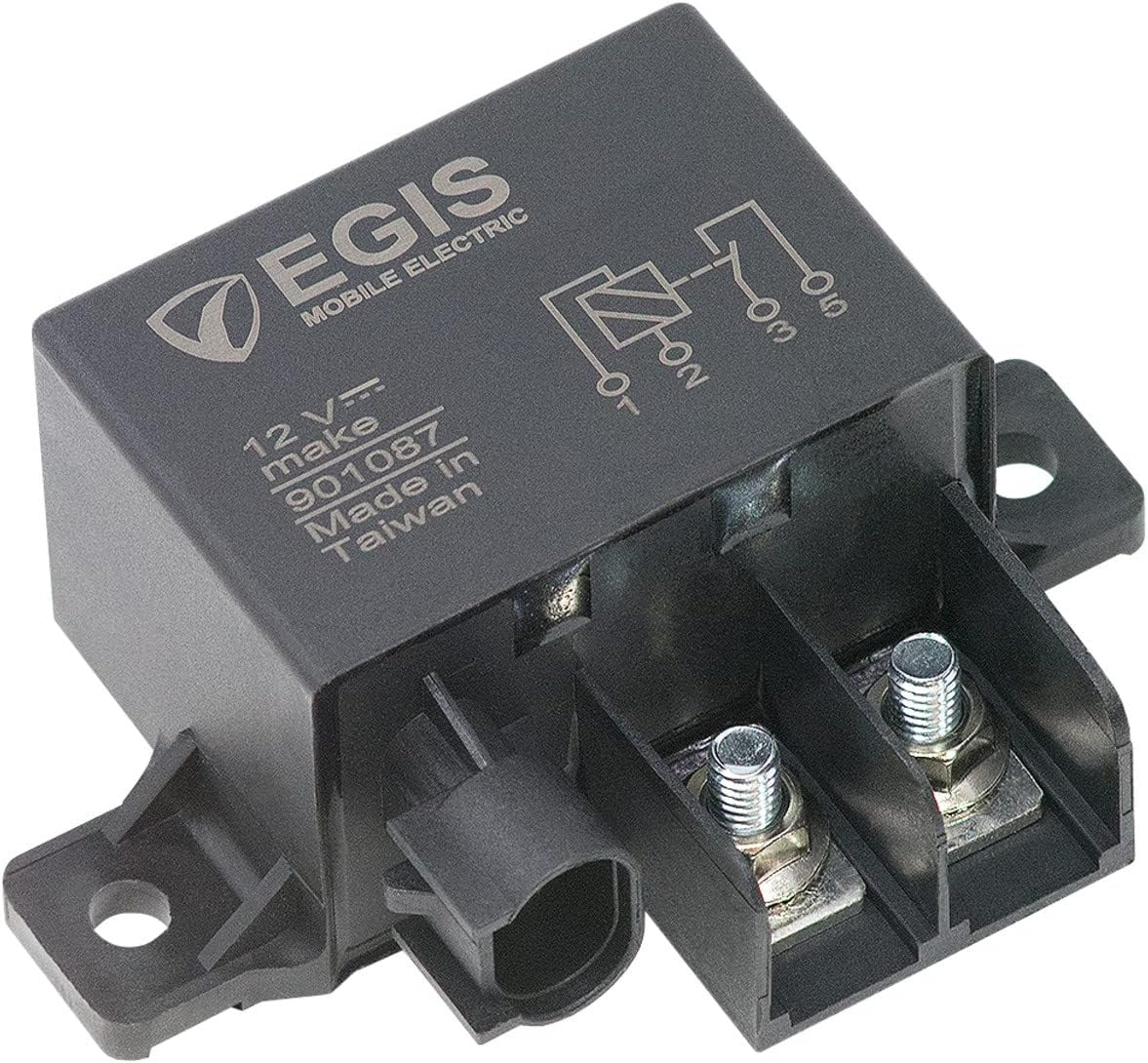

Egis Mobile Electric 901087 Heavy Duty 12V 150A Relay with Resistor

The Egis Mobile Electric 901087 is a heavy-duty automotive relay designed to handle high-amperage electrical loads in demanding environments. This 12V relay with integrated resistor serves as an industry-standard drop-in replacement for Tyco/Amp relays, making it ideal for automotive, marine, and industrial applications where reliable high-current switching is critical.

Key Features:

• Sealed enclosure with integrated Delphi Metripak connector for weather resistance
• Continuous current rating of 180 amps at 85°C operating temperature
• Intermittent current capacity up to 240 amps at 85°C
• Peak switching current capability of 300 amps at 13.5 VDC
• Low activation voltage of 7.2 VDC minimum operate voltage
• Efficient operation with 325mA current draw at 12V
• Drop-out voltage of 2.2 VDC for positive release

Engineered for harsh conditions, this relay is built to withstand high ambient temperatures and wet environments while maintaining reliable performance. The sealed design protects internal components from moisture, dust, and contaminants, ensuring long service life in challenging applications such as off-road vehicles, marine electrical systems, heavy equipment, and high-performance automotive builds.
