Bluewater 9057-2123-4 19mm Push Button Switch Momentary IP69K Waterproof LED

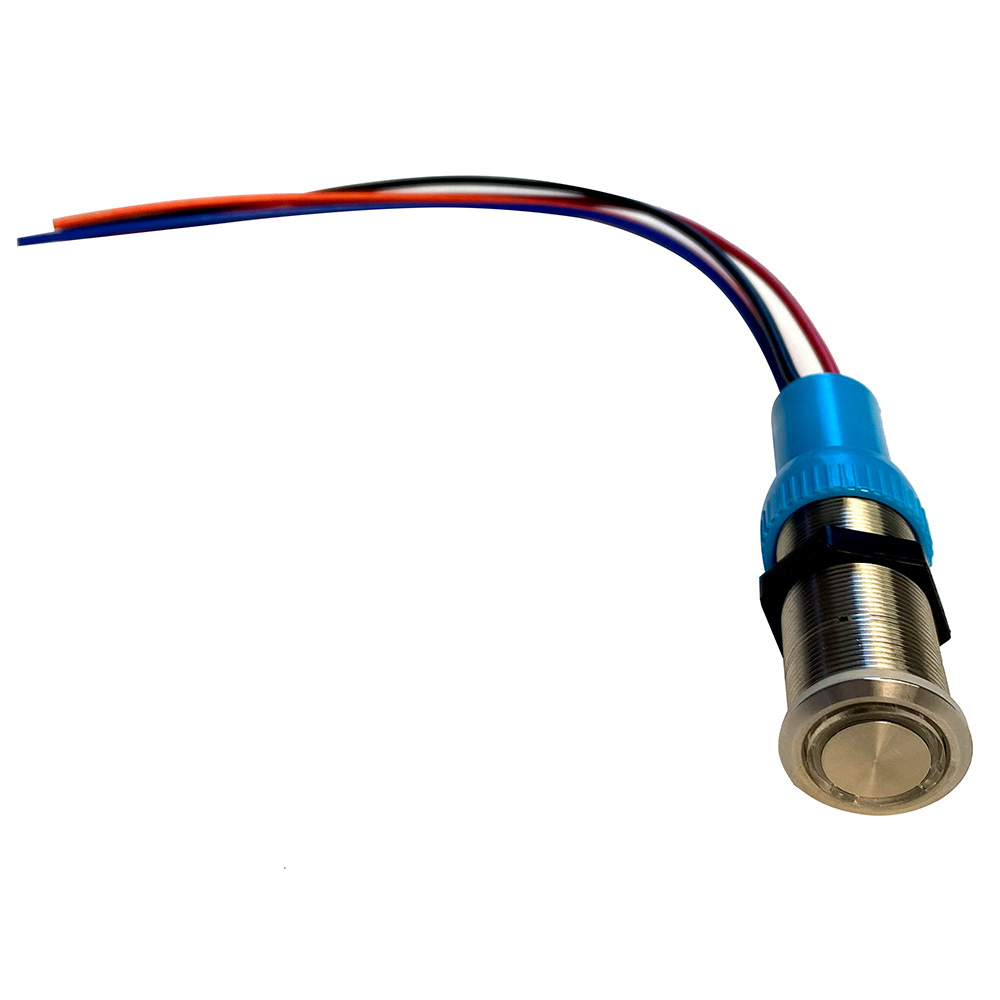

The Bluewater 9057-2123-4 is a 19mm stainless steel push button switch designed for marine, RV, and powersports applications requiring waterproof control solutions. This momentary switch features an Off/(On)/(On) double momentary contact configuration with integrated LED illumination.

Key Features:

• Stainless steel construction with IP69K waterproof rating for harsh marine environments
• Double momentary contact operation: Off/(On)/(On) function
• Tri-color LED illumination: Blue (off), Green (first momentary on), Red (second momentary on)
• Heavy-duty 15A rating at 12-24VDC
• 4-foot pre-wired lead with color-coded contacts for simplified installation
• Fits panels up to 6mm thick with standard 19mm mounting hole
• 50,000 mechanical cycle life; 10,000 electrical cycle life

Installation:

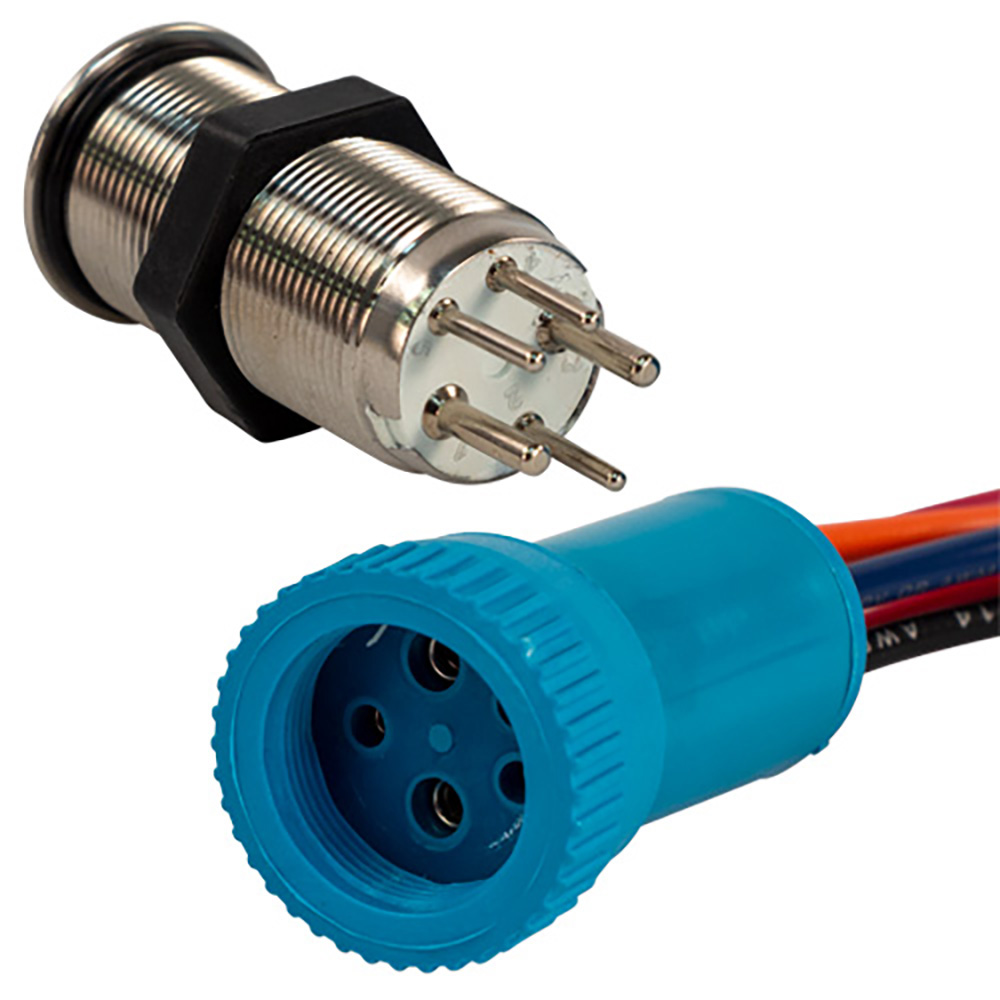

Install by drilling a 19mm hole in any dash or control panel up to 6mm thick. The included gasket ensures waterproof sealing. Connect the three color-coded button contacts and two LED contacts according to the wiring diagram.

The multi-color LED provides instant visual feedback: blue when off, green during first momentary activation, and red during second momentary activation. The rear identification features a green dot with line marking for easy circuit identification.
