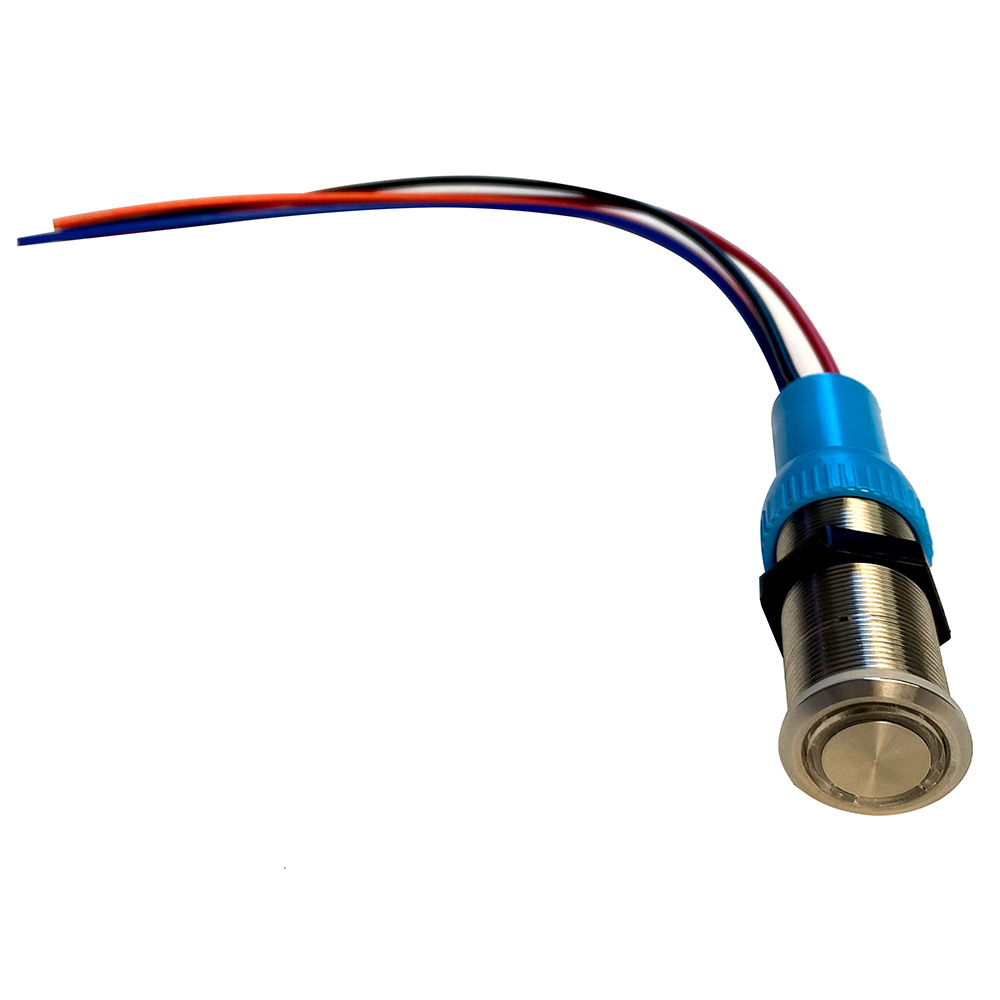

Bluewater 9057-3113-4 19mm Push Button Switch Off/On/On Waterproof LED

The Bluewater 9057-3113-4 is a premium 19mm push button switch featuring Off/On/On standard contact configuration with multi-color LED illumination. This marine-grade switch combines rugged stainless steel construction with modern LED technology, making it ideal for boats, RVs, and other demanding applications.

Key Features:

• Off/On/On momentary contact configuration with standard wiring
• Multi-color LED illumination: Blue/Green for first On position, Red for second On position
• IP69K waterproof rating for maximum protection against water and dust
• Stainless steel plated metal button with durable construction
• 4-foot pre-wired lead with color-coded contacts for easy installation
• 15A rating at 12-24VDC for versatile electrical applications
• 50,000 mechanical cycles and 10,000 electrical cycles lifespan

Specifications:

• Button diameter: 19mm (requires 19mm mounting hole)
• Maximum panel thickness: 6mm
• Switch rating: 15A at 12-24VDC
• Material: Stainless steel construction
• LED colors: Blue/Green (On position 1), Red (On position 2)
• Waterproof rating: IP69K with included gasket
• Rear identification: Blue dot marker

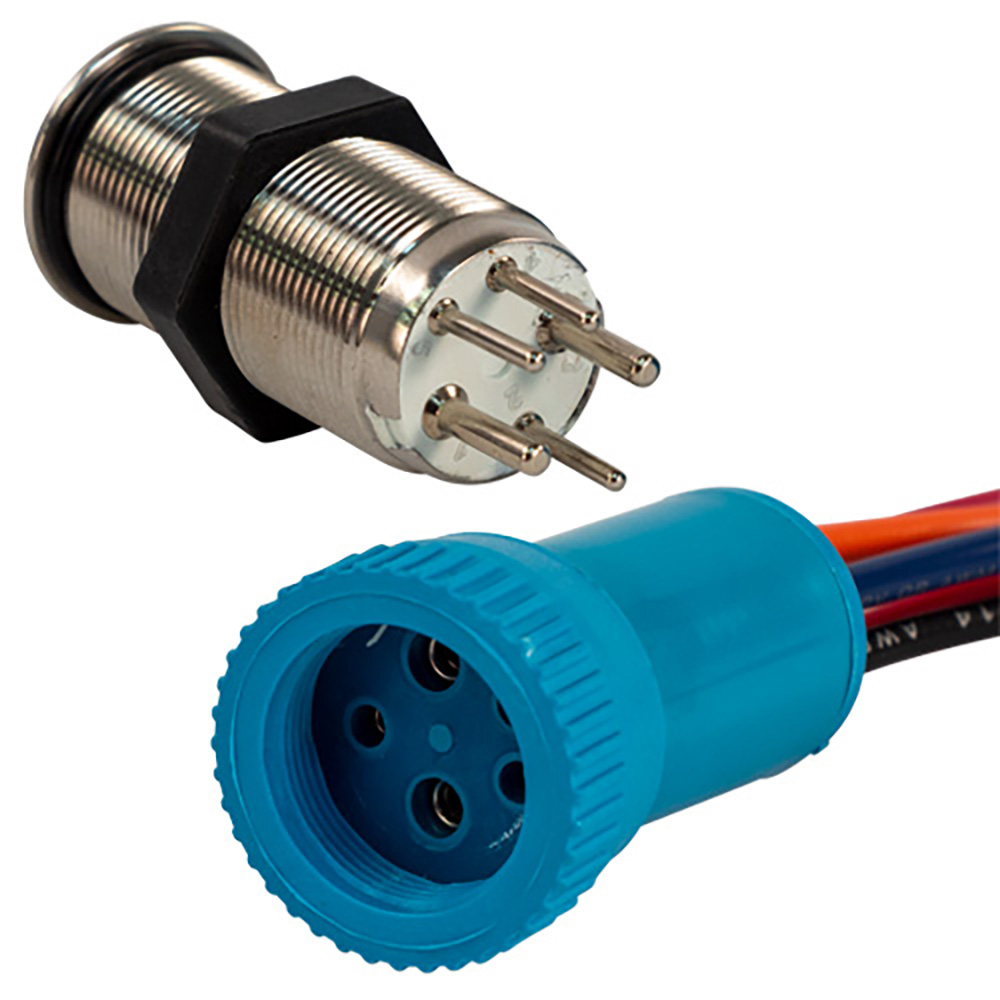

Installation:

Installation is straightforward: drill a 19mm hole in any panel up to 6mm thick, connect the three color-coded contacts for the switch function, and connect the two contacts for the LED illumination. The included gasket ensures a waterproof seal when properly installed.
