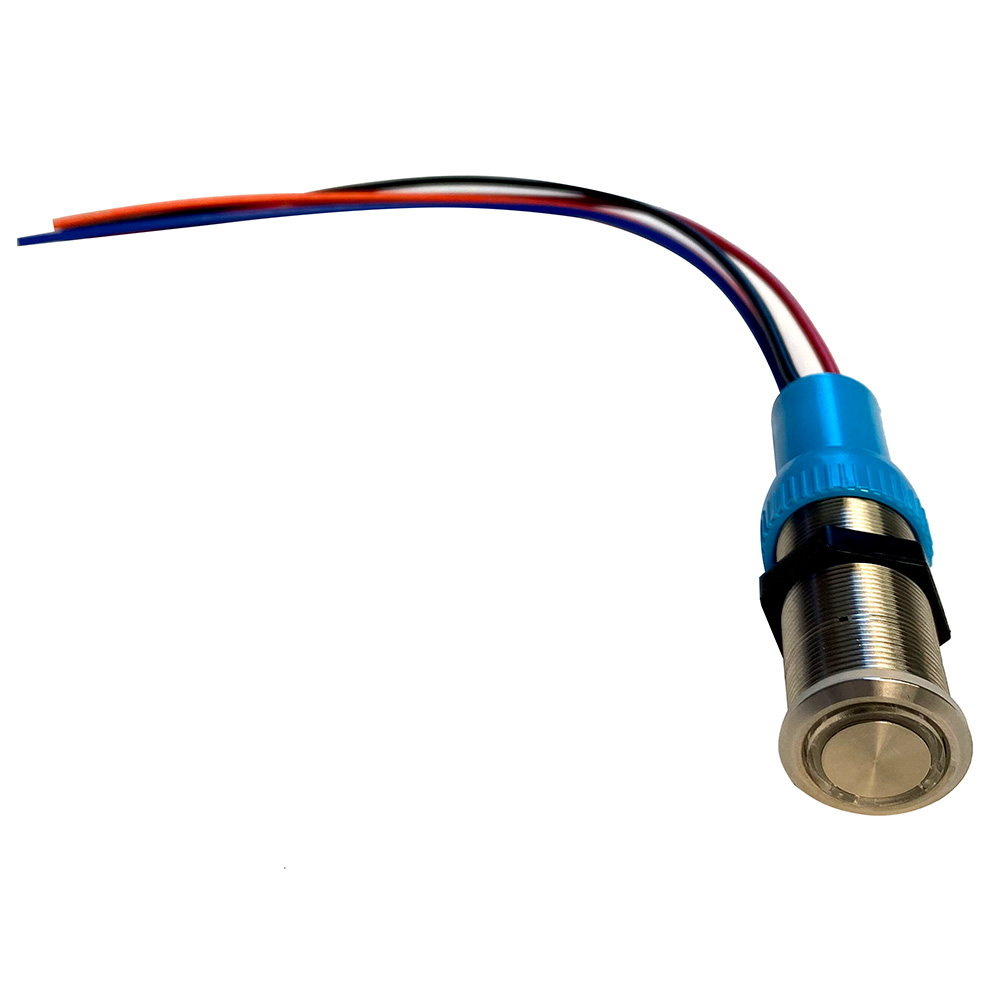

Bluewater 9057-3114-1 19mm Push Button Switch Nav/Anchor Blue/Green/Red LED

The Bluewater 9057-3114-1 is a premium 19mm push button switch designed for marine navigation and anchor control applications. This waterproof switch features a stainless steel plated metal button that adds modern styling to any boat dash or control panel.

Key Features:

• Nav/Anc contact configuration for navigation and anchor systems
• Multi-color LED illumination: Blue/Green in off/first on position, Red in second on position
• IP69K waterproof rating for superior protection against water and moisture
• Stainless steel construction for corrosion resistance in marine environments
• 12-inch pre-wired lead with color-coded contacts for easy installation
• 15A switching capacity at 12-24VDC
• 50,000 mechanical cycle life and 10,000 electrical cycle life

Technical Specifications:

• Button diameter: 19mm
• Switch rating: 15A at 12-24VDC
• Material: Stainless steel with waterproof gasket
• LED colors: Blue/Green (off/1st on), Red (2nd on)
• Maximum panel thickness: 6mm
• Rear marking: White dot

Installation is straightforward—drill a 19mm hole in your panel, connect the three color-coded switch contacts and two LED contacts, then secure with the included hardware. The IP69K rating ensures reliable operation even in the harshest marine conditions.
