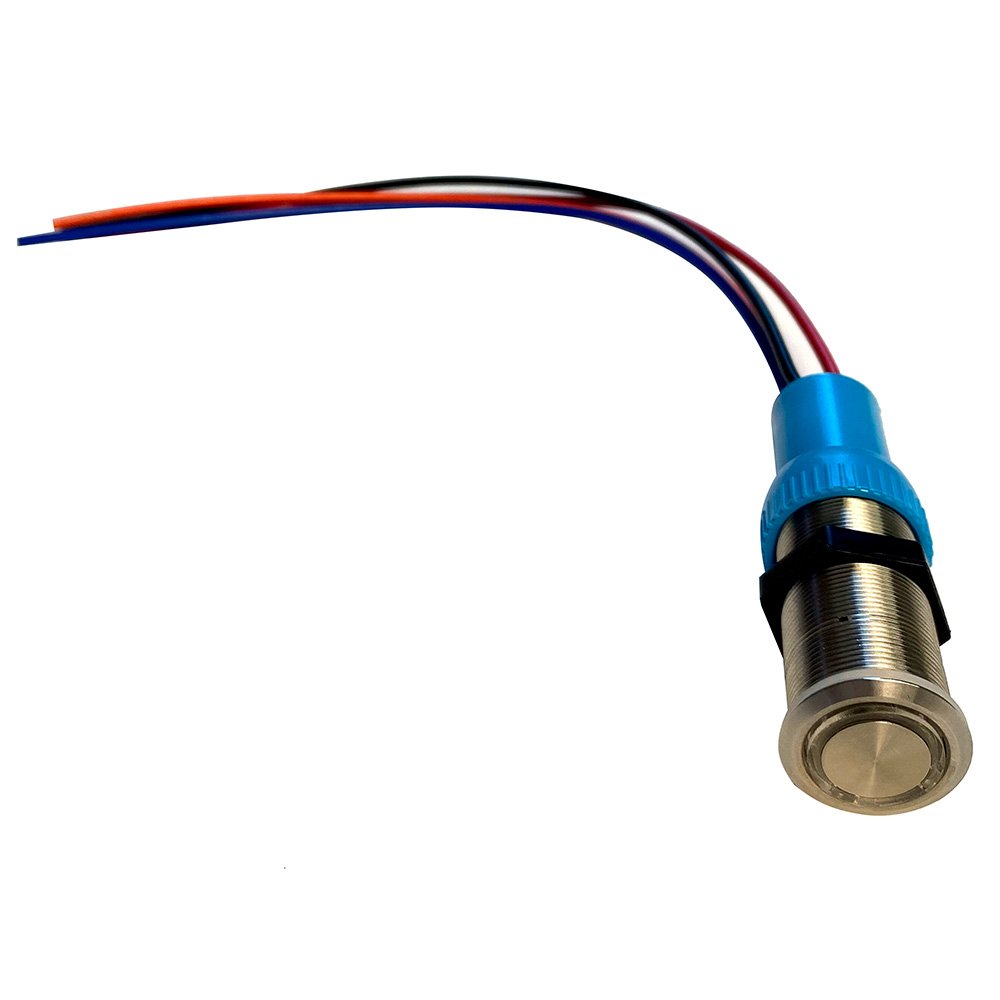

Bluewater 9057-3114-4 19mm In-Rush Push Button Switch Nav/Anchor Off/On/On Blue/Green/Red LED

The Bluewater 19mm In-Rush Push Button Switch provides versatile Nav/Anchor control with an Off/On/On configuration and multi-color LED indication. This marine-grade switch features a stainless steel plated metal button that adds modern styling to any dash while delivering reliable performance in harsh marine environments.

Waterproof Construction:

Engineered for marine applications, this switch features a robust body design combined with an included gasket to achieve an IP69K waterproof rating. The durable stainless steel construction resists corrosion and withstands demanding marine conditions.

Multi-Color LED Indication:

The switch provides clear visual feedback with intelligent LED lighting. In the off and first-on position, the switch illuminates with blue and green LED light for enhanced nighttime visibility. When activated to the second-on position, the LED changes to red, providing unmistakable confirmation that the function is active.

Key Features:

• Nav/Anchor Off/On/On switching function
• IP69K waterproof rating for maximum protection
• Blue/Green LED for off/first-on, Red LED for second-on position
• Stainless steel plated metal construction
• 15A rating at 12-24VDC
• 4-foot pre-wired lead with color-coded contacts
• 50,000 mechanical cycle life
• 10,000 electrical cycle life
• White dot rear marking for easy identification

Simple Installation:

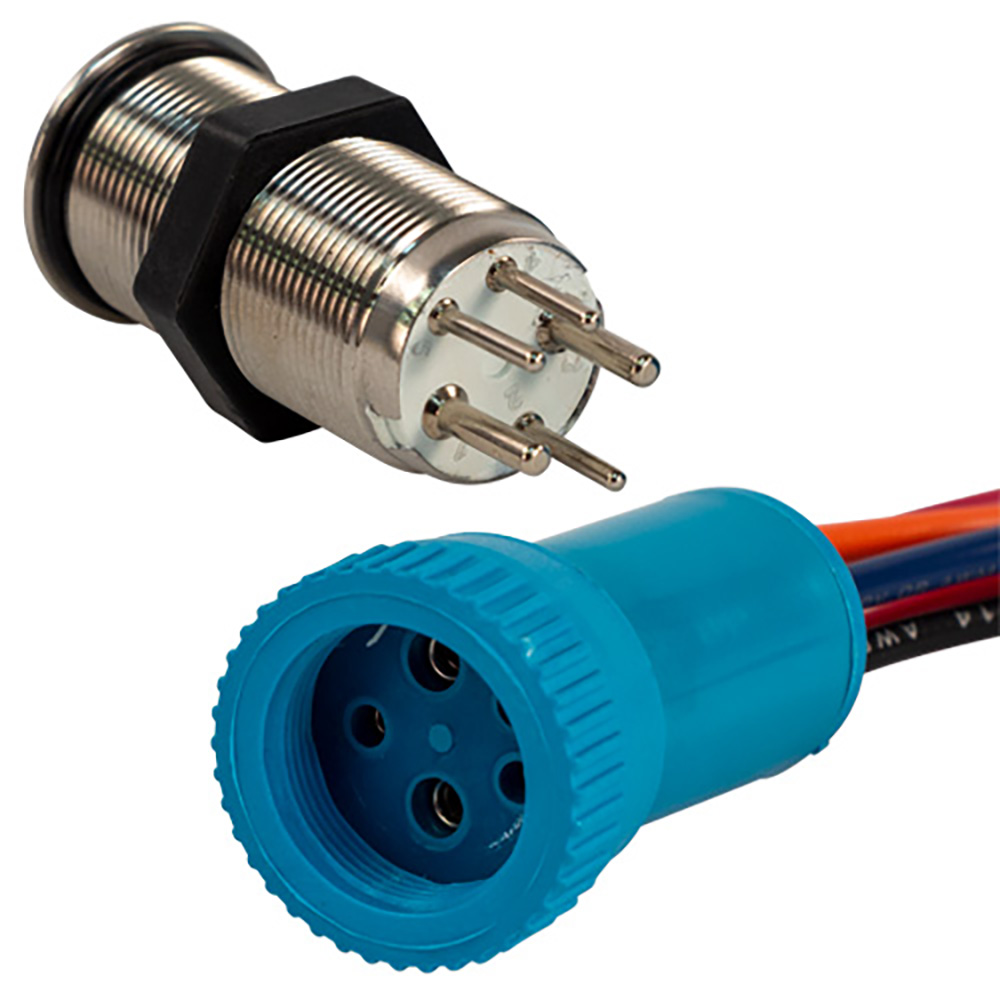

Installation requires drilling a 19mm hole in any material up to 6mm thick. The switch features 3 color-coded contacts for the button function and 2 contacts for the LED, making wiring straightforward and reducing installation errors.
