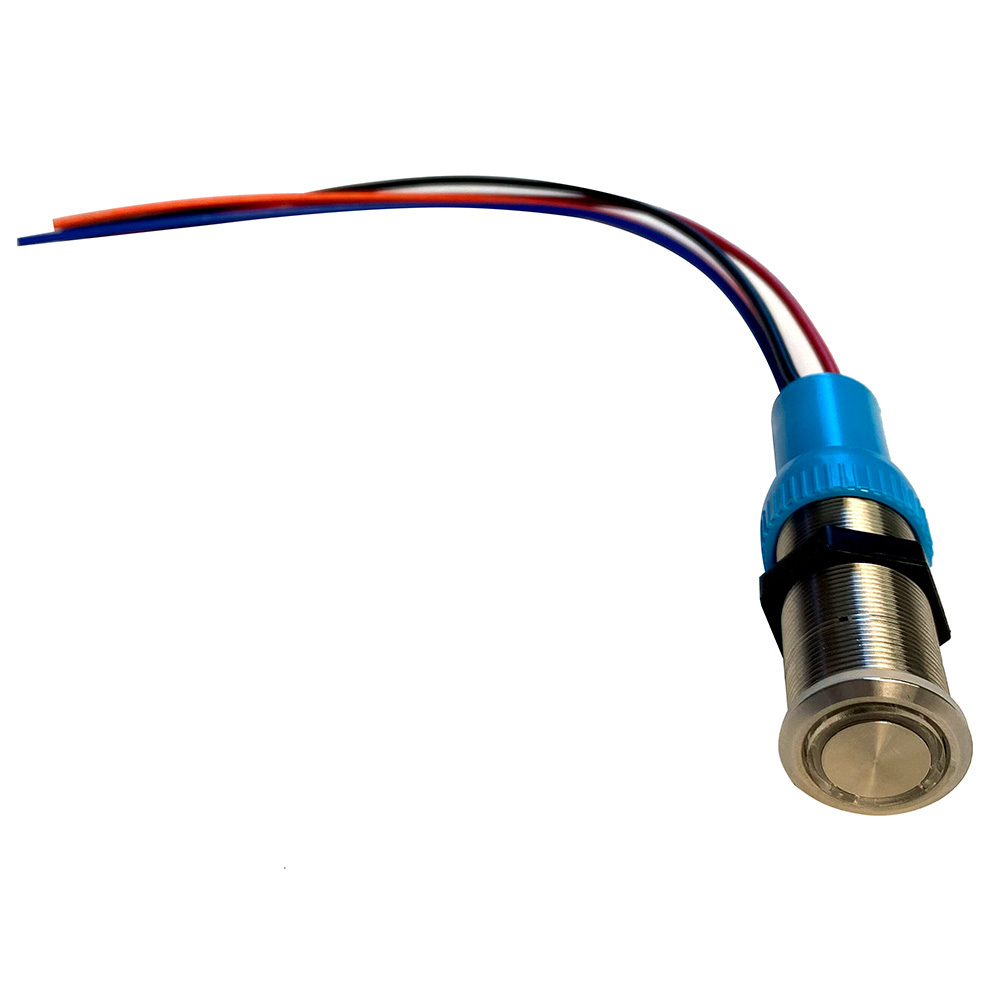

The Bluewater 22mm push button switch combines rugged durability with modern styling, making it an ideal upgrade for marine, RV, and automotive applications. This stainless steel plated momentary push button features a standard Off/On contact configuration with integrated LED lighting for clear status indication.
Waterproof Construction:
Engineered for harsh environments, this switch features a body design combined with an included gasket that achieves an IP69K waterproof rating—the highest level of protection against high-pressure, high-temperature washdown and dust ingress. The stainless steel construction resists corrosion in marine and outdoor conditions.
Dual-Color LED Indication:
Blue LED backlighting provides excellent visibility at night when the function is off, while the LED changes to red when activated, giving users unmistakable visual confirmation of the on status. This dual-color system eliminates any guesswork about switch position.
Key Features:
- 22mm mounting diameter fits standard panel cutouts
- 4-foot pre-wired lead for flexible installation
- 15A rating at 12-24VDC for versatile applications

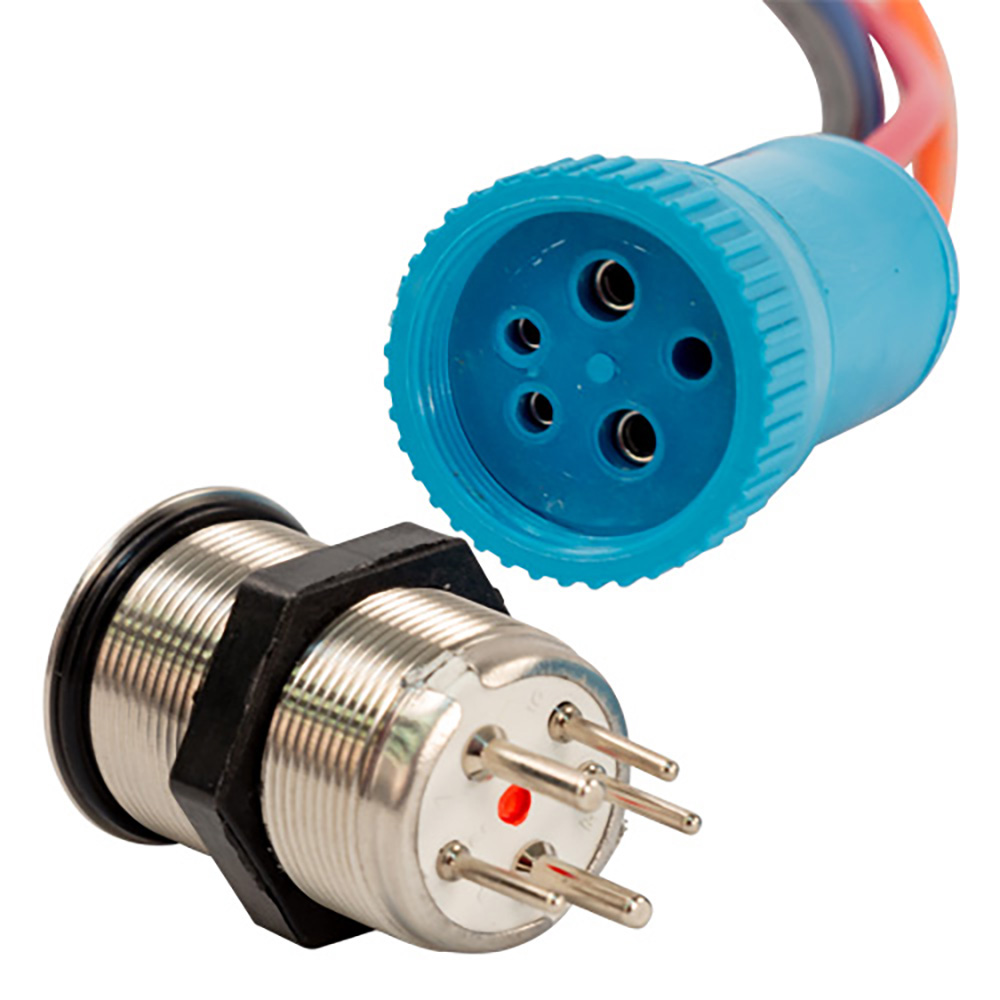

- Color-coded wiring with 3 button contacts and 2 LED contacts
- 50,000 cycle mechanical life and 10,000 cycle electrical life
- Installs in materials up to 6mm (0.24") thick
- Stainless steel construction with corrosion resistance
Installation:
Installation is straightforward—drill a 22mm hole in your dash or panel, connect the three color-coded contacts for the button function, then connect the two contacts for the LED lighting. The included gasket ensures a watertight seal when properly mounted.
This switch is perfect for controlling accessories, lighting circuits, bilge pumps, navigation equipment, or any 12-24VDC application requiring reliable, weatherproof operation with clear visual feedback.
