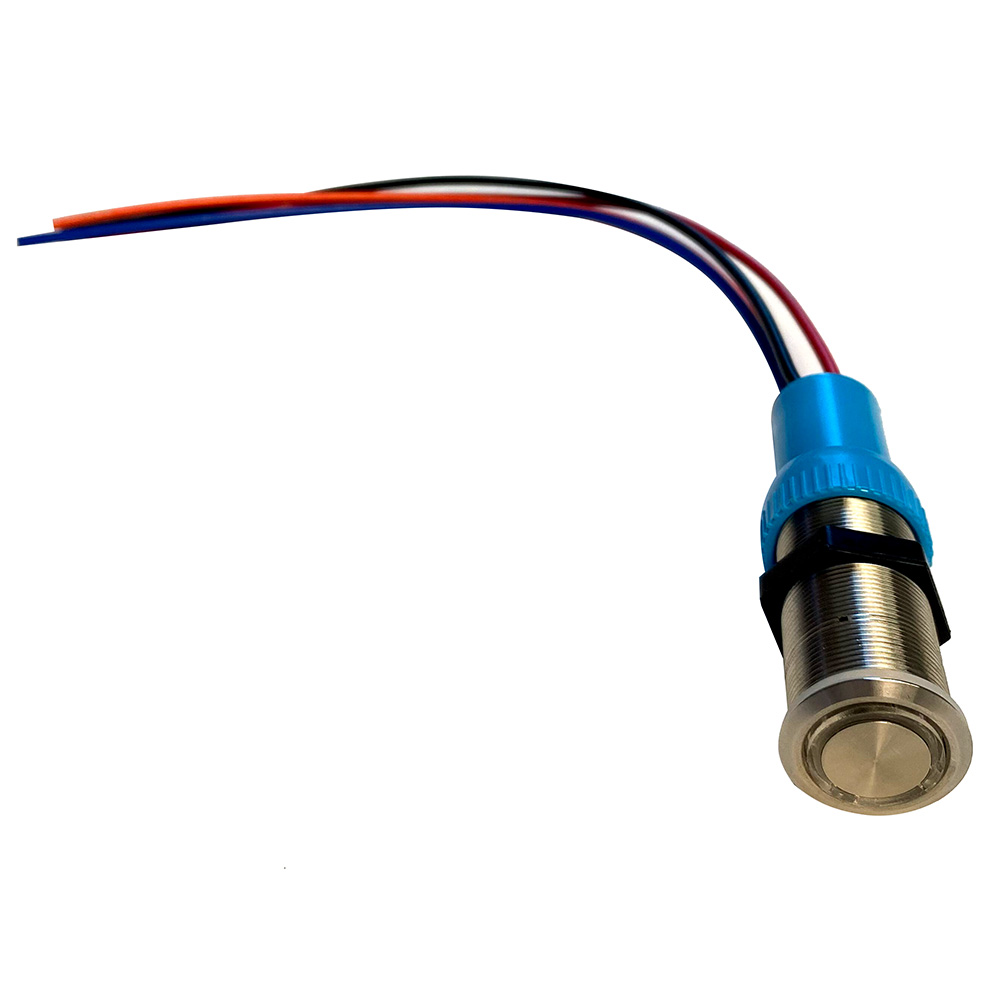

Bluewater 9059-2113-1 22mm Momentary Push Button Switch with LED

The Bluewater 22mm push button switch delivers professional-grade control with modern LED illumination for marine, RV, and automotive applications. This stainless steel switch features Off/(On) momentary contact operation, making it ideal for horn buttons, starter switches, or any application requiring temporary activation.

Key Features:

• Stainless steel construction with IP69K waterproof rating for extreme weather protection
• Dual-color LED illumination: blue backlight when off, red indicator when activated
• 22mm standard mounting size fits most dash panels up to 6mm thick
• 12-inch wire lead with color-coded connections for easy installation
• Heavy-duty 15A rating for 12-24VDC systems
• 50,000 mechanical cycle lifespan with 10,000 electrical cycles

Technical Specifications:

• Function: Off-(On) momentary contact
• Switch Rating: 15A at 12-24VDC
• Material: Stainless steel plated metal
• Waterproof Rating: IP69K with included gasket
• LED Colors: Blue (standby) / Red (activated)
• Lead Length: 1 foot (12 inches)
• Mounting Hole: 22mm diameter
• Maximum Panel Thickness: 6mm

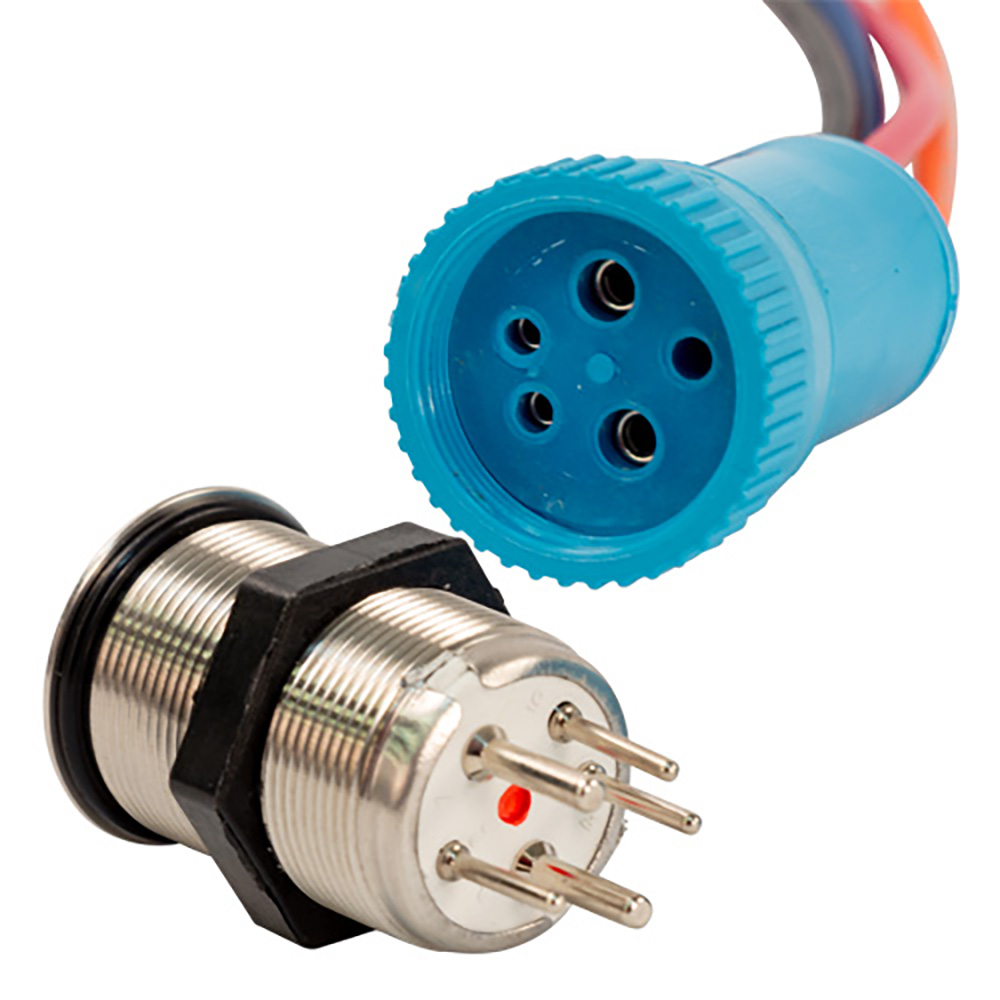

Installation requires drilling a 22mm hole and connecting three color-coded contacts for the switch function plus two contacts for LED power. The included gasket ensures a watertight seal when properly installed.
