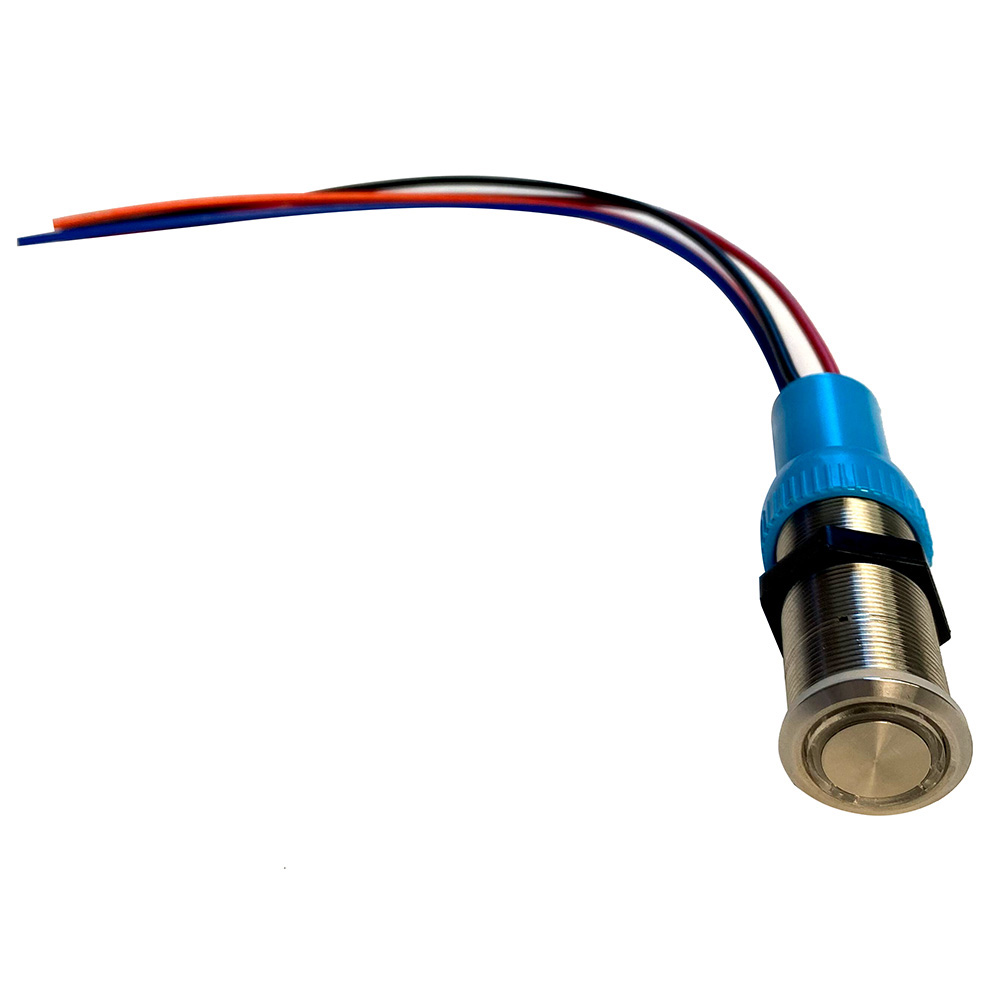

Bluewater 9059-2113-4 22mm Momentary Push Button Switch IP69K Waterproof Blue/Red LED

The Bluewater 9059-2113-4 is a professional-grade 22mm momentary push button switch designed for marine, automotive, and powersports applications. This premium switch features stainless steel construction with a modern aesthetic that enhances any control panel or dashboard.

Key Features:

• Off/(On) momentary contact operation for temporary circuit activation
• Dual-color LED illumination: blue when off, red when activated
• IP69K waterproof rating for maximum protection against water and dust intrusion
• Stainless steel construction with corrosion-resistant finish
• 4-foot pre-wired lead with color-coded connections for easy installation
• Rated for 15A at 12-24VDC for reliable performance
• 50,000 mechanical cycles and 10,000 electrical cycles lifespan

Technical Specifications:

• Button diameter: 22mm
• Switch function: Off-(On) momentary contact
• Voltage rating: 12-24VDC
• Current rating: 15A
• Material: Stainless steel with gasket seal
• LED colors: Blue (off) / Red (on)
• Wire length: 4 feet with 5 color-coded contacts
• Maximum panel thickness: 6mm (0.236")

Installation:

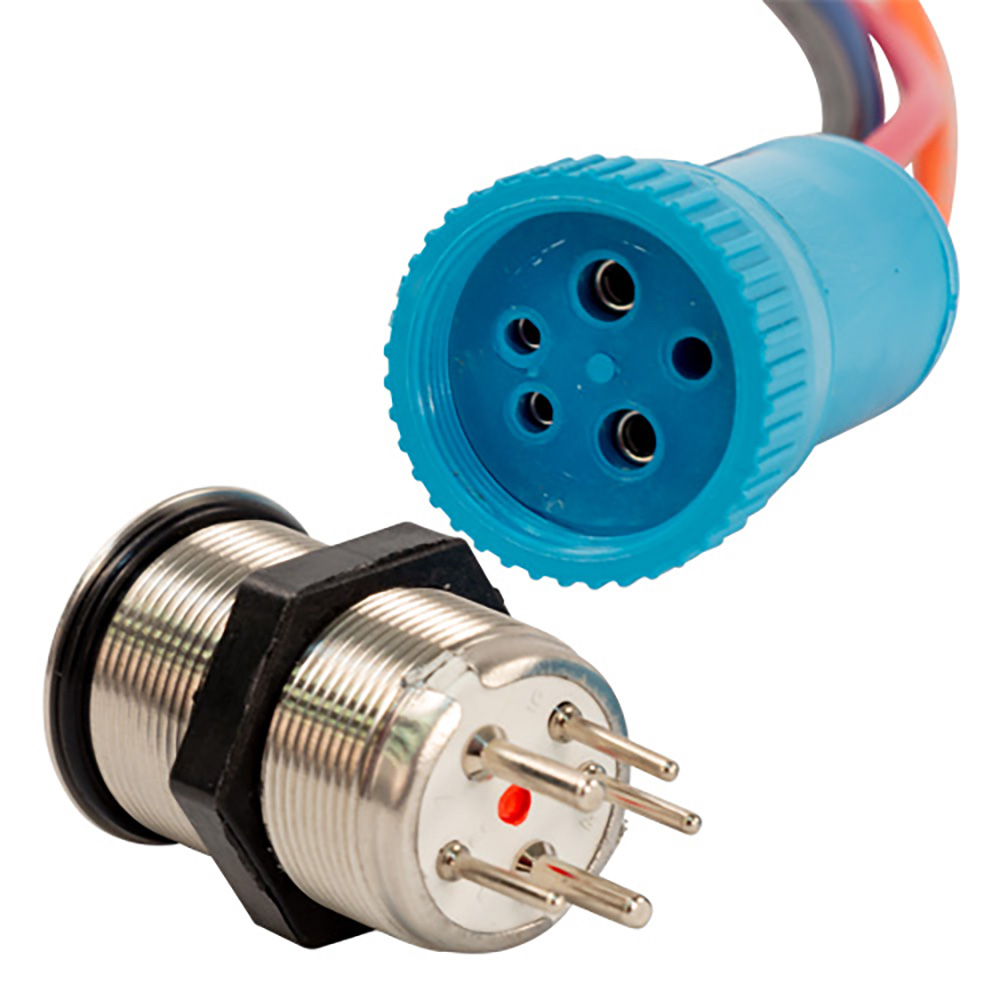

Installation requires a 22mm diameter hole drilled in any panel material up to 6mm thick. The switch includes three color-coded contacts for the button circuit and two additional contacts for LED power. The included gasket ensures a waterproof seal when properly installed.

This switch is ideal for controlling accessories, lighting, electronics, and equipment in harsh marine and outdoor environments where reliable waterproof operation is essential.
