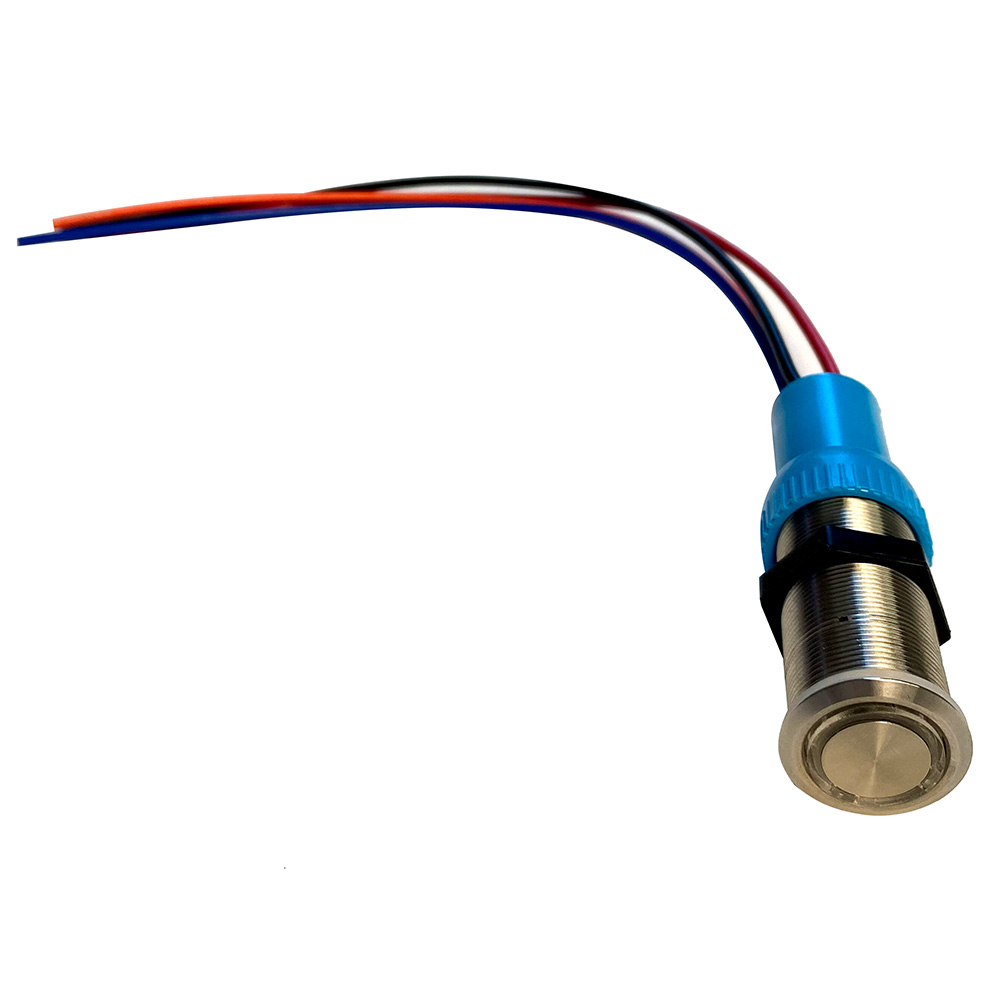

Bluewater 9059-2123-1 22mm Waterproof Push Button Switch Momentary LED

The Bluewater 9059-2123-1 is a premium 22mm push button switch featuring a stainless steel plated metal construction and IP69K waterproof rating. This double momentary contact switch delivers Off-(On)-(On) functionality, making it ideal for marine, automotive, and powersports applications where temporary activation is required.

Key Features:

• Stainless steel plated metal button with modern aesthetic design
• IP69K waterproof rating with included sealing gasket
• Multi-color LED illumination: Blue/Green for Off/1st On position, Red for 2nd On position
• Double momentary contact configuration for versatile control applications
• 12-inch pre-wired lead for convenient installation
• Fits panels up to 6mm thick with standard 22mm mounting hole

Technical Specifications:

• Switch Function: Off-(On)-(On) double momentary contact
• Mounting Diameter: 22mm
• Switch Rating: 15A at 12-24VDC
• LED Colors: Blue/Green (off/1st position), Red (2nd position)
• Material: Stainless steel plated
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles
• Maximum Panel Thickness: 6mm
• Lead Length: 12 inches
• Waterproof Rating: IP69K

Installation:

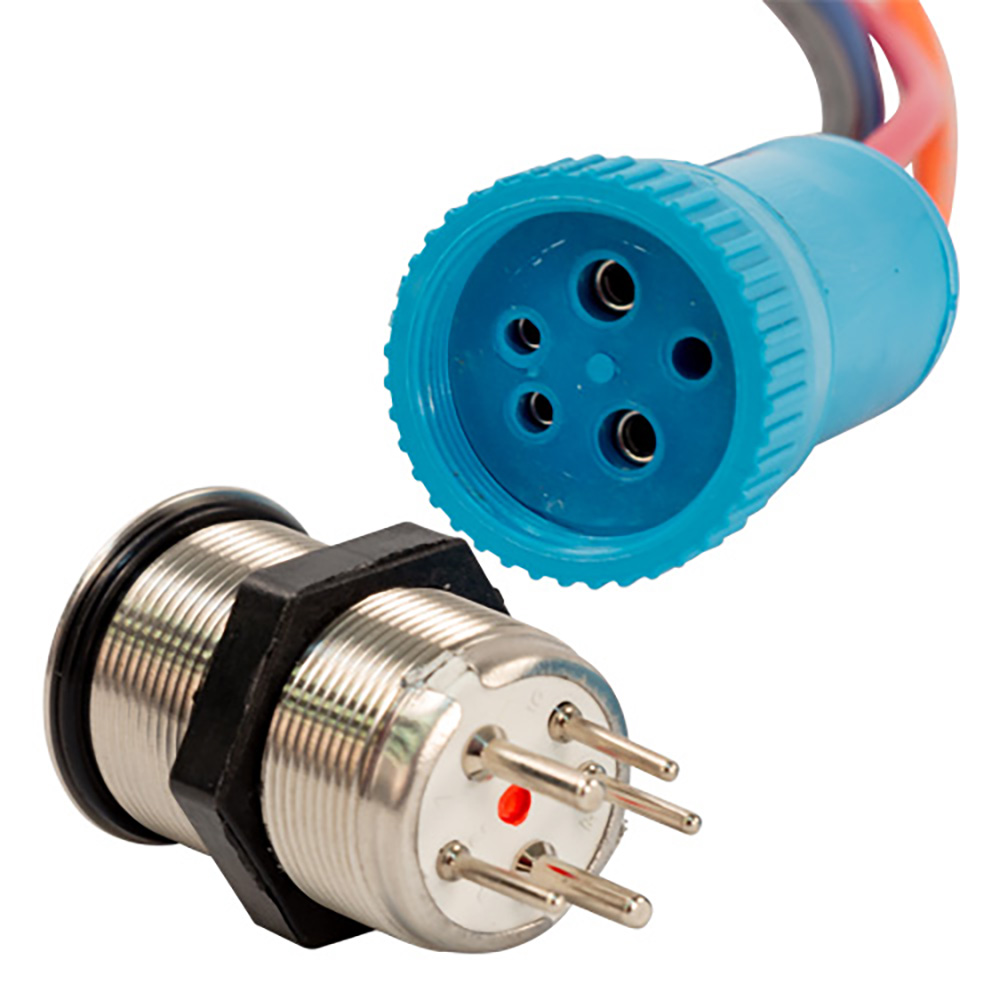

Installation requires a 22mm diameter hole drilled into the mounting surface. The switch features color-coded wiring with 3 contacts for the button function and 2 additional contacts for LED illumination, simplifying the connection process.

This momentary push button switch is perfect for dash panels, control boxes, and instrument panels in marine vessels, RVs, off-road vehicles, and custom automotive applications where reliable waterproof switching is essential.
