Bluewater 9059-3114-4 22mm Push Button Switch Nav/Anchor Contact Waterproof LED

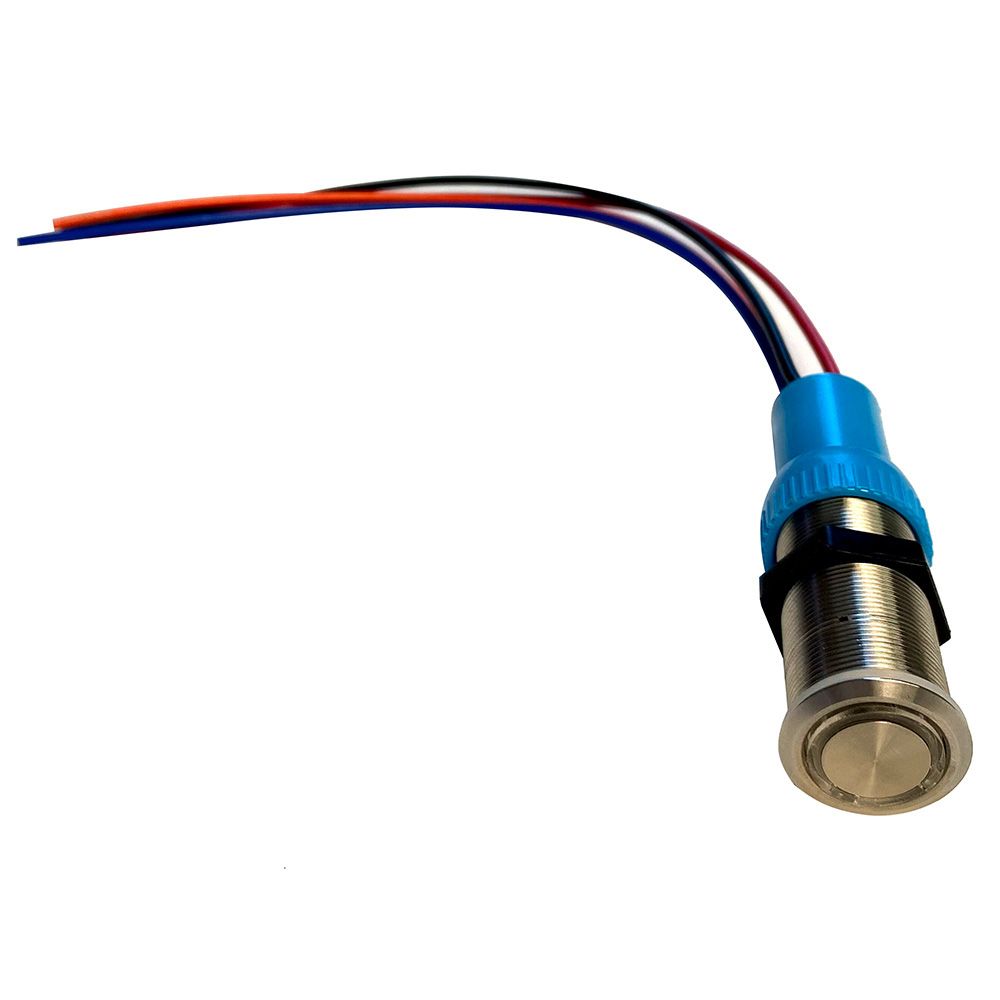

The Bluewater 9059-3114-4 is a premium 22mm push button switch designed for marine navigation and anchor control applications. This waterproof switch features a stainless steel plated metal button with modern styling that enhances any helm or dashboard installation.

Advanced LED Illumination System:

This Nav/Anchor contact switch features a sophisticated tri-color LED system for clear status indication. The button illuminates blue and green in the first "on" position, then changes to red in the second "on" position, providing unmistakable visual confirmation of the current operating mode. The intuitive LED feedback ensures safe operation in all conditions.

Superior Weatherproof Protection:

Engineered for harsh marine environments, this switch carries an IP69K waterproof rating—the highest level of protection against water and dust ingress. The specially designed body and included gasket create a robust seal that withstands high-pressure washdowns, saltwater spray, and extreme weather conditions.

Key Features:

• 22mm diameter stainless steel button with corrosion-resistant finish
• Tri-color LED indication: Blue/Green for first position, Red for second position
• IP69K waterproof rating for maximum environmental protection
• 4-foot pre-wired lead with color-coded connections
• White dot rear marking for easy identification
• 15A rating at 12-24VDC for versatile electrical compatibility
• 50,000 mechanical cycle life and 10,000 electrical cycle life
• Fits panels up to 6mm thick

Simple Installation:

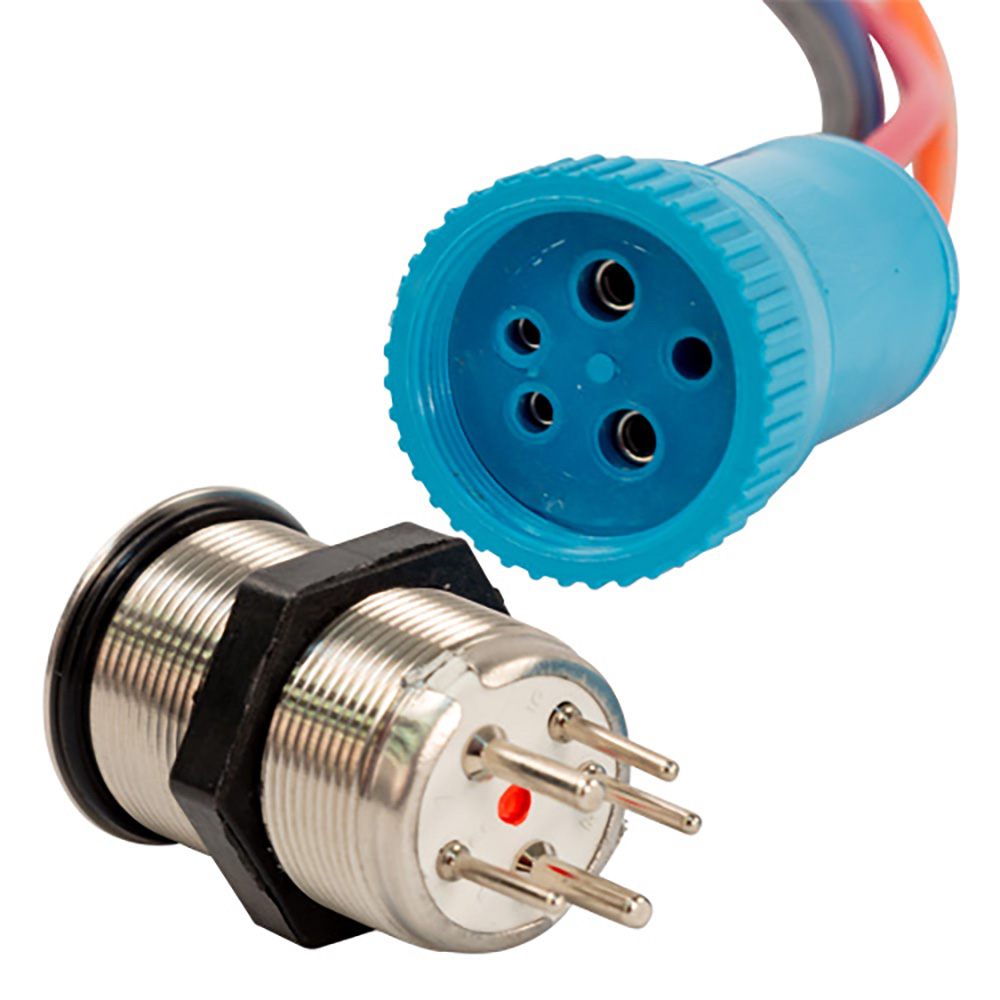

Installation requires only a 22mm diameter hole drilled in any material up to 6mm thick. The switch includes color-coded wiring for straightforward connection: three contacts control the button function while two additional contacts power the LED illumination system.

This professional-grade switch is ideal for controlling navigation lights, anchor windlasses, bilge pumps, and other dual-function marine electrical systems where clear status indication is essential.
