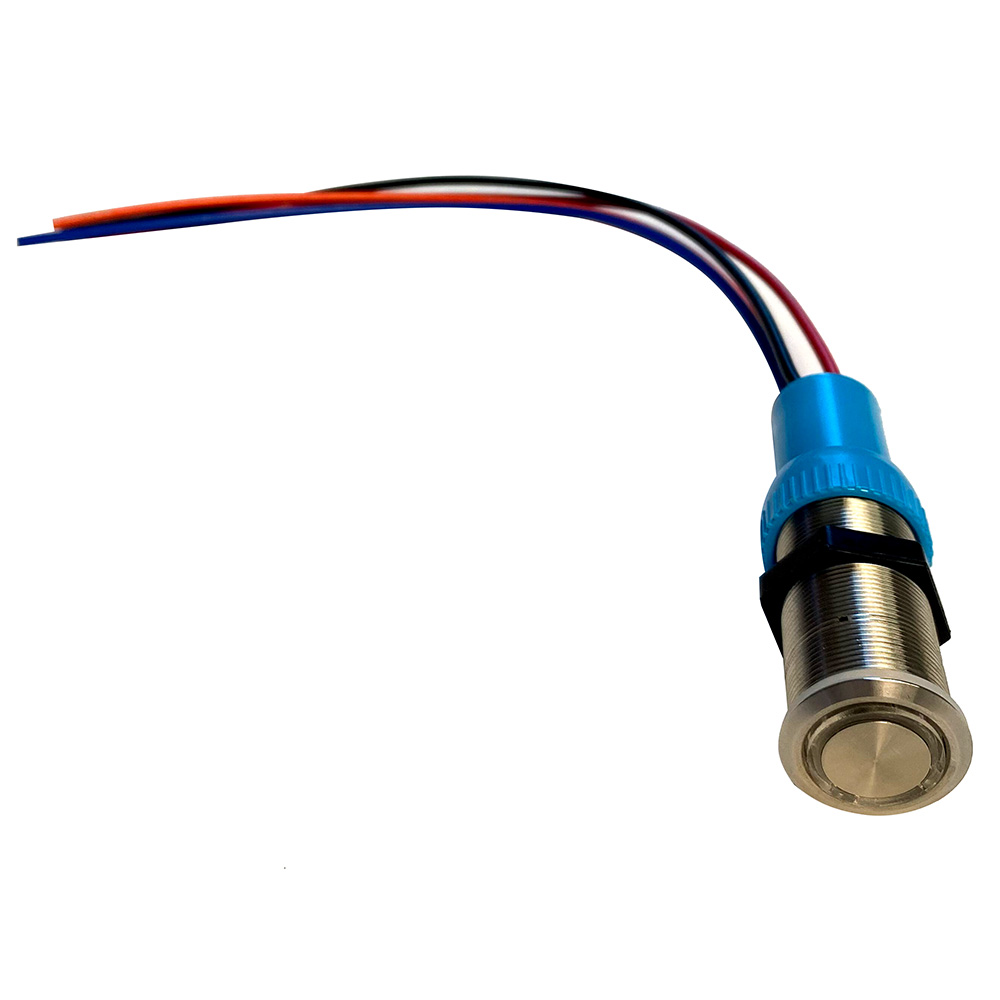

Bluewater 9057-1113-1 19mm Push Button Switch Off/On Blue/Red LED

The Bluewater 9057-1113-1 is a premium 19mm push button switch designed for marine, automotive, and powersports applications. This illuminated switch features a stainless steel plated metal button that adds a modern, professional appearance to any dash or control panel.

Key Features:

• Standard Off/On momentary contact operation
• Dual-color LED illumination: blue when off, red when on for clear status indication
• IP69K waterproof rating for reliable performance in wet environments
• Stainless steel construction for corrosion resistance
• 12-inch pre-wired lead for easy installation
• 15A switching capacity at 12-24VDC
• 50,000 mechanical cycles and 10,000 electrical cycles rated life

Specifications:

• Button diameter: 19mm
• Function: Off-On standard contact
• LED colors: Blue (off) / Red (on)
• Switch rating: 15A at 12-24VDC
• Material: Stainless steel
• Waterproof rating: IP69K
• Lead length: 1 foot (12 inches)

Installation:

Installation requires drilling a 19mm hole in any material up to 6mm (approximately 1/4 inch) thick. The switch includes three color-coded contacts for the button circuit and two additional contacts for the LED lighting. An included gasket ensures a waterproof seal when properly installed.
