Bluewater 9059-1113-1 22mm Push Button Switch Off/On Blue/Red LED

The Bluewater 9059-1113-1 is a premium 22mm push button switch designed for marine, automotive, and powersports applications. This stainless-steel plated metal button adds a modern, professional appearance to any dashboard or control panel while delivering reliable Off/On switching functionality.

Waterproof Design:

Engineered for harsh environments, this switch features a robust body design with an included gasket that achieves an IP69K waterproof rating—the highest level of protection against water and dust ingress. This makes it ideal for boats, marine vessels, RVs, and off-road vehicles exposed to wet conditions.

LED Illumination:

The switch includes dual-color LED backlighting for superior visibility and status indication. The blue LED illuminates when the function is off, while the red LED activates when switched on, providing clear visual feedback day or night.

Key Features:

• 22mm diameter mounting size with standard Off/On contact configuration
• Stainless steel construction for durability and corrosion resistance
• IP69K waterproof rating protects against water, dust, and debris
• Blue/red dual-color LED illumination for status indication

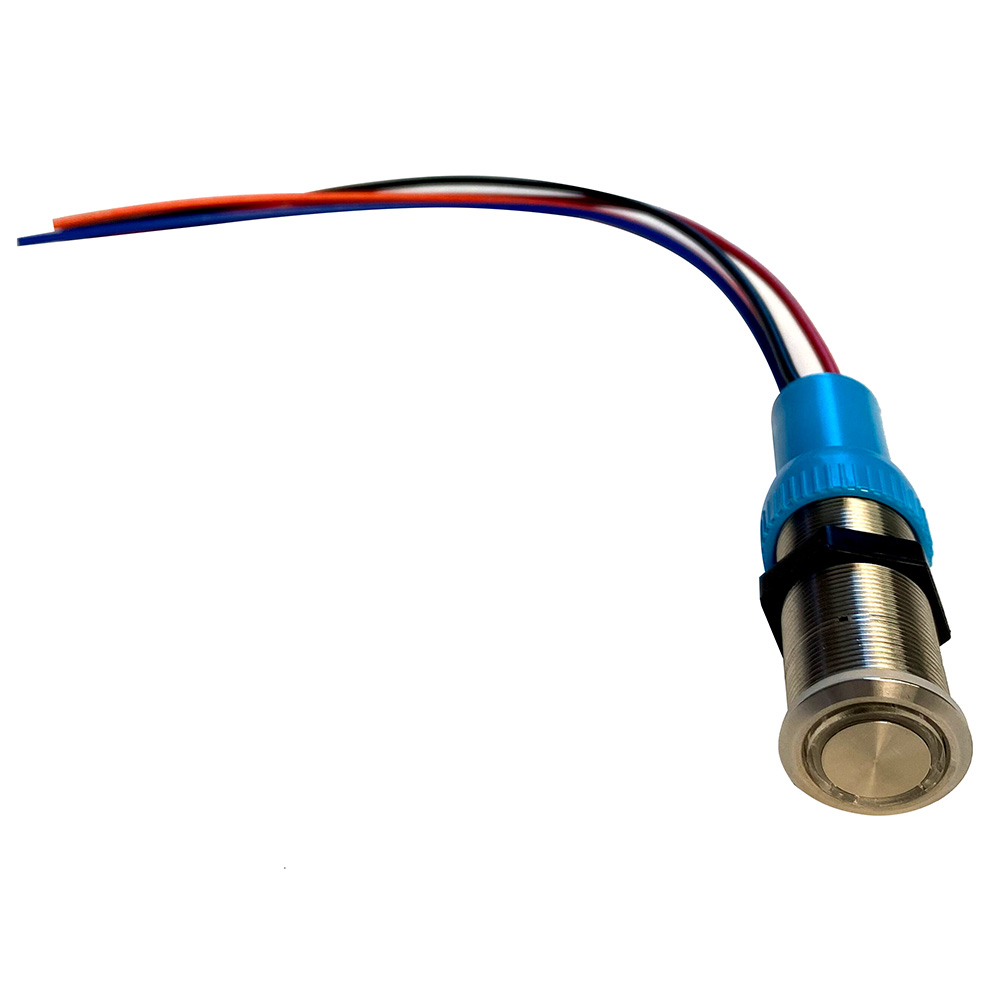

• 12-inch wire lead with color-coded contacts for easy installation
• 15A switching capacity at 12-24VDC
• 50,000 mechanical cycles and 10,000 electrical cycles rated life
• Fits panels up to 6mm (1/4") thick

Installation:

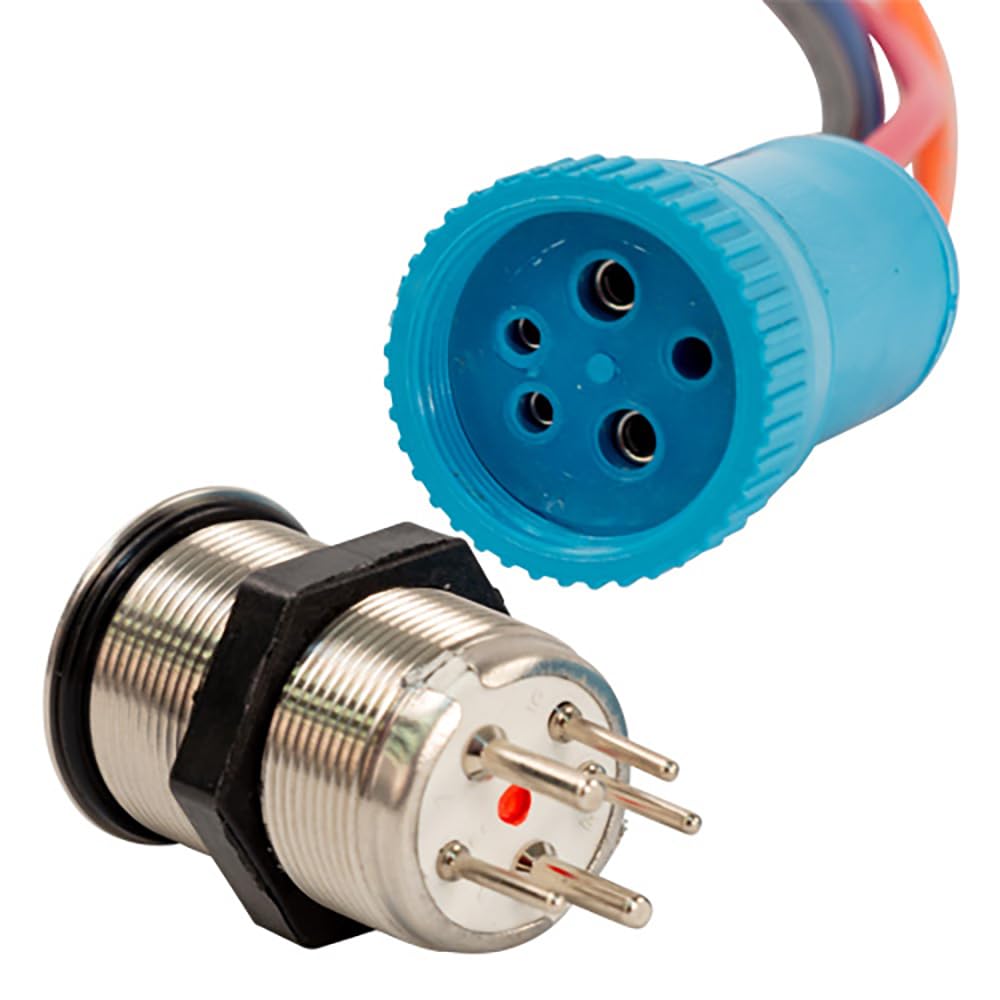

Installation requires drilling a 22mm hole in your dashboard or panel. The switch includes 3 color-coded contacts for the button function and 2 additional contacts for the LED power. Simply wire according to the color coding, insert the switch, and secure with the included hardware.

Package Includes:

• One 22mm push button switch
• Waterproof gasket
• 12-inch pre-wired lead with color-coded connectors
