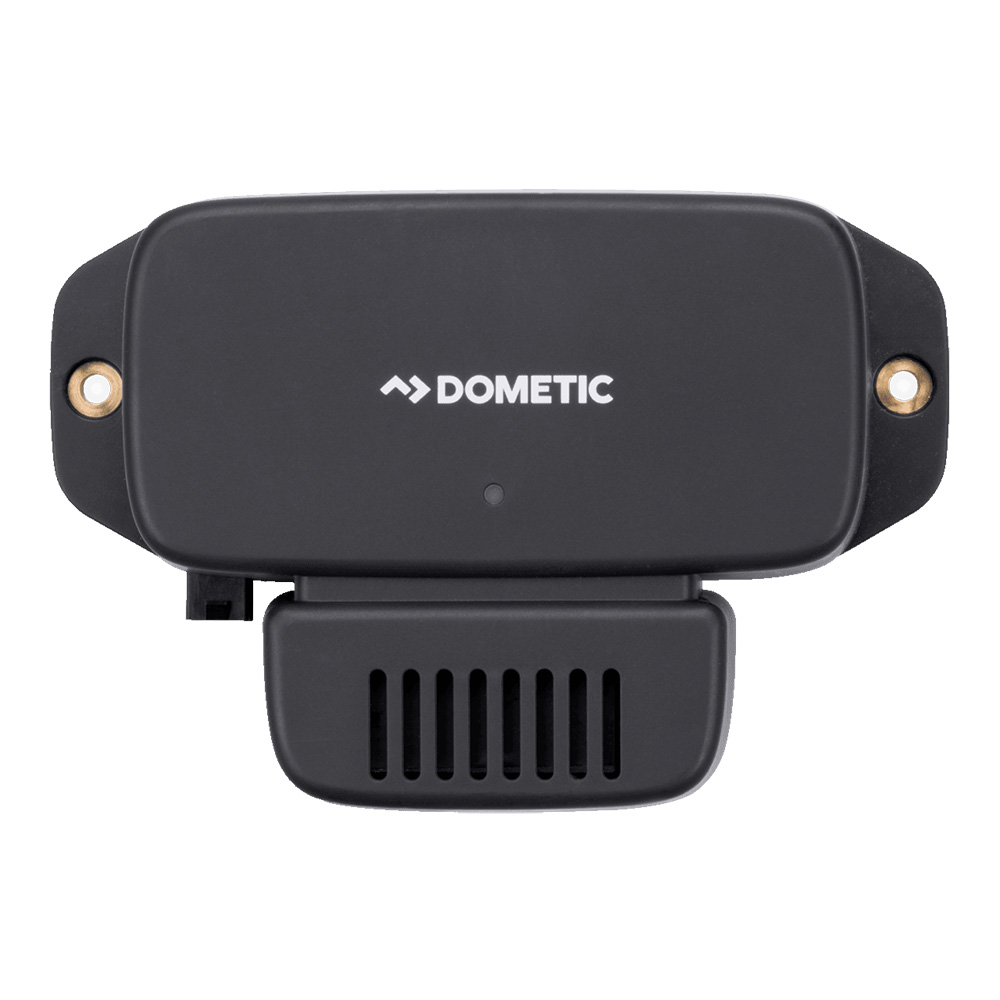

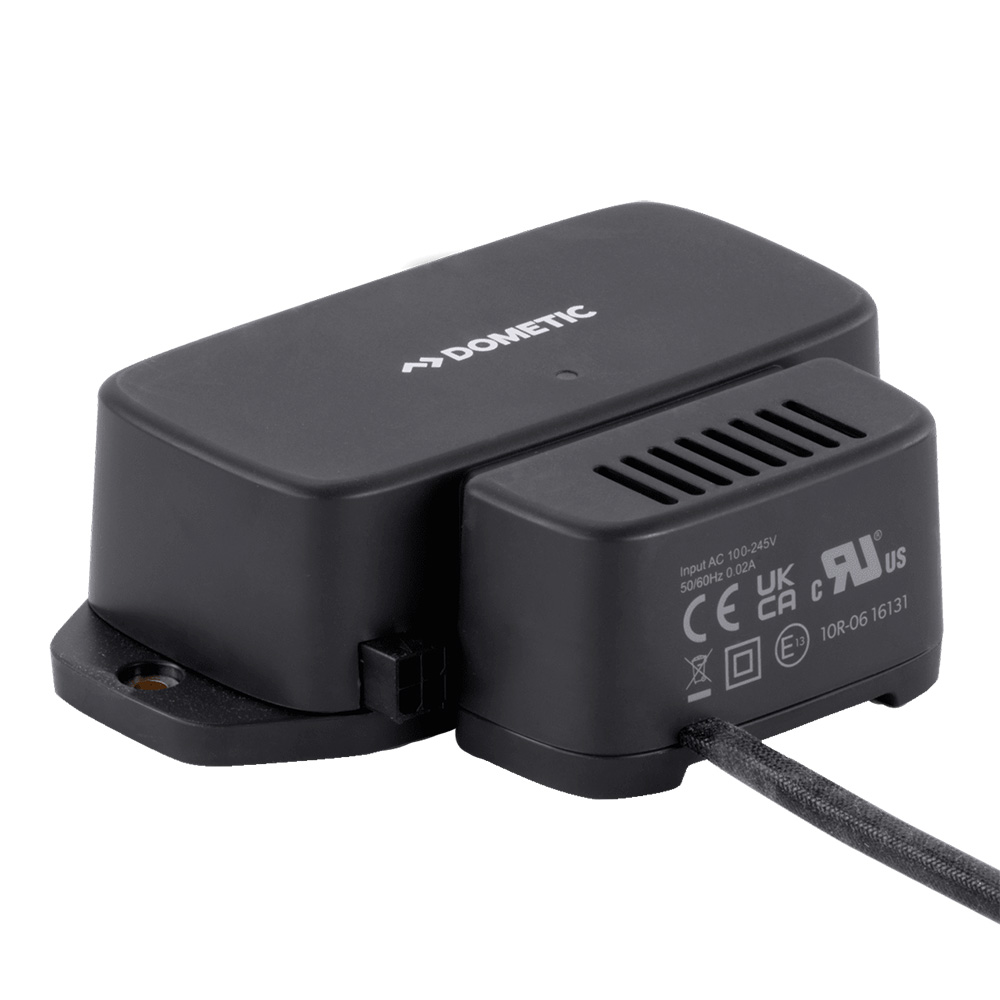

The Dometic Breathe 4500 Air Purifier is an advanced ionization upgrade kit designed to transform your marine air conditioning system into a comprehensive air purification solution. Using state-of-the-art bipolar ionization technology, this compact unit effectively reduces dust particles, bacteria, mold buildup, and unpleasant odors—ensuring you and your crew breathe clean, healthy air aboard your vessel.
Advanced CleanAir Ionization Technology:
The Dometic Breathe 4500 employs Dometic's proprietary CleanAir technology, which generates both negative and positive ions through needle-point brushes that interact with oxygen and moisture in the air. These ions provide three critical benefits: they attack the core structure of bacteria, viruses, and mold to reduce biological contaminants; they attract and bind airborne dust particles into larger clumps that are easily captured by your AC filter; and they break down volatile organic compounds at the molecular level, eliminating chemical odors and waste smells.
Flexible Installation Options:
Measuring just 5.45" × 3.78" × 1.59", this compact air purification kit can be installed in multiple locations including directly on the fan, within ductwork, in transition boxes, or behind air outlet grilles. Installation is straightforward: mount the aluminum base unit using the included bolts or double-sided adhesive tape, drill two holes spaced 2-3 inches apart for the rubberized ionizer brushes, and connect to power. The wide input voltage range of 100-240 VAC ensures compatibility with most Dometic rooftop air conditioners, including FreshJet 1100, 1500, 1700, 2000, 2200, 3000, and 3200 models.
Low-Maintenance Operation:
Unlike filter-based purification systems, the Breathe 4500 requires no consumables or replacement parts—simply clean the ionizer brushes periodically. The integrated LED pilot lamp provides clear visual confirmation that the unit is operating. For energy efficiency, connect the purifier directly to your fan's power source so ions are only generated when the air conditioning system is actively running.
Key Features:
- Bipolar ionization technology eliminates bacteria, viruses, mold, dust, and odors
- Compatible with Dometic FreshJet 1100, 1500, 1700, 2000, 2200, 3000, and 3200 air conditioners
- High-quality aluminum construction with corrosion-resistant mounting hardware
- No filters or consumables required—maintenance-free ionizer brushes
- Universal power supply: 100-240 VAC, 50/60 Hz input
- Compact dimensions: 5.45" W × 3.78" D × 1.59" H
- Multiple mounting options for flexible installation
- LED indicator light confirms operation
- Complete kit includes air purifier, mounting screws, double-sided tape, and connection cable
- Certified: ECE R10, UKCA, CB, EMC, UL
Technical Specifications:
- Model: Breathe 4500 Marine
- Input Voltage: 100-240 VAC
- Input Frequency: 50/60 Hz
- Product Dimensions: 138.5 mm W × 96 mm D × 40.5 mm H (5.45" × 3.78" × 1.59")
- Net Weight: 0.36 kg (0.79 lbs)
- EAN-13: 4015704293562
