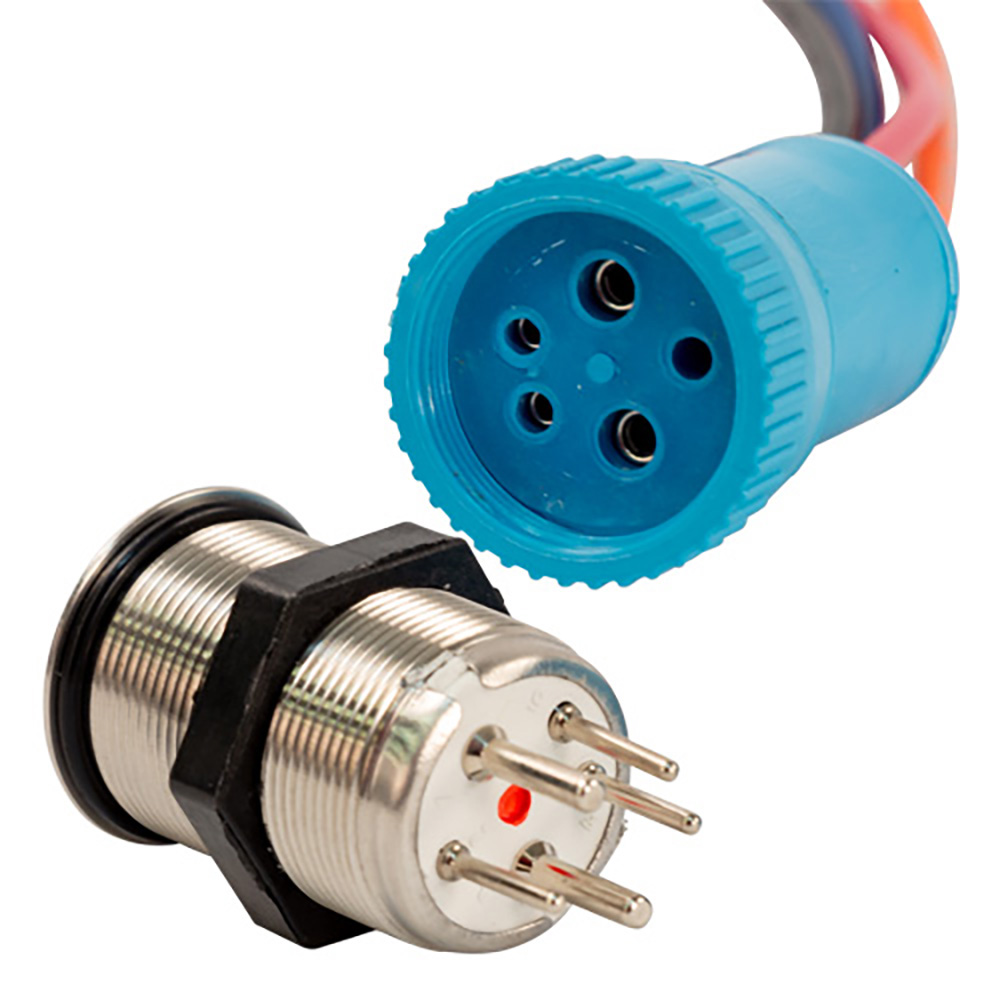

Bluewater 9059-3113-4 22mm Push Button Switch Off/On/On Tri-Color LED

The Bluewater 9059-3113-4 is a premium 22mm illuminated push button switch designed for marine, automotive, and powersports applications. Featuring a stainless steel plated metal construction and an Off/On/On momentary contact configuration, this switch combines durability with modern styling to upgrade any dash panel.

Key Features:

• Off/On/On standard contact configuration with tri-color LED indication
• Blue/Green LED illumination in off and first on position, red LED in second on position
• IP69K waterproof rating with included gasket for complete weather protection
• Stainless steel construction resists corrosion in harsh marine environments

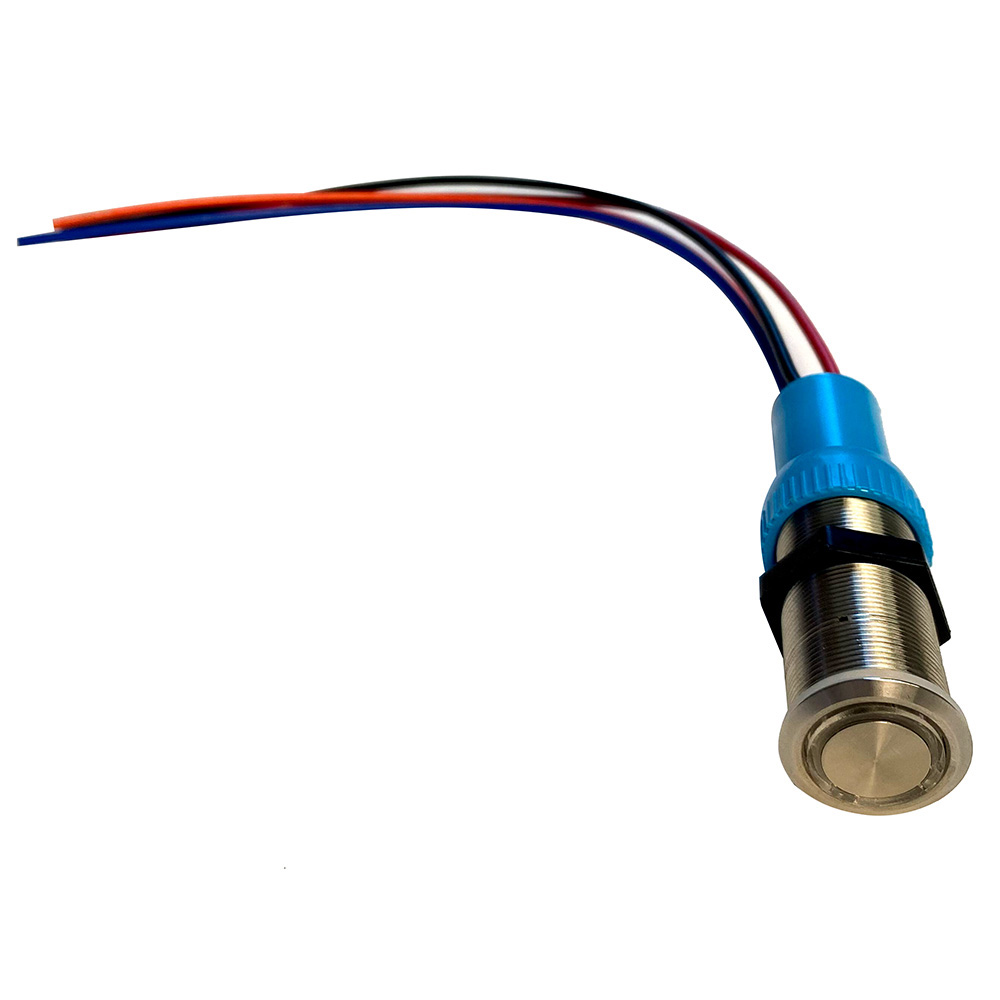

• 4-foot pre-wired lead with color-coded contacts for easy installation
• Rated for 15A at 12-24VDC applications
• 50,000 mechanical cycle life and 10,000 electrical cycle life

Specifications:

• Button diameter: 22mm
• Maximum panel thickness: 6mm
• Switch rating: 15A/12-24VDC
• Material: Stainless steel plated metal
• LED colors: Blue/Green (off/1st on), Red (2nd on)
• Lead length: 4 feet
• Waterproof rating: IP69K

Installation:

Installation requires drilling a 22mm hole in any panel material up to 6mm thick. The switch features 3 color-coded contacts for the button function and 2 additional contacts for the LED illumination. The included gasket ensures a waterproof seal when properly installed.
