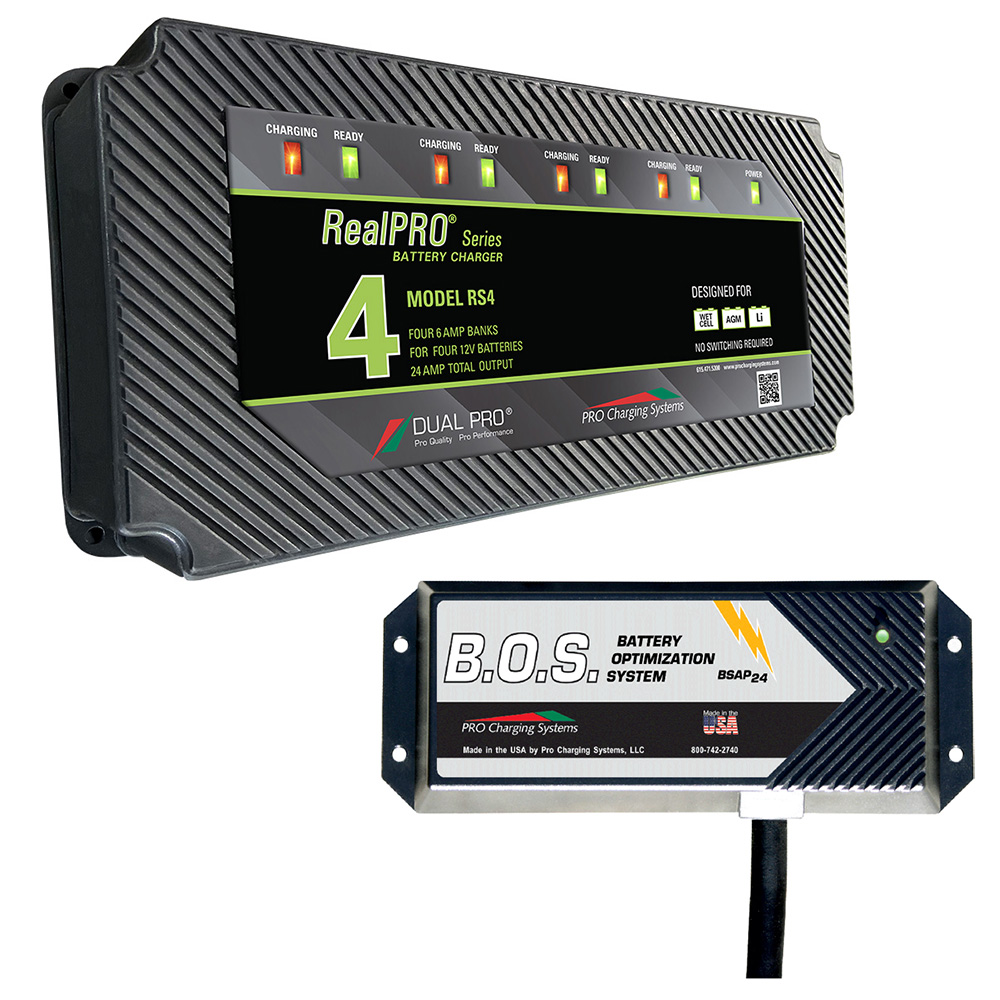

Dual Pro RS4/BOS12V2 4-Bank Battery Charger with 2-Bank B.O.S. System

The Dual Pro RS4/BOS12V2 is a complete battery management solution combining a 4-bank, 24-amp charger with an advanced 2-bank Battery Optimization System (B.O.S.). This kit includes the RealPRO Series RS4 charger and the BOS12V2 balancing system, designed to maximize battery performance and longevity in multi-battery applications.

Battery Optimization System (B.O.S.) - 2-Bank:

The B.O.S. actively shuttles energy between batteries wired in series to maintain equal voltage levels before, during, and after charging. Batteries in a pack naturally become unbalanced over time, and the pack's performance is limited by its weakest battery. This is especially problematic in marine applications where trolling motor batteries power peripherals or assist cranking batteries. The B.O.S. uses a Battery Selection and Prediction (BSAP-24) algorithm to identify which battery needs additional energy and automatically balances the pack, extending battery life and increasing runtime up to four times.

B.O.S. Key Features:

• 12V configuration supporting up to six batteries in series
• BSAP-24 algorithm for intelligent battery balancing
• Transfer rate up to 7.5 amps
• Self-powered with less than 1mA sleep mode
• Compatible with any battery chemistry including wet cell and AGM

RealPRO Series RS4 Charger - 4-Bank, 24-Amp:

The RS4 delivers reliable, fully automatic charging for four independent battery banks. Each bank operates independently with automatic charging and maintenance modes, making it ideal for bass boats, pontoons, runabouts, RVs, golf carts, and ATVs. The charger features rugged, waterproof construction suitable for both freshwater and saltwater environments.

RS4 Charger Features:

• Four independent charging banks, 24 amps total output
• Approved for wet cell and AGM batteries
• Fully automatic operation with battery maintenance mode
• LED indicators display each battery's charge status
• Waterproof, ignition-protected design meets ISO 8846 marine standards
• Reverse polarity protection with no installation restrictions
• Universal input: 100-240 VAC, 50/60Hz
• 5-foot DC charge cables and 3-foot AC power cord
• Two-year warranty
• US Coast Guard approved (33 CFR 183.410)
• FCC 15 Parts A and B compliant

Applications:

This complete system is ideal for marine vessels, golf carts, ATVs, RVs, automobiles, aerial equipment, solar power systems, and any application requiring multiple batteries in series. The combination of advanced charging and active balancing technology ensures maximum battery performance and significantly extends service life.
