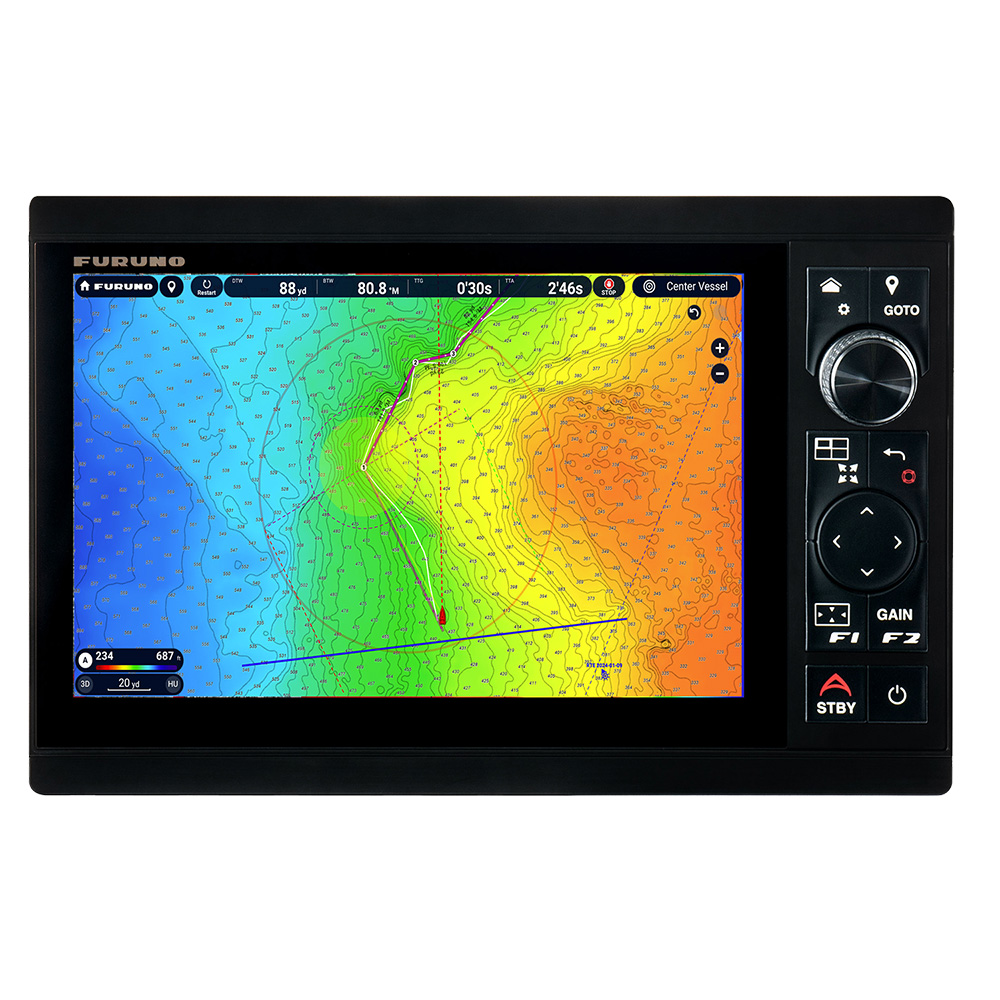

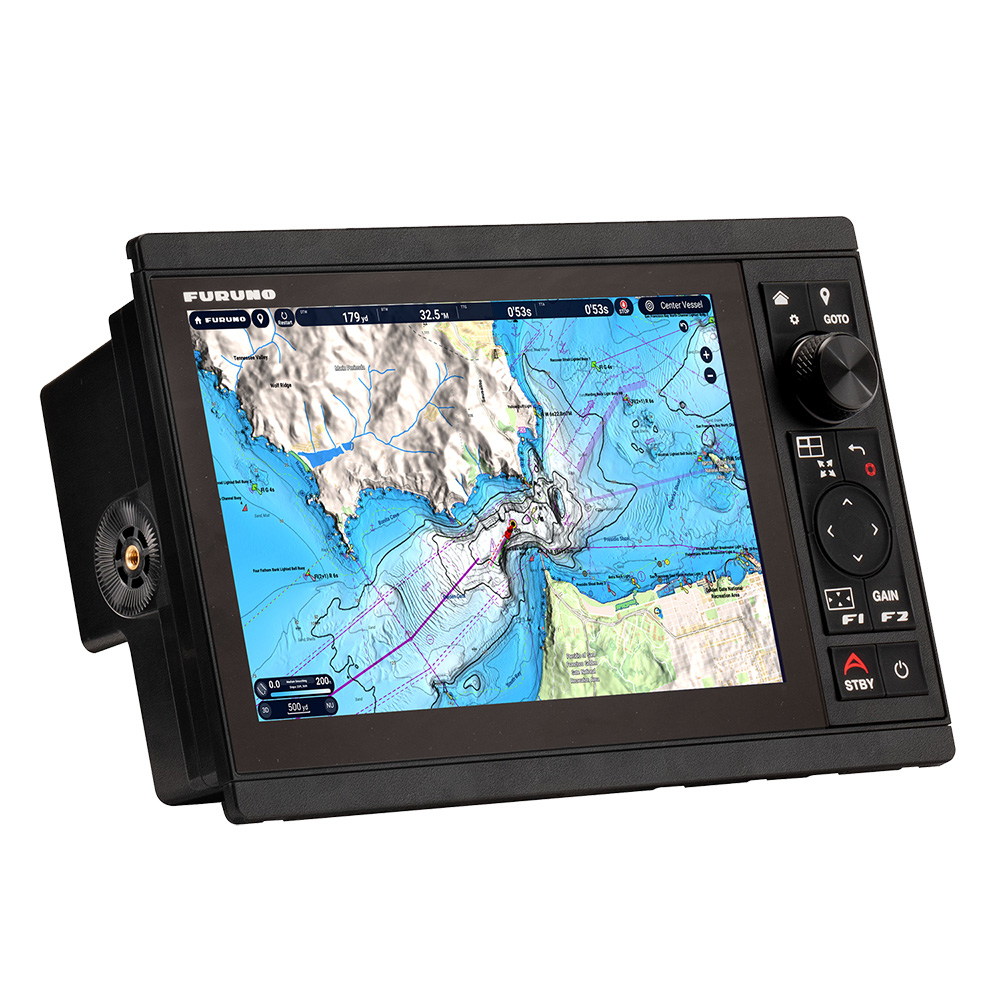

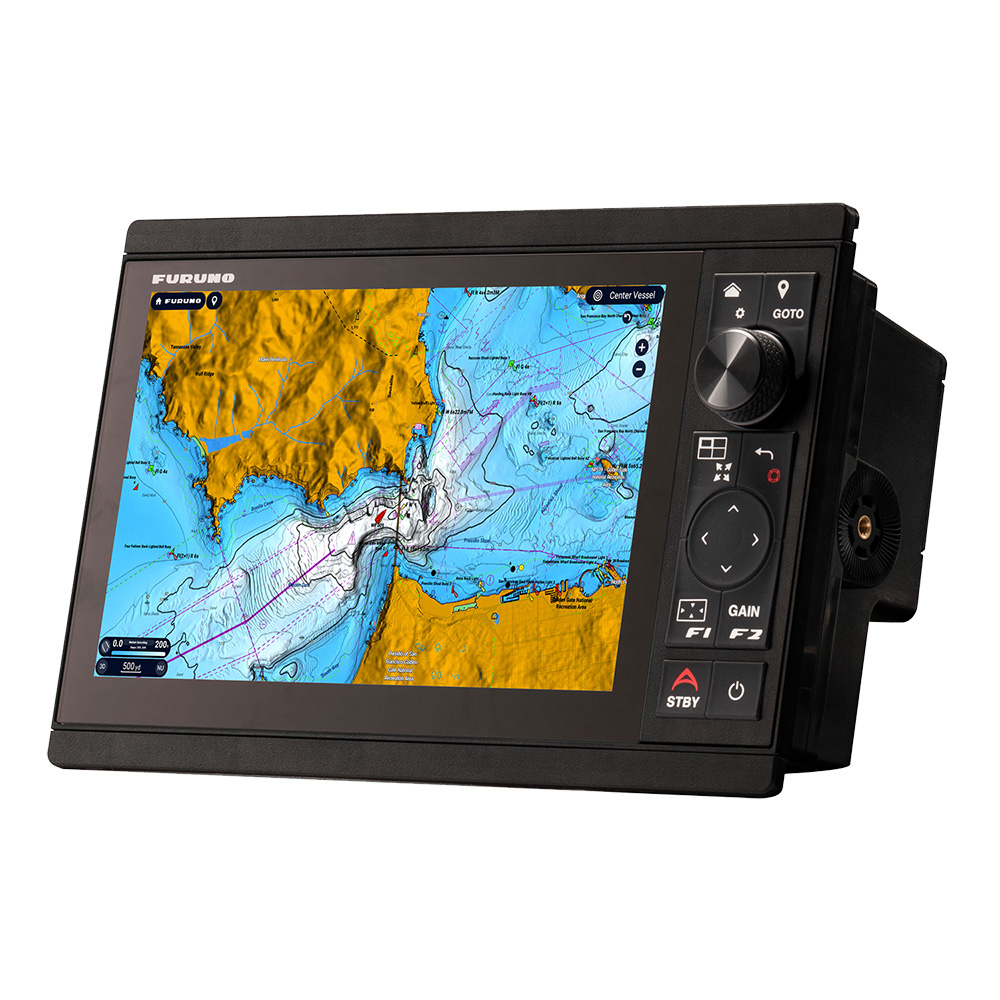

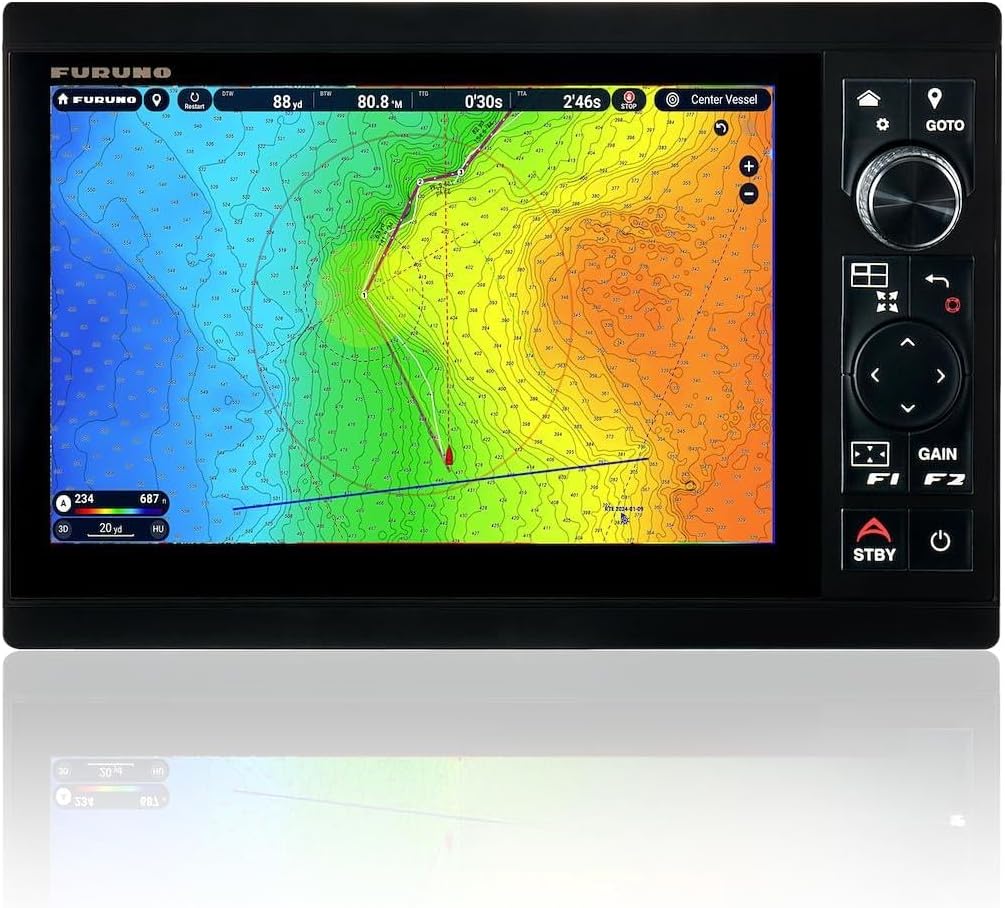

The Furuno TZT10X is a powerful 10-inch multifunction display combining advanced chartplotting, fish finding, and radar capabilities with hybrid control technology. Featuring both multi-touch operation and Furuno's RotoKey control knob with dedicated buttons, this MFD delivers intuitive navigation under any sea conditions.
Advanced Fish Finding Technology:
The TZT10X integrates a built-in 1kW dual-channel TruEcho CHIRP fish finder operating across wide frequency ranges (40-240 kHz). It includes built-in CHIRP side-scan capability at 235kHz or 455kHz, scanning both port and starboard to reveal bottom structure and fish targets in high definition. The system is expandable with optional DFF3-UHD network fish finders (2kW/3kW) or the BT-5 Booster Box for outputs up to 10kW for deep-water applications.
TZ MAPS Cartography:
This MFD features TZ MAPS, offering highly detailed navigation and fishing charts with customizable content including vector charts, raster charts, satellite imagery, and bathymetric data. The revolutionary BathyVision feature provides bathymetric detail down to 3-inch contour intervals. Charts can be purchased and updated directly from the MFD with an internet connection, and custom user objects can be shared with other registered TZ MAPS users.
Intelligent Navigation Features:
- AI Routing function automatically plans routes considering vessel draft and navigational obstacles
- Risk Visualizer provides 360-degree visual collision risk assessment when connected to NXT radar
- AI Avoidance Route tool dynamically generates safe routes around hazards
- Fish-It, Drift-It, and Follow-It exclusive features for fuel efficiency and improved catch rates
- 100 ARPA target tracking capability with fully automatic acquisition
Enhanced User Interface:
The TZT10X offers exceptional customization with ten Page Builder configurations and 6-way screen splitting capability. The enhanced Edge-Swipe feature provides smooth access to functions, all powered by a hexacore processor for rapid response times. The 10.1-inch WUXGA display (1920 x 1200 resolution) delivers 900 cd/m² brightness with 16.7 million colors for superior visibility.
Key Specifications:
- 10.1-inch color TFT multi-touch IPS LCD with hybrid controls
- Built-in 72-channel GPS/WAAS receiver (10m GPS accuracy, 3m WAAS accuracy)
- Dual-channel CHIRP/CW fish finder: 40-240 kHz (300W/600W/1kW transducers)
- CHIRP side-scan: 220-240kHz or 445-465kHz with 750-foot range per side
- Chart memory: 30,000 waypoints, 100,000 track points, 200 routes
- Connectivity: NMEA2000, NMEA0183, Ethernet (1000 BASE-T), USB 3.0, wireless LAN
- Video input (NTSC/PAL), microSDXC card slot
- IP56 waterproof rating, operates -15°C to +55°C
- Power: 12-24 VDC
Compatible with TZ MAPS, MM3 Vector, and CMOR cartography (U.S. only). The system supports multiple display modes including head-up and north-up radar presentation, customizable echo trails, and comprehensive alarm functions for anchor watch, depth, speed, temperature, and target collision avoidance.
