Furuno TZT16X 16" Multi-Touch Multi-Function Display with CHIRP Sonar

The Furuno TZT16X is a premium 16-inch multi-function display featuring a stunning all-glass touchscreen design with exceptional clarity and 900 cd/m² brightness. This powerful chartplotter combines advanced navigation capabilities with integrated fishfinding technology, making it ideal for serious anglers and navigators who demand professional-grade marine electronics.

Built-In TruEcho CHIRP Fishfinder

The TZT16X incorporates a powerful internal 1kW dual-channel TruEcho CHIRP fishfinder operating across a wide frequency range from 40 kHz to 240 kHz. The system includes built-in CHIRP Side-Scan capability at 235 kHz or 455 kHz, scanning up to 750 feet on each side to reveal bottom structure and fish-holding cover in high definition. For deeper applications, the display is compatible with the optional DFF3-UHD 2kW/3kW network sonar or BT-5 Booster Box for up to 10 kW output power.

TZ MAPS Advanced Chartography

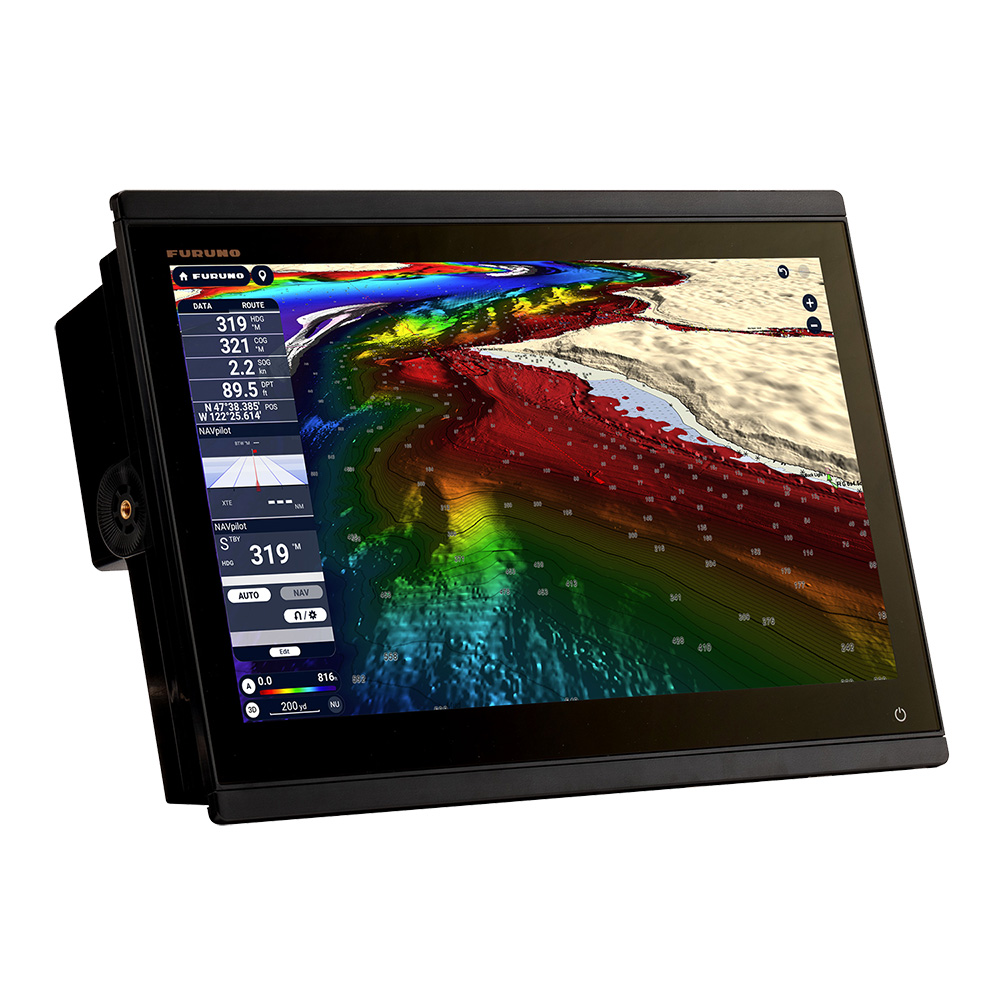

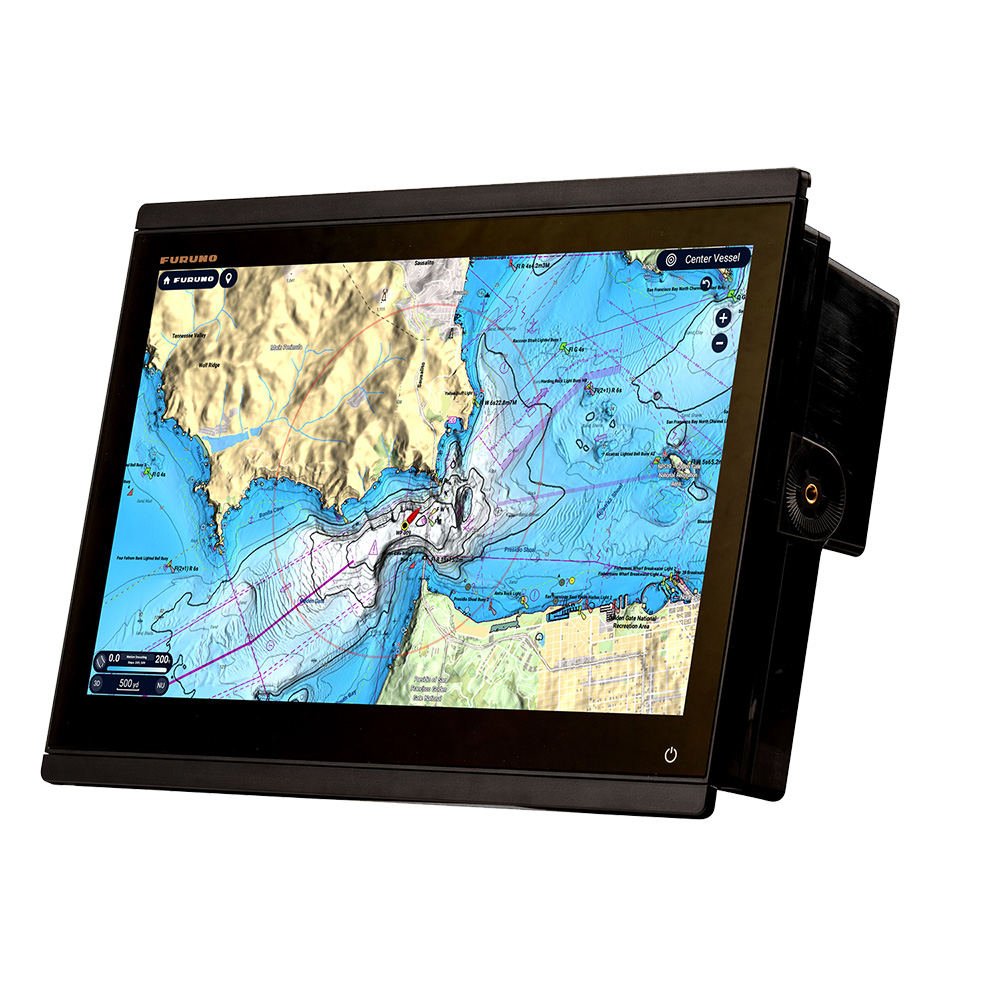

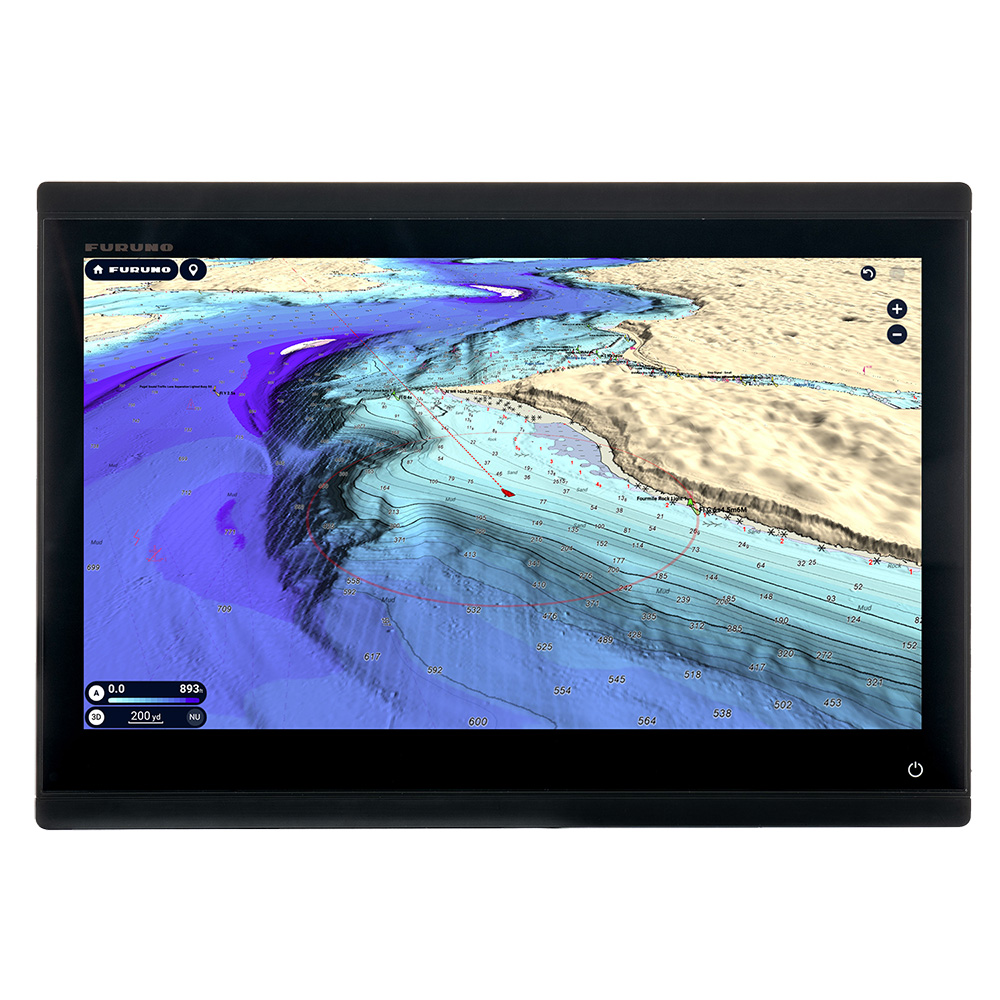

The TZT16X features TZ MAPS, offering highly detailed navigation and fishing charts with customizable content including raster charts, vector charts, satellite imagery, and bathymetric data. Charts can be purchased and updated directly from the MFD with an internet connection. BathyVision provides exceptional bathymetric detail with depth contours configurable down to 3-inch resolution, far exceeding standard chart detail. Custom user objects can be shared with other TZ MAPS users through TimeZero's online service.

AI Routing and Safety Features

Advanced AI Routing intelligently plans routes considering vessel draft and navigational obstacles, automatically generating optimal paths based on real-time conditions. When paired with Furuno NXT radar, the Risk Visualizer provides 360-degree collision risk assessment with dynamic target tracking, while the AI Avoidance Route function calculates safe routing around hazards and interfaces directly with Furuno NavPilot autopilots.

Key Features:

• 15.6-inch all-glass IPS LCD touchscreen with Full HD 1920 x 1080 resolution
• Powerful hexacore processor for rapid system response and multi-tasking
• Built-in 72-channel GPS/WAAS receiver with 10 Hz update rate
• 10-page custom screen configurations with up to 6-way split view capability
• Enhanced Edge-Swipe interface for intuitive menu access
• 100 ARPA radar target tracking capability (with compatible radar)
• ACCU-FISH target identification and Bottom Discrimination
• Fish-It, Drift-It, and Follow-It functions for efficient fishing
• Supports MM3 Vector and CMOR cartography formats
• Built-in WiFi (802.11b/g/n) for wireless connectivity
• NMEA 2000 and NMEA 0183 networking
• Video input/output including HDMI 1080p support
• IP56 waterproof rating for harsh marine environments
• 12-24 VDC power input

Memory and Data Management

The chartplotter offers extensive storage capacity with support for 30,000 user waypoints, 100,000 track points, and 200 planned routes with up to 500 points per route. The rear micro SDXC card slot and USB 3.0 port provide additional storage and data transfer options.

Display Specifications

The 16,770,000-color TFT IPS LCD display delivers wide viewing angles and excellent sunlight readability. The screen measures 15.6 inches diagonal with a wide-format aspect ratio. Multi-language support includes 17 languages for international use.

The all-glass design allows multiple TZT16X units to be mounted side-by-side for a seamless, sophisticated helm appearance while expanding display real estate for charts, radar, sonar, and video monitoring.
