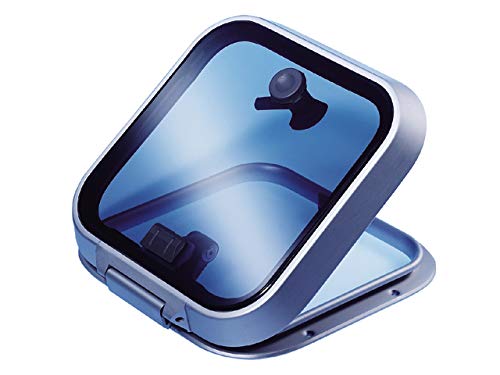

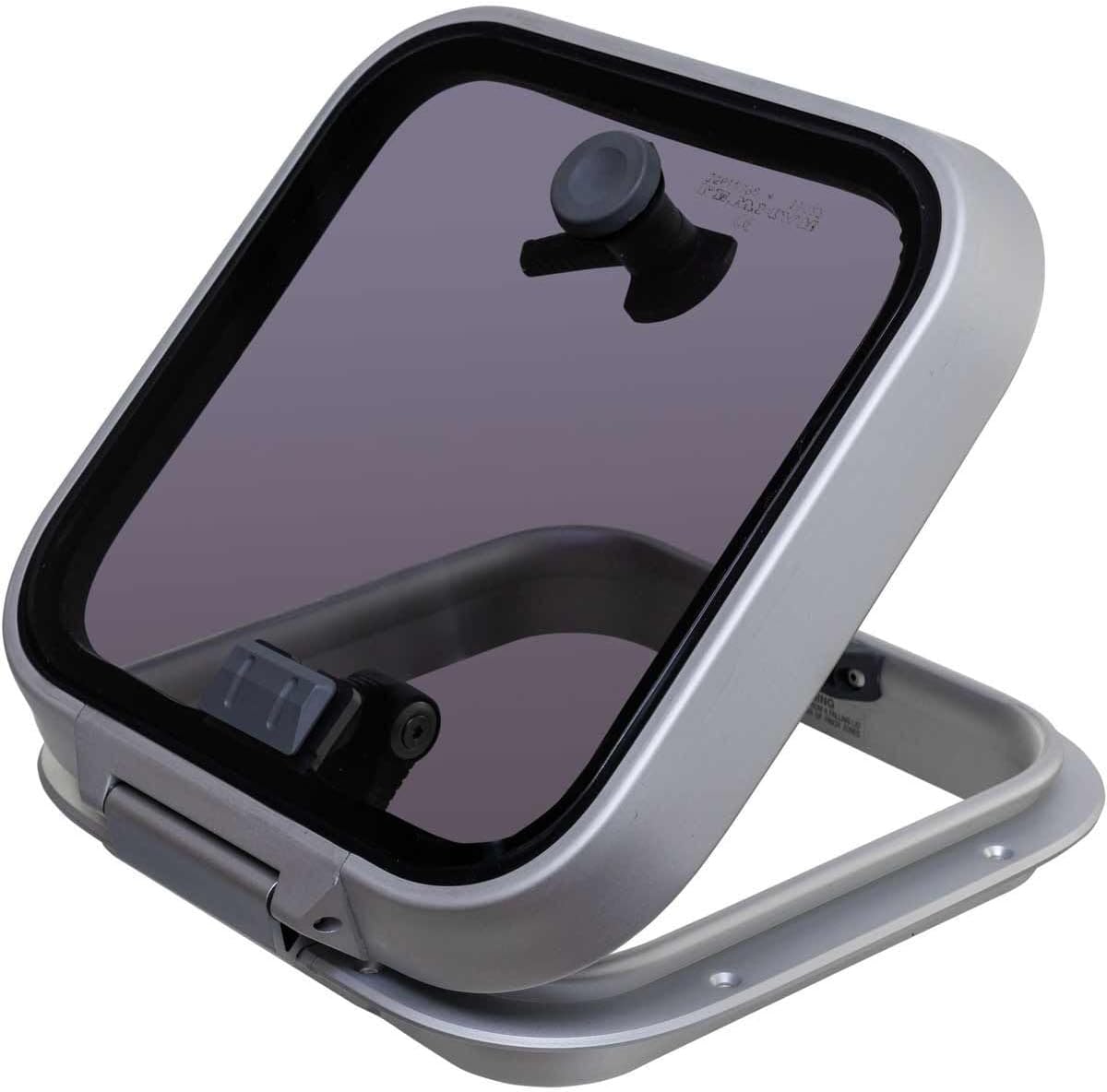

Lewmar 39610070 Ocean Size 10 Marine Deck Hatch with Flange Base

The Lewmar 39610070 Ocean Hatch Size 10 is a high-profile marine deck hatch featuring a flanged base design for flush-mount installation. Found on thousands of vessels around the world, this classic offshore hatch combines traditional styling with rugged construction engineered to provide ultimate protection against harsh marine conditions.

Key Features:

• Flanged base with 1" deep internal flange (spigot) for secure deck mounting
• Corrosion-resistant satin-finished anodized aluminum frame for long-lasting durability
• 3/8" thick shock-resistant acrylic (Plexiglas) lens for superior strength and clarity
• Opens 180° for easy access to below-deck areas
• Friction lever allows for any open position between 30° and 90° without support arms
• EPDM seal provides a completely watertight structure
• Hinges are attached outside the frame to prevent leakage
• Internal and external lockable handles for security and convenience
• Height above deck level: 1-9/16"

Certifications and Installation:

• Conforms to CE Area 2a - suitable for: deck, coachroof, cockpit or transom use (tested to 2 psi)
• Accommodates deck thickness from 1" to 2-13/16" using available trim kit
• Fits other Lewmar standard cut-outs for easy replacement or upgrade
• Optional ABS plastic trim kits with UV-resistant flyscreens available separately

This Size 10 flanged hatch measures 324mm x 324mm and delivers the reliability and performance that has made Lewmar the trusted choice for mariners worldwide.
