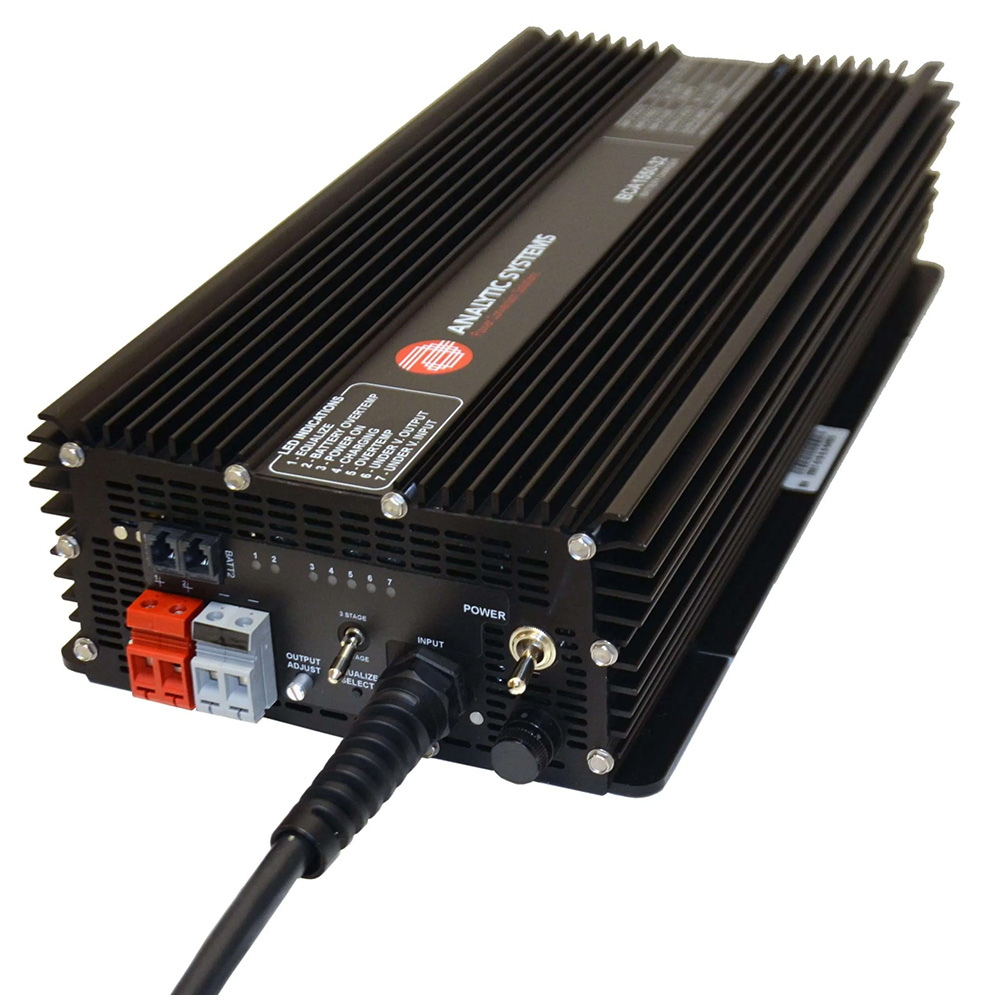

The Analytic Systems BCA1050-12 is a professional-grade 2-bank battery charger delivering up to 1000 watts of charging power to 12V DC battery systems from a universal 85-264 VAC input source. Designed for marine, RV, and industrial applications, this intelligent charger features Power Factor Corrected (PFC) input technology for maximum efficiency across the entire input voltage range.
The BCA1050-12 incorporates a 3-stage charging algorithm with temperature compensation and equalization capabilities, ensuring fast, accurate, and safe charging for your battery banks. The PFC input stage eliminates the dead spot between 110V and 220V, allowing continuous operation from 85 to 264 VAC at 45 to 65 Hz frequencies. Heavy input and output filtering reduce EMI to minimal levels, preventing radio interference in sensitive environments.
Key Features:
- 1000W charging capacity with 80A continuous output at 12 VDC
- Dual battery bank management for independent charging
- Power Factor Corrected AC input for enhanced efficiency
- Universal input voltage: 85-264 VAC, 45-65 Hz
- 3-stage charging with temperature compensation and equalization
- Analog control technology for reliable operation
- Input/output isolation for electrical safety
- Visual indicators for low input voltage, charging status, and overtemperature conditions
- Can function as a regulated DC power supply
- 5-year parts and labor warranty
Technical Specifications:
- Model: BCA1050-12
- Input Voltage: 85-264 VAC, 45-65 Hz
- Output Voltage: 12 VDC
- Maximum Output Current: 80A continuous
- Power Output: 1000W maximum
- Battery Banks: 2 independent banks
- Charging Stages: 3-stage (bulk, absorption, float)
- Temperature Compensation: Yes
- Equalization Mode: Yes
- Power Factor Correction: Yes
Optional configurations available include conformal coating protection, digital volt/ammeter display, portable mounting with handle and feet, military-rugged construction, CSA/UL safety inspections, and European ROHS compliance. This charger serves as a direct drop-in replacement for the legacy BCA1005 series with identical form, fit, and function.
Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
