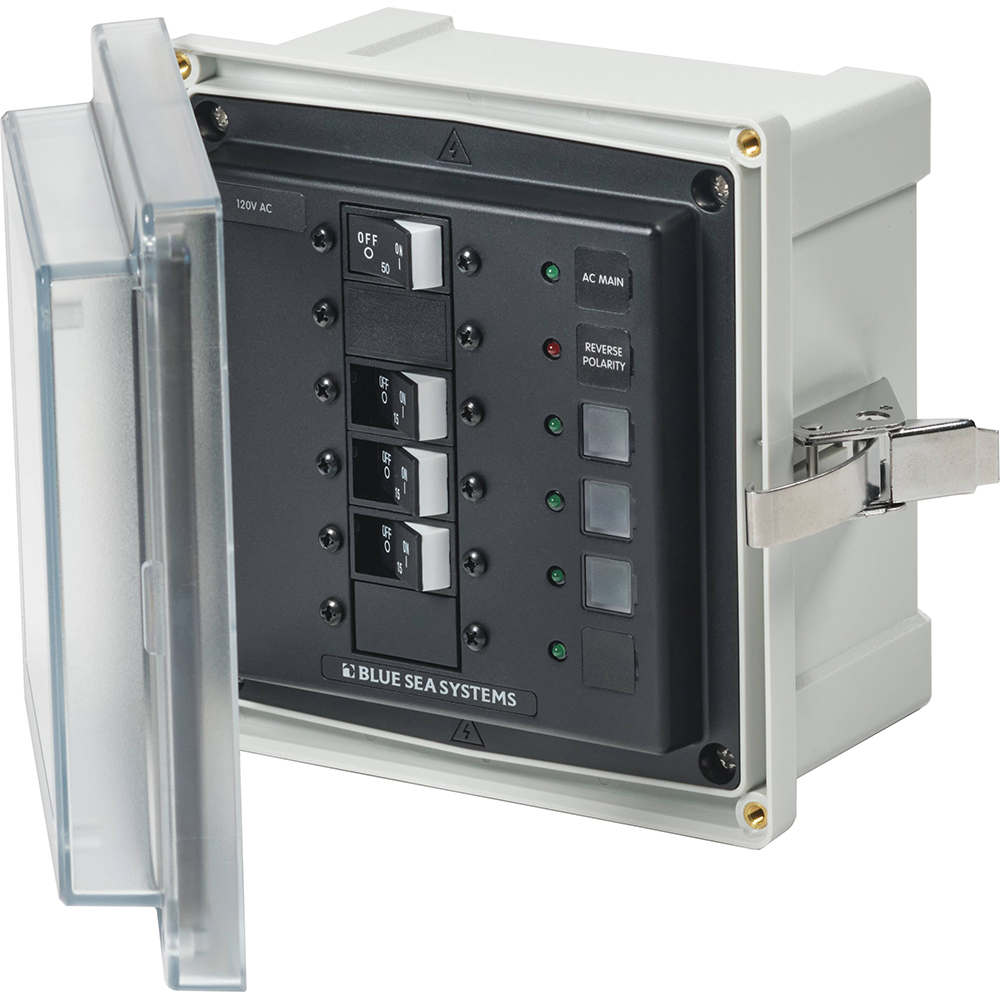

Blue Sea Systems 3130 SMS Surface Mount Panel Enclosure 120V 50A Main with 3 Branch Circuit Breakers

Manufacturer

Blue Sea Systems

Picture for manufacturer Blue Sea Systems

Part Number

3130
7 reviews
04/04/2036 3:45 AM
Sale Price

$420.91

Out of Stock

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Blue Sea Systems 3130 is a surface mount system (SMS) panel enclosure designed for marine AC electrical distribution. This robust enclosure features a 120V 50A main circuit breaker and three 15A branch circuit breakers, built to meet CFR 46 Coast Guard requirements using UL-489 rated circuit breakers.

Key Features:

  • Durable Construction: Glass-filled polycarbonate base with clear polycarbonate cover for easy circuit breaker status viewing
  • Weather Protection: Oversized, formed-in-place seamless PUR gasket with overlapping cover design for superior gasket protection
  • Easy Installation: Removable stainless steel hinge pin allows unobstructed installation; stainless steel latch secures cover without penetrating enclosure
  • Flexible Configuration: Blank apertures and circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers for custom loading
  • Visual Indicators: Includes LED backlighting with 1 red LED for reverse polarity indication and 5 green LEDs for ON status (120V AC)
  • Complete Package: Comes with 4 waterproof cable glands, circuit labels, mounting hardware, and instruction manual

Technical Specifications:

  • Circuit Configuration: 1x 120V 50A Main + 3x 15A Branch
  • Overall Dimensions: 7.6" H x 7.4" W x 4.7" D (192 x 188 x 120mm)
  • Enclosure Dimensions: 6" H x 6" W x 4" D (152 x 152 x 102mm)
  • Material: Glass-filled polycarbonate with clear cover
  • Compliance: UL-489, CFR 46 Coast Guard requirements

Ideal for marine applications requiring reliable, weather-resistant AC power distribution with visual circuit monitoring.
