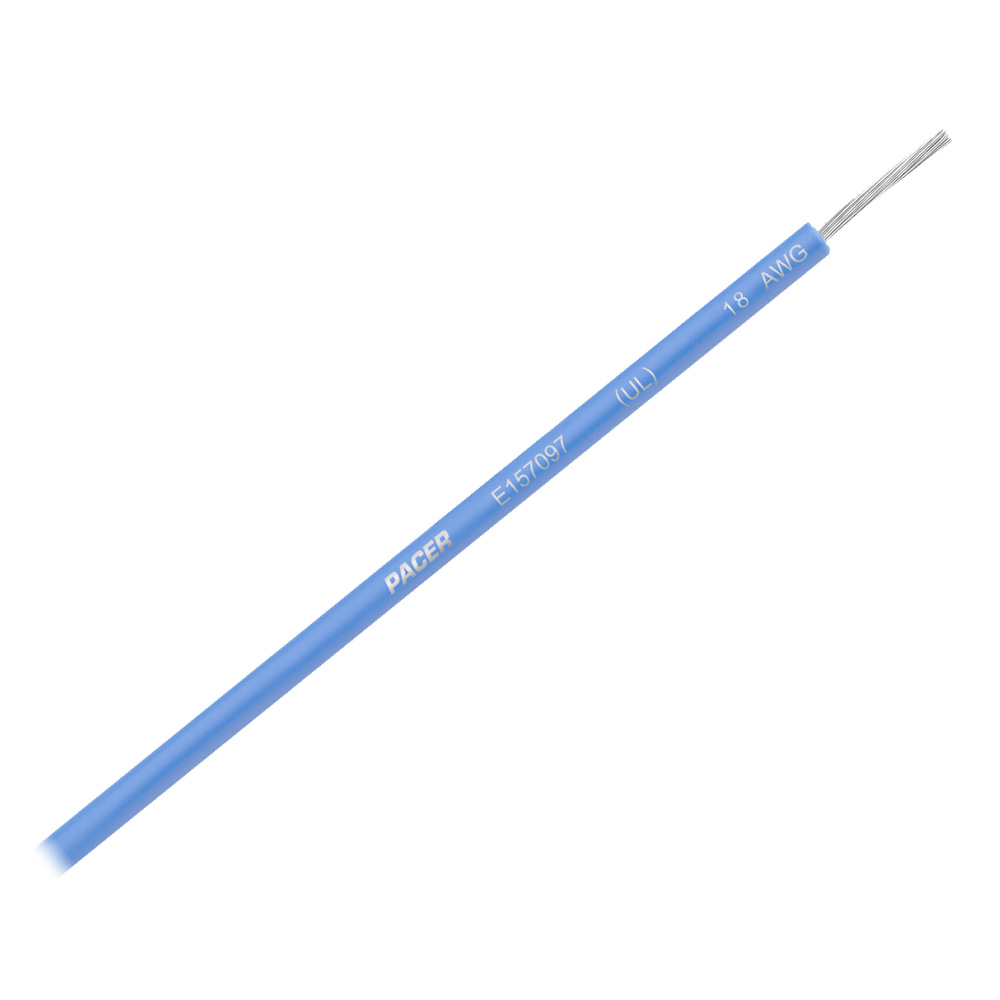

Pacer Performance's 18 AWG marine-grade wire is engineered to withstand the harshest marine environments with superior corrosion resistance and flexibility. This 35-foot spool of blue marine wire is manufactured in Sarasota, FL, USA, and built to meet and exceed UL, ABYC, and NMMA standards.
Construction and Durability:
The wire features Type III Class K tinned copper conductors (ASTM B172) that provide excellent corrosion resistance in saltwater environments. The stranded copper construction offers superior flexibility for routing through tight spaces and around corners. A proprietary PVC jacket insulates the conductor, delivering resistance to acid, alkali, abrasion, flame, gasoline, oil, and moisture.
Key Features:
- Stranded, tinned copper conductors for corrosion resistance
- Highly flexible color-coded blue insulation
- 600-volt rating for demanding applications
- Temperature rated to 105°C dry, 60°C wet
- Meets AWM 1015/1230 and CSA TEW compliance
Technical Specifications:
- Gauge: 18 AWG
- Length: 35 feet
- Color: Blue
- Conductor Stranding: 16/0.0100
- Nominal Insulation Thickness: 0.030 inches
- Nominal Outside Diameter: 0.114 inches
- Nominal Circular Mils: 1600
- Approximate Weight: 10.3 lbs per 1000 feet
Applications:
Ideal for point-to-point wiring in marine electrical systems, internal wiring of panels, motors, and any application requiring UL-listed marine-grade wire. The color-coded insulation simplifies circuit identification and troubleshooting.
