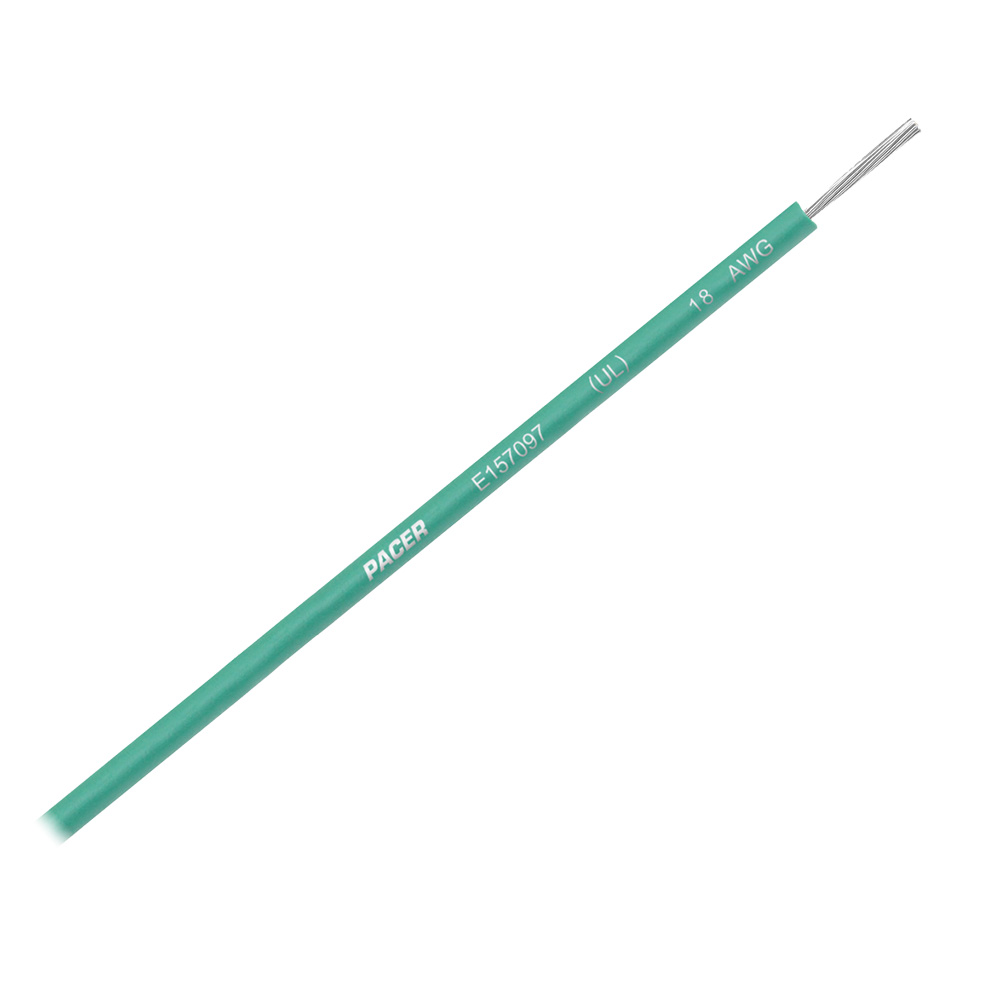

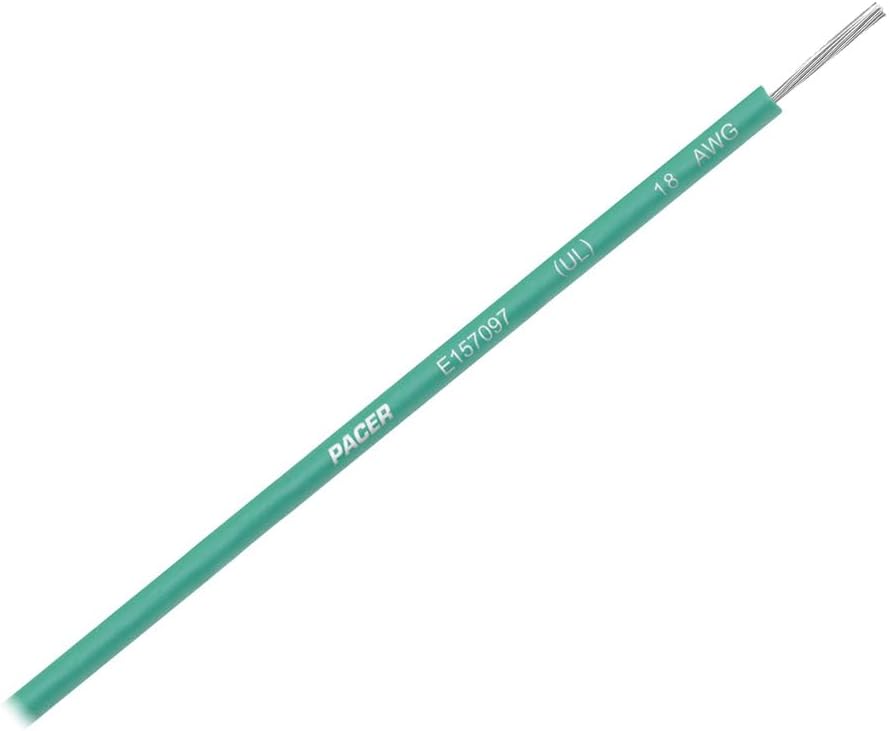

Pacer Performance WUL18GN-35 Green 18 AWG UL Marine Wire 35 ft

Pacer Performance's 18 AWG marine wire is engineered to withstand the harshest marine environments with superior corrosion resistance and flexibility. Manufactured in Sarasota, FL, USA, this 35-foot spool of green marine-grade wire is constructed from Type III Class K tinned copper conductors that provide excellent protection against saltwater corrosion while maintaining optimal conductivity.

The stranded tinned copper core is insulated with a durable, flexible proprietary PVC jacket that resists alkali, abrasion, acid, gasoline, oil, flame, and moisture. This UL-listed marine wire meets or exceeds requirements set by UL, ABYC, and NMMA, making it ideal for reliable point-to-point wiring in boats, marine panels, and motor installations.

Key Features:

• Type III annealed finely stranded tinned copper conductor (ASTM B172 Class K)
• Highly flexible color-coded green PVC insulation
• 600-volt rating with 16/0.0100 conductor stranding
• Temperature rated for 105°C dry, 60°C wet conditions
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
• Nominal insulation thickness of 0.030 inches
• Nominal outer diameter of 0.114 inches

Compliances & Standards:

• UL AWM 1015/1230 listed
• CSA: TEW certified
• Meets ABYC and NMMA marine standards

Applications:

• Marine vessel point-to-point wiring
• Internal wiring of electrical panels
• Motor and accessory installations
• Boat electrical system repairs and upgrades

Specifications:

• Wire gauge: 18 AWG
• Length: 35 feet
• Color: Green
• Conductor stranding: 16/0.0100
• Nominal circular mils: 1600
• Approximate weight: 10.3 lbs per 1000 feet
