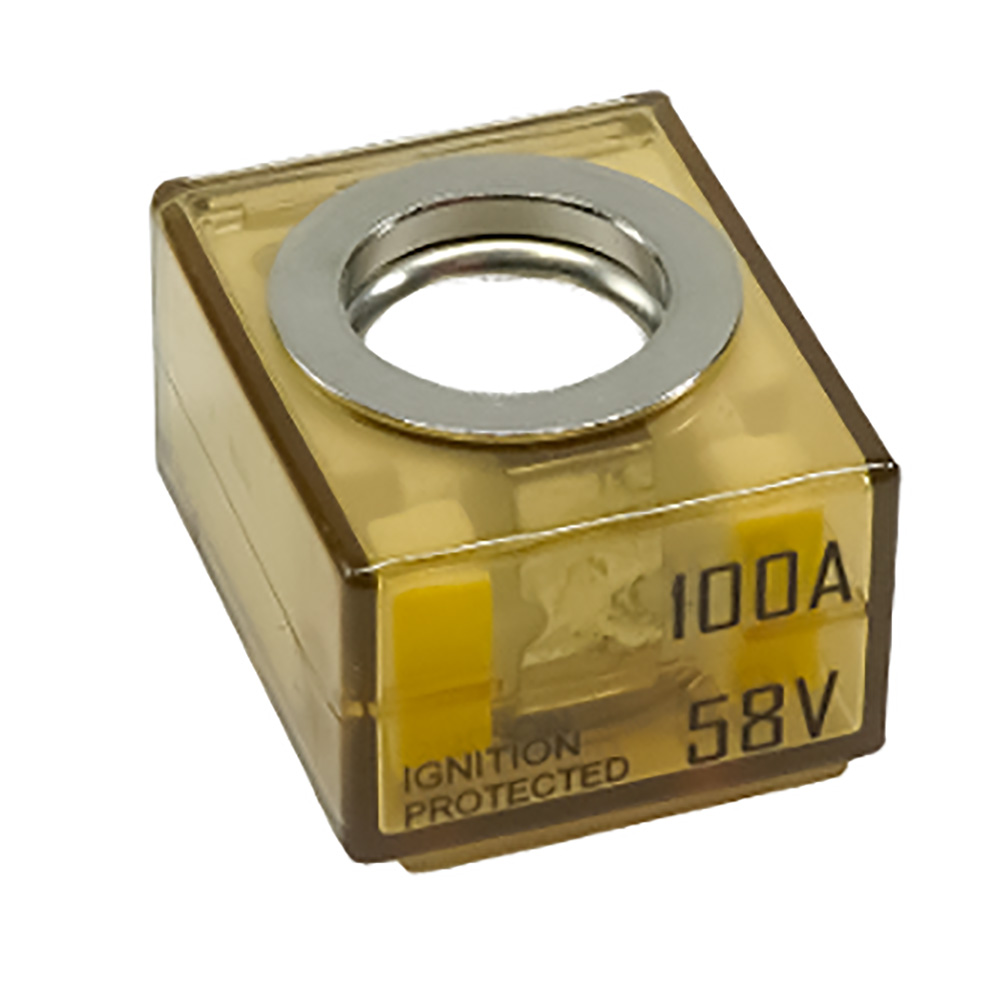

Egis Mobile Electric 3603-100 MRBF Terminal Fuse 100A 58V DC Marine Automotive

The Egis Mobile Electric MRBF Terminal Fuse is a high-performance 100-amp circuit protection device designed specifically for marine, RV, and automotive electrical systems with large battery banks. This ignition-protected fuse meets SAE J1171 and ISO 8846 standards, making it safe for installation in enclosed compartments where potentially explosive gases may be present.

Key Features:

• Transparent housing provides easy visual confirmation of fuse status
• High interrupt rating of 10,000A at 14 VDC satisfies ABYC requirements for DC main circuit protection
• Color-coded for quick amperage identification
• IP66-rated sealed design protects against dust and water intrusion
• Shock and vibration resistant construction for harsh marine and vehicle environments
• Supports 12V to 48V nominal applications with 58 VDC maximum rating

Technical Specifications:

• Continuous Current Rating: 100 Amps
• Maximum Voltage: 58 VDC
• Interrupt Rating at 14 VDC: 10,000 Amps
• Interrupt Rating at 48 VDC: 5,000 Amps
• Interrupt Rating at 58 VDC: 2,000 Amps
• Ingress Protection: IP66
• Warranty: 4 Years

This terminal fuse provides critical protection for electrical circuits against short circuit events and over-current loads, preventing wire insulation damage and potential fire hazards. The high interrupt current capability makes it ideal for protecting circuits connected to large paralleled battery banks with significant available power.
