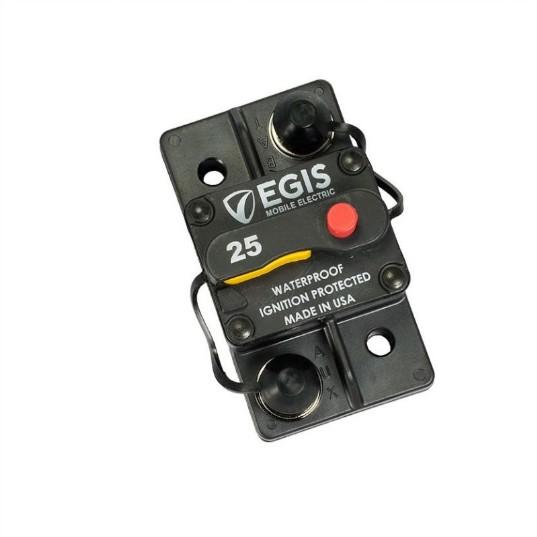

Egis Mobile Electric 4703-025 25A Surface Mount Circuit Breaker 285 Series

The Egis Mobile Electric 25A Surface Mount Circuit Breaker (285 Series) provides robust circuit protection for marine, RV, and mobile power systems. This compact breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation damage and system failures.

Key Features:

• 25A continuous current rating with 48 VDC maximum voltage
• IP67 sealed design protects against dust and water intrusion for reliable long-term performance
• Dual functionality combines automatic circuit protection with manual on/off switching
• High interrupt current capacity: 3,000A at 16 VDC, 1,500A at 28 VDC for safe protection with large battery banks
• High endurance design rated for 6,000 cycles at full current load
• Integrated terminal insulators prevent inadvertent shorts to grounded surfaces
• Stainless steel hardware with serrated flange nuts for corrosion and vibration resistance
• High-visibility ON/OFF controls with high-temperature rating
• Supports 12V, 24V, 36V, and 48V DC applications

Technical Specifications:

• Continuous Current: 25 Amps
• Maximum Voltage: 48 VDC
• Ingress Protection: IP67 (dust-tight and waterproof)
• Interrupt Current: 3,000A @ 16 VDC / 1,500A @ 28 VDC
• Electrical Endurance: 6,000 cycles at full load
• Mounting: Surface mount design

Ideal for circuit isolation and maintenance on battery systems, power distribution panels, and load circuits in mobile, marine, and off-grid applications. Proudly made in the USA with a 4-year warranty.
