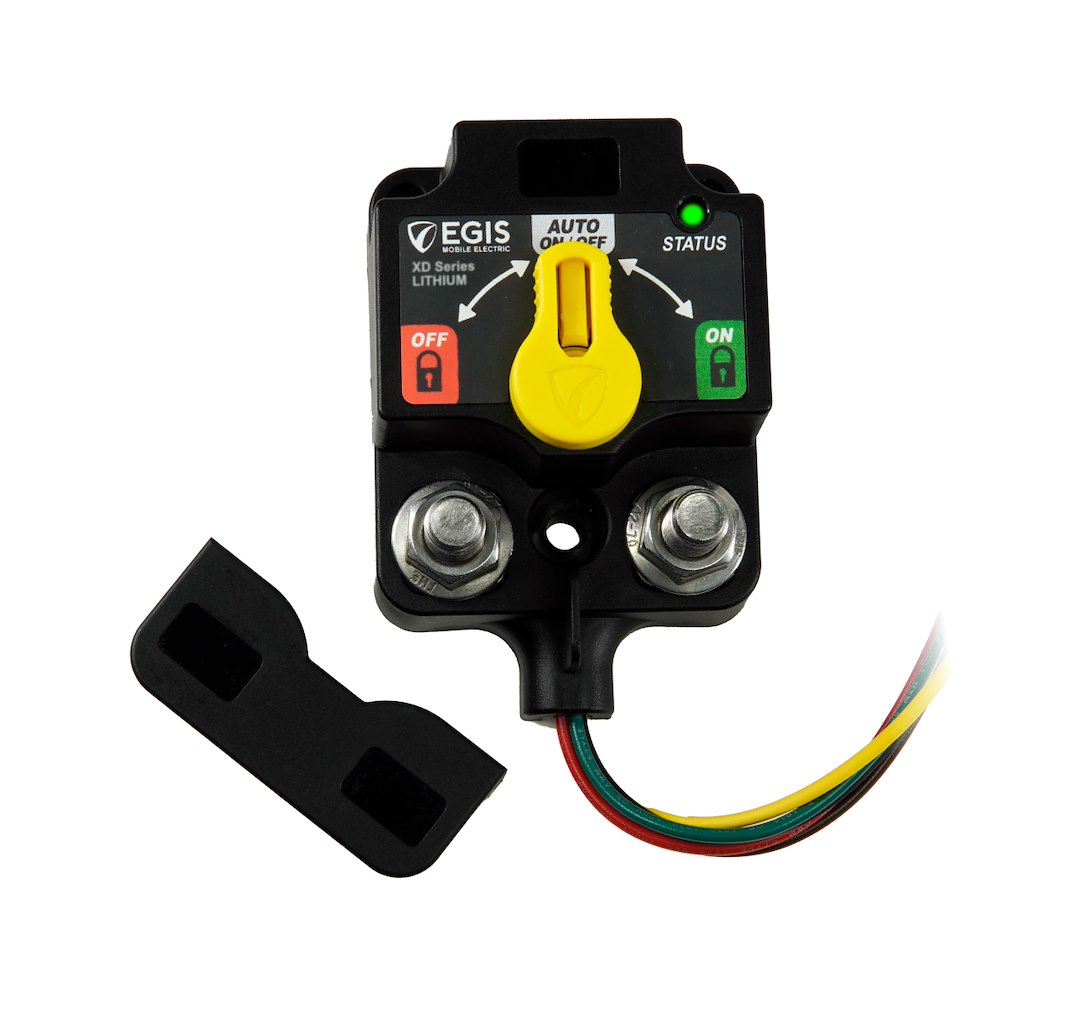

Egis Mobile Electric 8610-1300 XD FLEX L Lithium Battery ACR/RE Automatic Charging Relay

The Egis Mobile Electric 8610-1300 XD FLEX L is an advanced automatic charging relay (ACR) designed specifically for marine applications with lithium battery systems. This intelligent relay ensures efficient power management between multiple batteries, automatically connecting and isolating battery banks based on voltage levels.

Key Features:

• Wide voltage range compatibility: 8 to 36 volt DC operation
• High current capacity: 500 amp continuous rating with 1500 amp maximum cranking current
• Lithium battery optimized circuitry for safe charging and isolation
• Rotary switch with control knob for manual override and settings adjustment
• Ultra-low 1.3 amp off-state current draw minimizes parasitic drain
• Extreme temperature rating: -40°F to 221°F operating range
• Compact design: 3.15" L x 2.59" W x 1.96" H
• Marine-grade construction with stainless steel self-locking hardware
• 6-pin ATM/DTM connector termination for reliable weatherproof connections

This ACR is ideal for boats with dual battery systems, automatically combining batteries during charging and isolating them when voltage drops, ensuring your starting battery remains charged while allowing house loads to draw from auxiliary batteries.
