Egis Mobile Electric 8730-1535 XD Series Triple Flex 2 Relay-ACR-Relay with Knobs

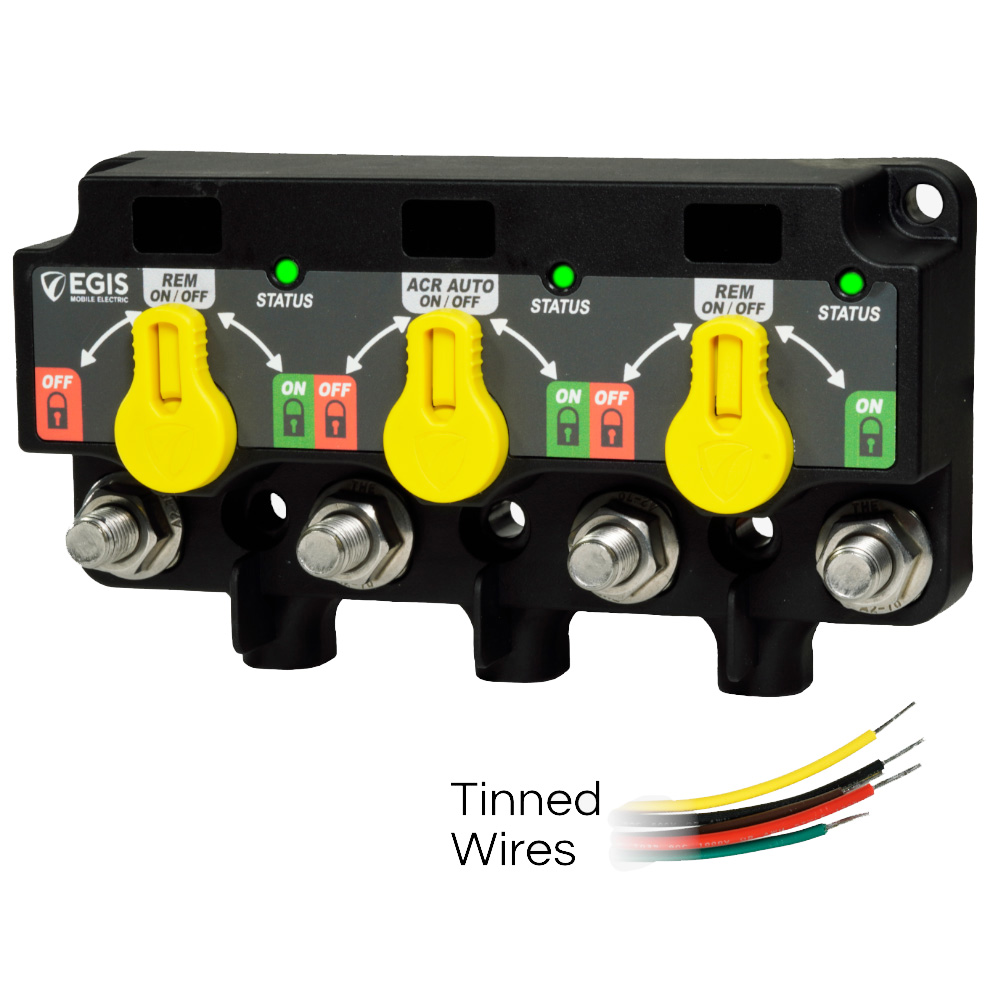

The Egis Mobile Electric 8730-1535 XD Series Triple Flex 2 Relay-ACR-Relay is a battery isolator and automatic charging relay (ACR) module with manual control knobs and tinned wires. It replaces three individual high-amp relays with one compact unit, saving space, eliminating external link cable connections, and removing the risk of those cables vibrating loose. The manual controls show clearly how to operate them and what state each relay has been forced into.

Applications:

• Designed for common multi-battery switching and charge management. Dual battery load switching runs through the outer relays, while a central automatic charging relay shares charge current.
• Combines multiple automatic charging relays into one device. In 3-4 battery systems that need 2 or 3 ACRs, a single three-relay ACR reduces off-state quiescent current draw, space used, and unnecessary interconnection cables.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Supports 3 or 4 battery systems with standard busbar interconnect accessories.

Key Features:

• Sealed to IP67/IP6K9K, with high-temperature electronics and materials that allow mounting almost anywhere
• Stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware
• 3-position manual override forces each relay open or closed, and the knob can be left in either position to lock the relay in that state
• Programmable with dip switches located under the protective cover, with a configuration guide on the reverse
• Front-facing LED status indicator, with a remote LED that replicates the on-device LED
• Bi-stable solenoid design with multiple solenoid assemblies, giving a 35-75% reduction in mounting space and product weight
• Single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays
• 90-95% less off-state current compared to competitive products and system solutions that need multiple devices for similar functionality
• Integrated Gore-Tex-type vent regulates internal pressure to keep moisture from entering across the seals

Specifications:

• Total continuous current: 500 A
• Max cranking current: 1500 A
• Mechanical switching life: 1,000,000 cycles
• Voltage range: 8-36 VDC
• Off-state current draw: 1.3 mA
• State change current: 5 A @ 12 VDC; 3 A @ 24 VDC

Included:

• Protective cover for the terminal studs and cable terminal edges, guarding against inadvertent shorts to each other or ground
• 40-circuit weatherproof label sheet, with recesses for circuit and relay identification and blank labels for custom applications
• Stainless steel studs and self-locking flanged nuts
