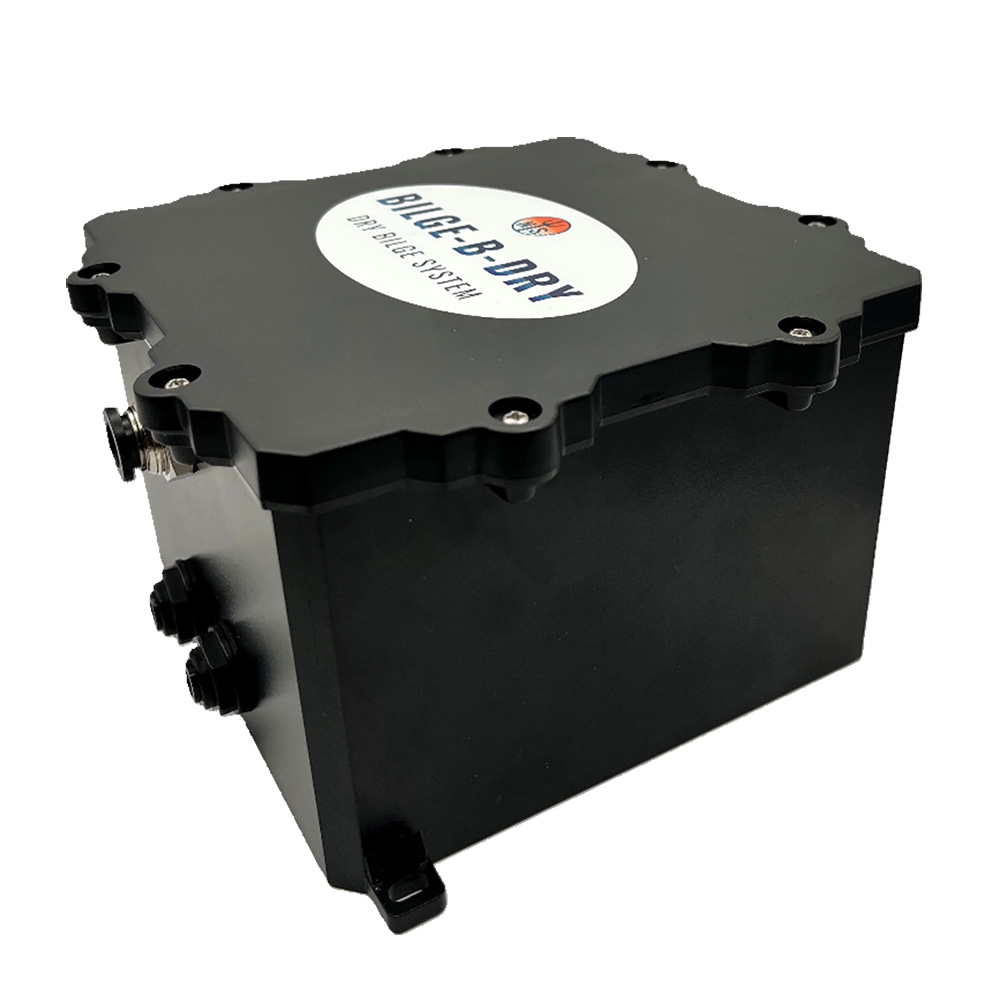

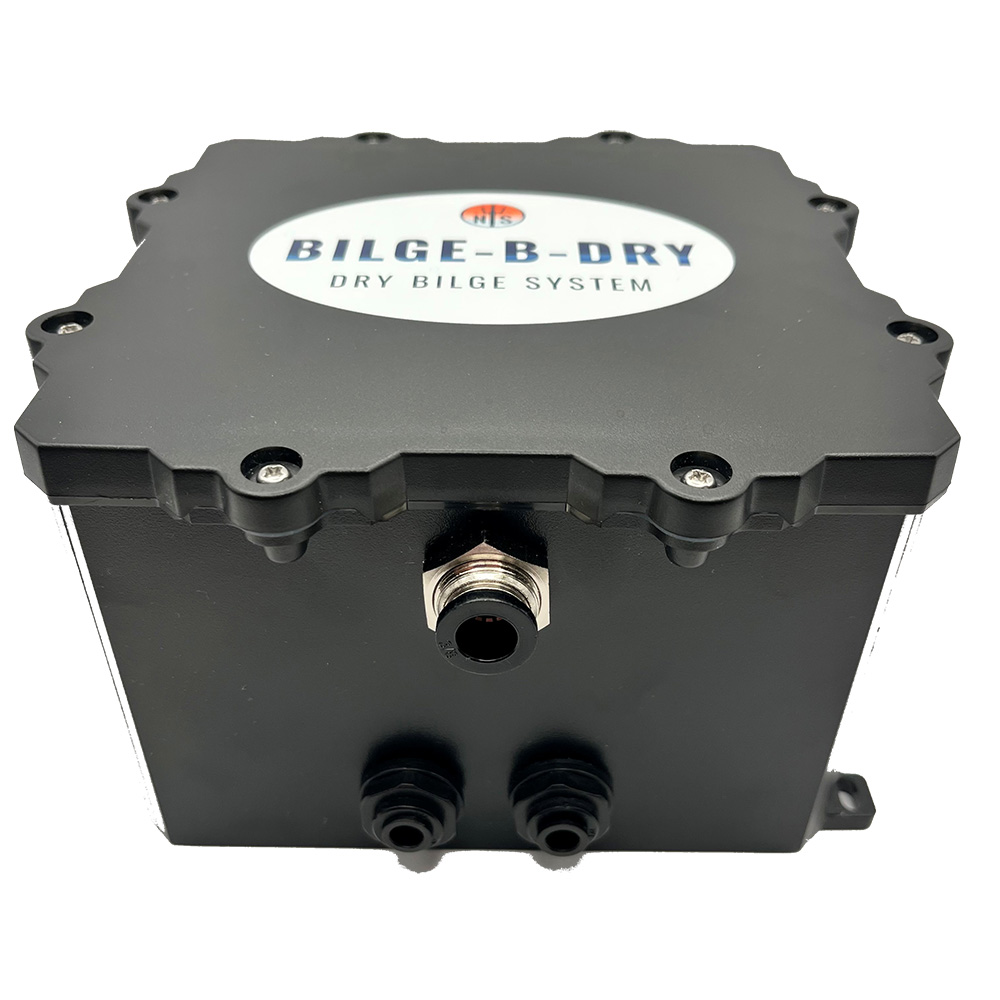

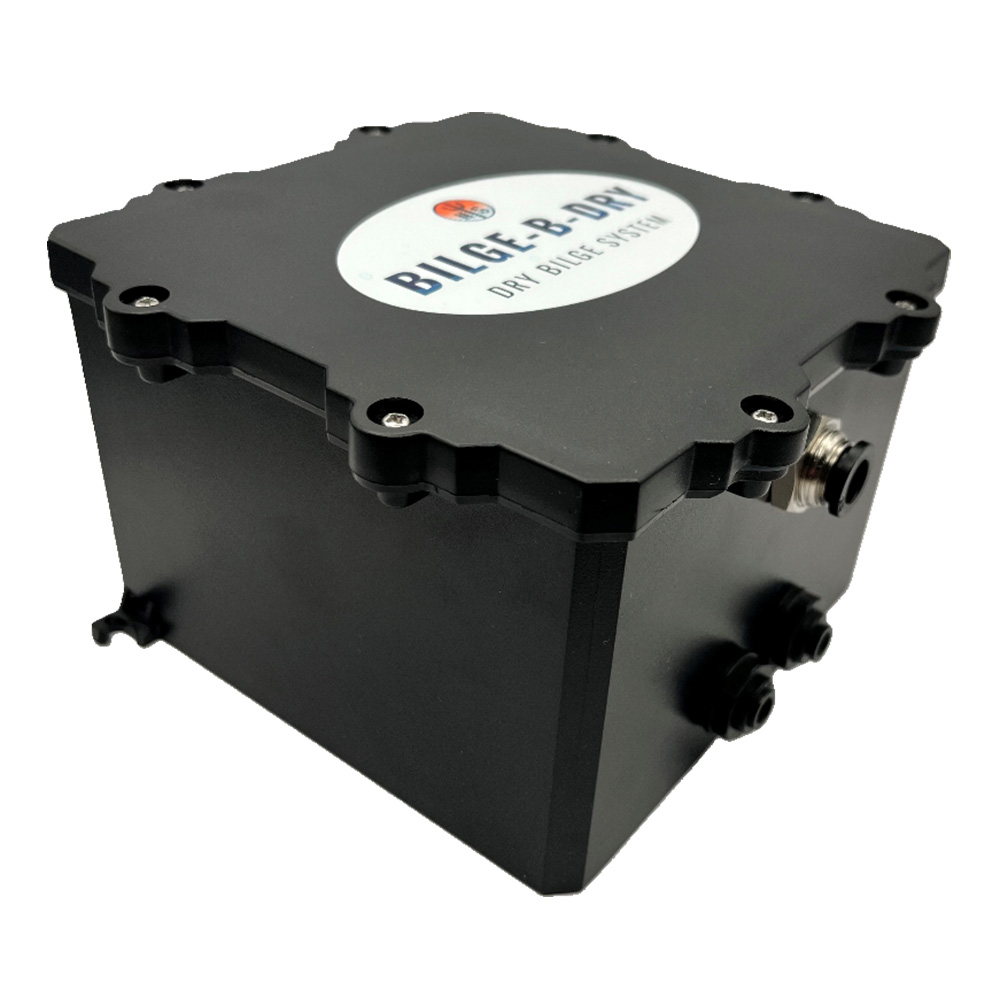

The Bilge-B-Dry BBD-2025-122 is a revolutionary smart dry bilge pump system designed to remove every last drop of water from your boat's bilge. Unlike traditional bilge pumps that leave behind several inches of standing water, this dual pump configuration features advanced diaphragm technology and low-profile water pickups that eliminate residual moisture, preventing cabin odors, mold, corrosion, and electrical wiring damage.
Smart Device Control:

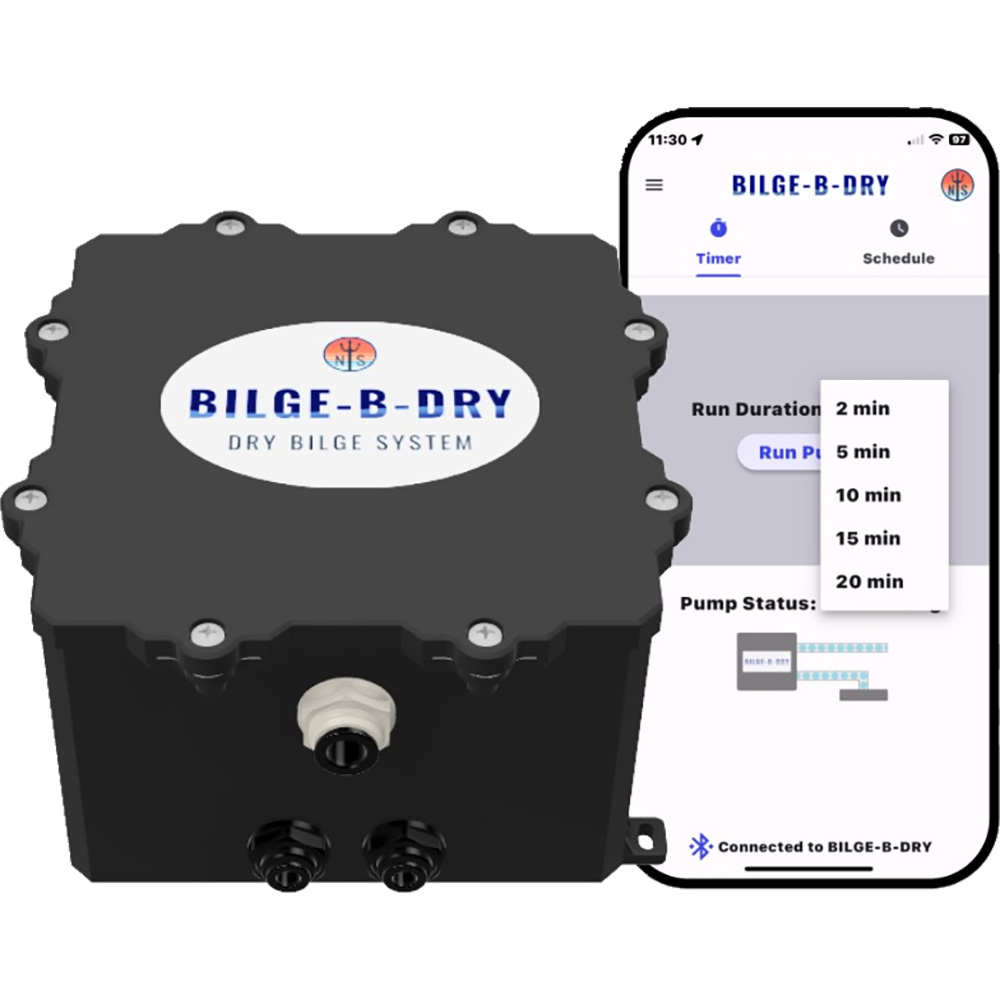

This system offers customizable operation through a free mobile app for Apple and Android devices. Connect via Wi-Fi for full scheduling control, or let it run automatically in standalone mode with 2-minute cycles every 6 hours. The app provides two operational modes: Timer mode for on-demand pumping up to 20 minutes (ideal after heavy seas or washdown), and Schedule mode with up to five customizable daily run times. The system is FCC Part 15C certified for wireless connectivity.
Key Features:
- Dual motor/diaphragm pump configuration operating on 12VDC (8-14 VDC range)
- Maximum flow rate of 0.50 GPM with 10-foot pump head and 5-foot vertical suction
- Compact enclosure dimensions: 4.1 inches H x 6.8 inches W x 7 inches L
- Diaphragm design can run dry for extended periods without damage (1,000+ hour life expectancy)
- Low current draw: 0.73 amps maximum, 0.05 amps idle

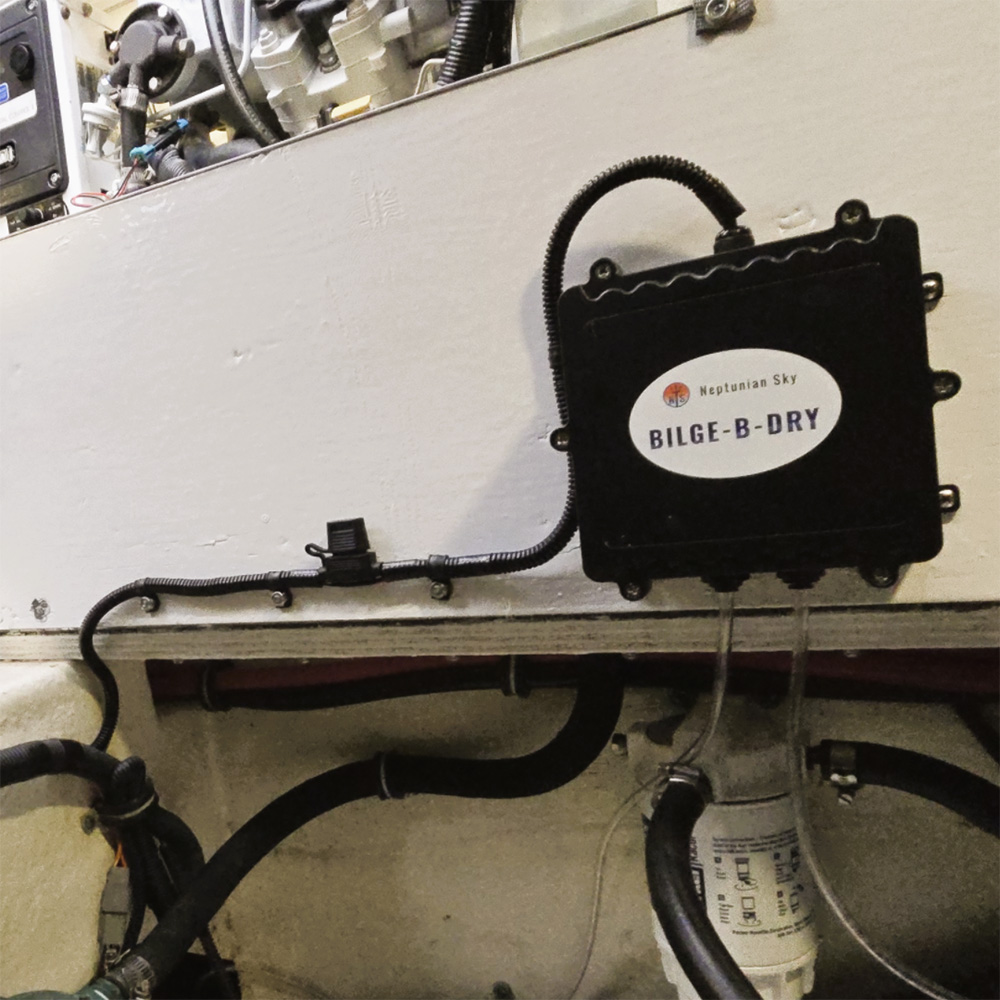

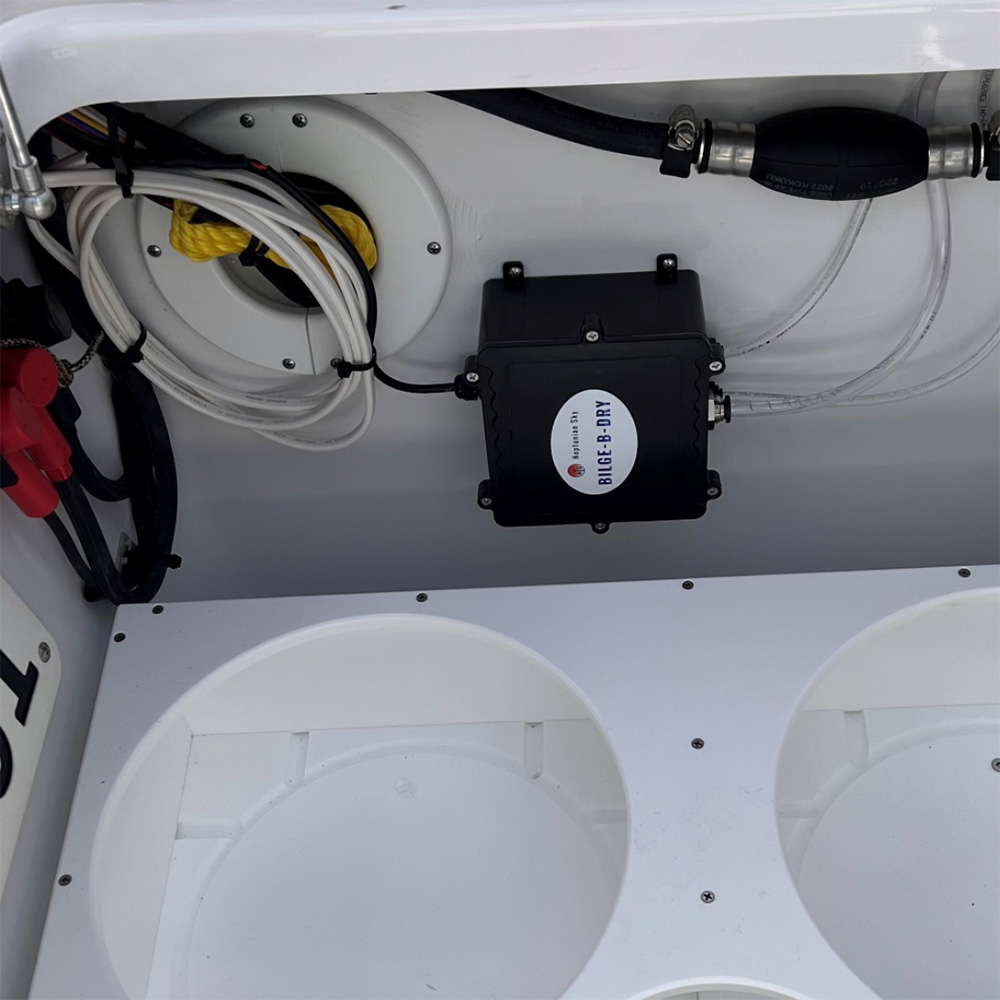

- Installs in any orientation (horizontal or vertical) for tight or awkward spaces

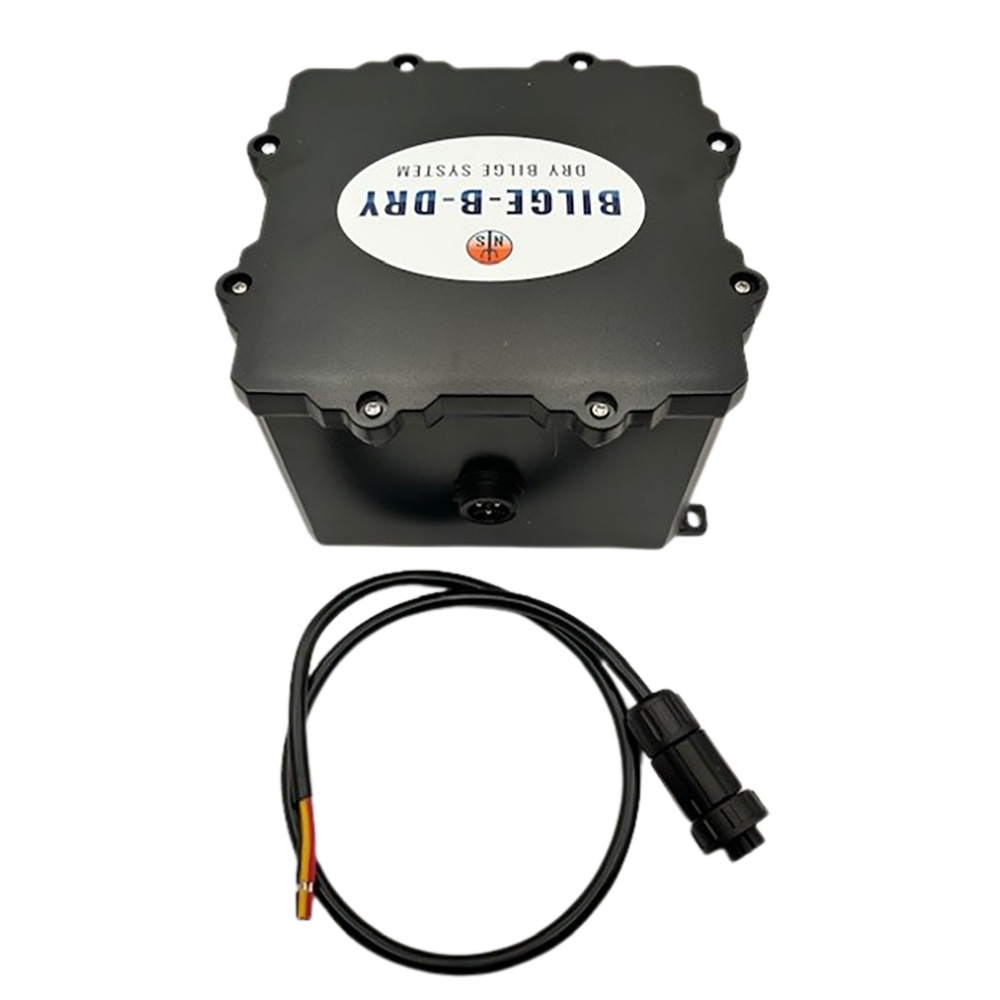

- Quick disconnect wiring harness with optional connection to helm or float switch
- Control board rated for 100,000 cycles
- Meets ISO 8846 standards for protection against ignition of flammable gases
Environmental Filtration System:

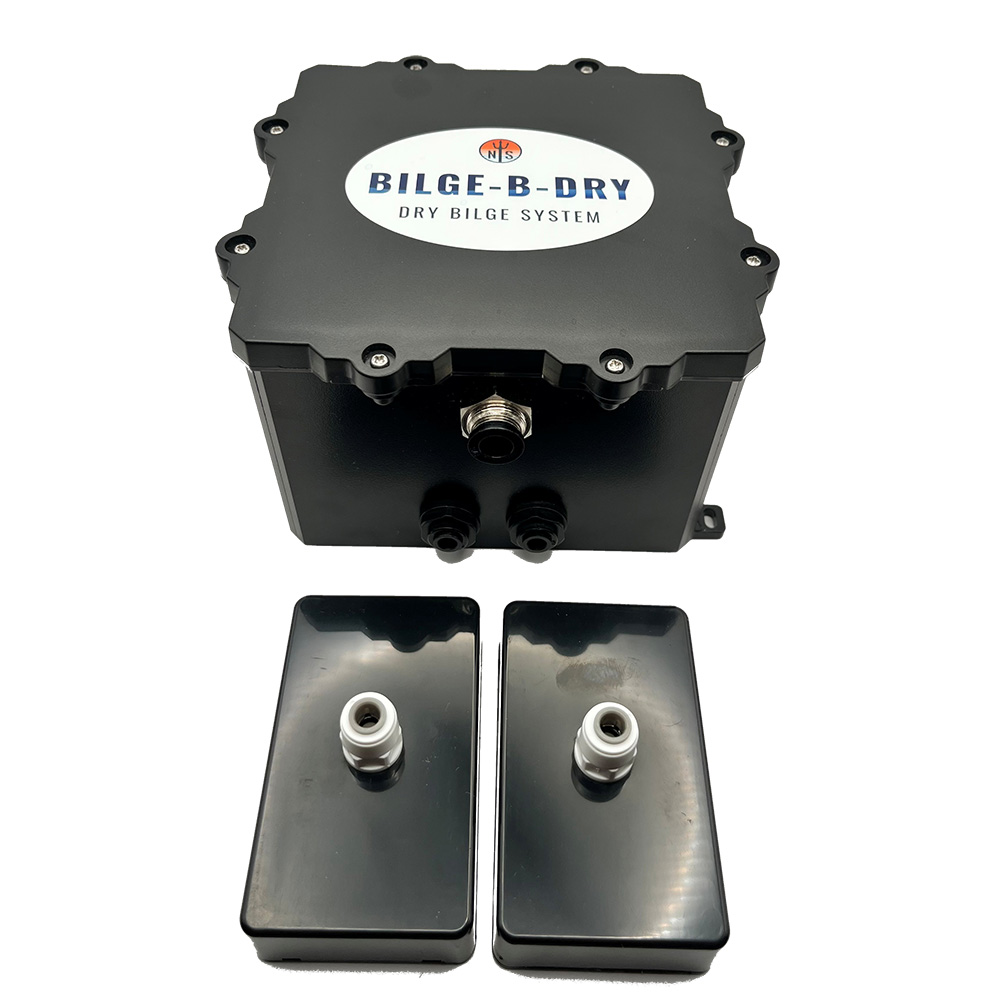

Includes low-profile bilge water pickups (0.98 inches H x 2.4 inches W x 3.9 inches L) with integrated proprietary filters that reduce harmful overboard discharge of heavy metals, solids, and petroleum. Twenty small holes along the bottom provide debris protection, eliminating the need for secondary filtration. Pickups can be placed anywhere water accumulates, including the lowest bilge areas, A/C evaporators, or hard-to-reach compartments.
What's Included:
- Two motor/diaphragm pumps with control unit
- 10 feet of input tubing (1/4 inch OD PVC/PU)
- 6 feet of output tubing (3/8 inch OD PVC/PU)
- Low-profile water pickups with replaceable filters
Note: Stainless steel hold-down bracket and inline fuse sold separately.
