Bilge-B-Dry BBD-2025-121 Smart Dry Bilge Pump System 12VDC Single Pump

The Bilge-B-Dry BBD-2025-121 is a smart device-enabled dry bilge pump system designed to completely eliminate standing water from your boat's bilge. Unlike traditional bilge pumps that cannot remove the last few inches of water, this innovative system removes every drop to eliminate cabin odors, prevent mold and corrosion, and protect electrical wiring and mechanical equipment.

Smart Control and Connectivity:

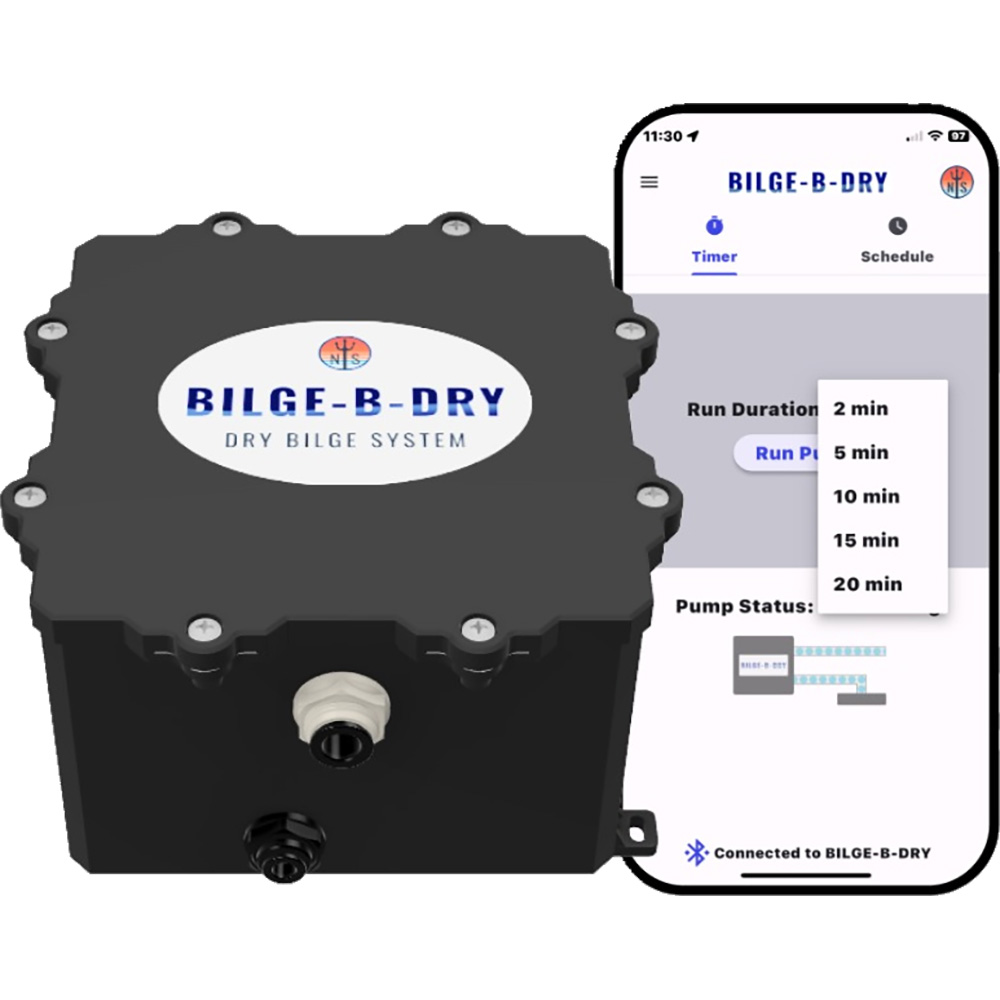

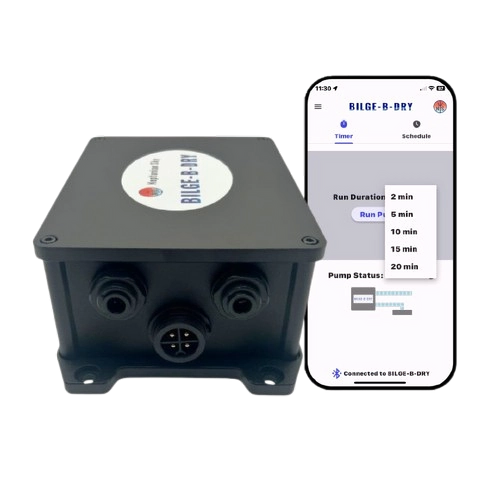

• Control via free mobile app for Apple and Android devices with customizable scheduling
• Timer mode runs up to 20 minutes on-demand for quick bilge drying
• Schedule mode allows five customizable daily run times up to 20 minutes each
• Automatic operation cycles 2 minutes every 6 hours if smart device connectivity is declined
• Optional wiring to helm switch or water sensor for manual activation
• Meets ISO 8846 standards for protection against ignition of flammable gases

Pump Specifications:

• Power: 12 VDC (operates 8-14 VDC range)
• Maximum current: 0.35 amps at 12 VDC
• Idle current: 0.05 amps
• Flow rate: 0.25 GPM maximum
• Pump head: 10 feet vertical lift
• Suction: 5 feet vertical
• Diaphragm design can run dry for extended periods without damage
• Life expectancy: Over 1,000 hours
• Control board life: 100,000 cycles

Design and Installation:

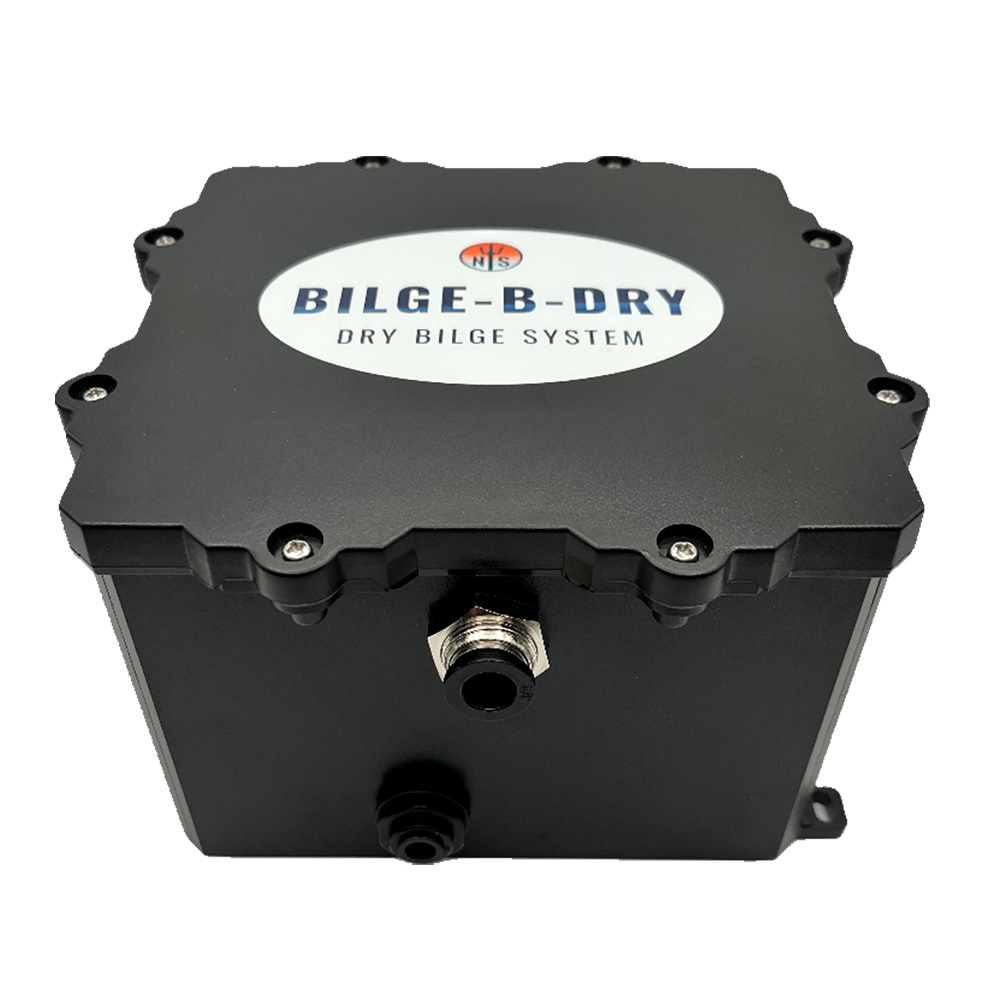

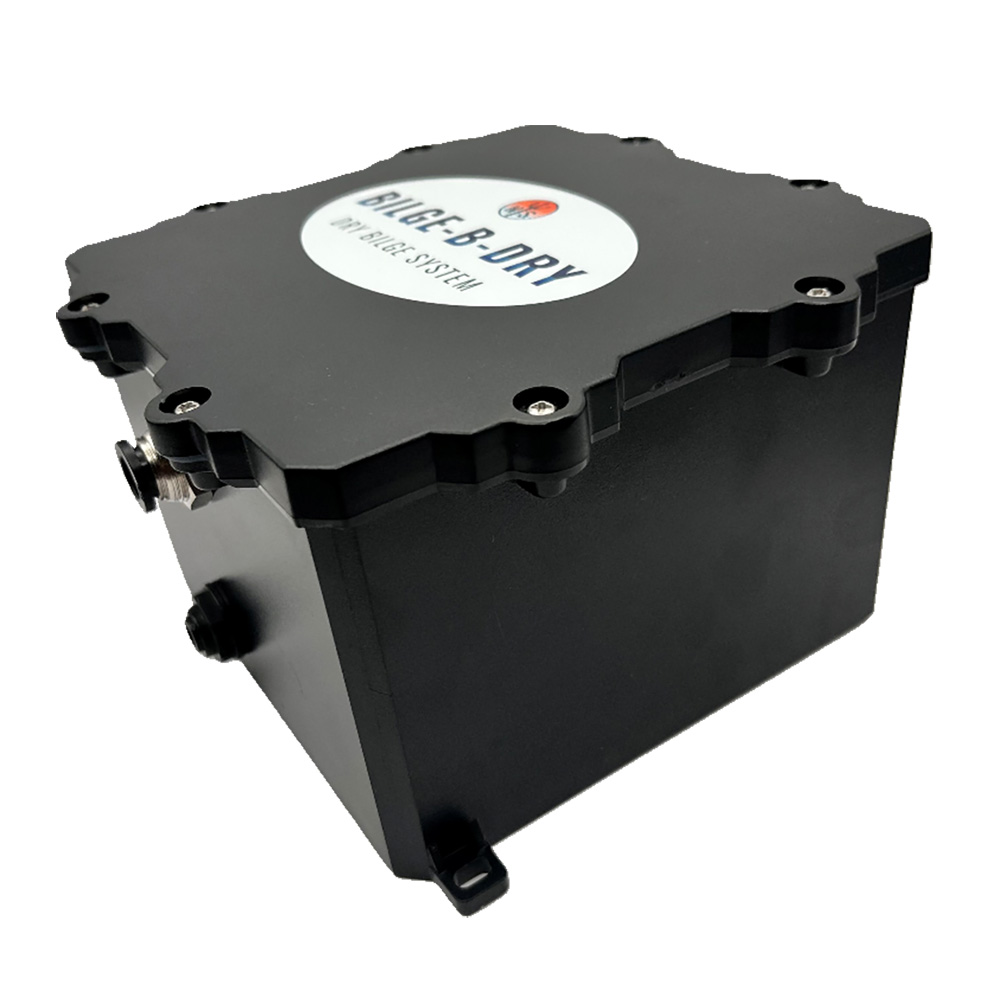

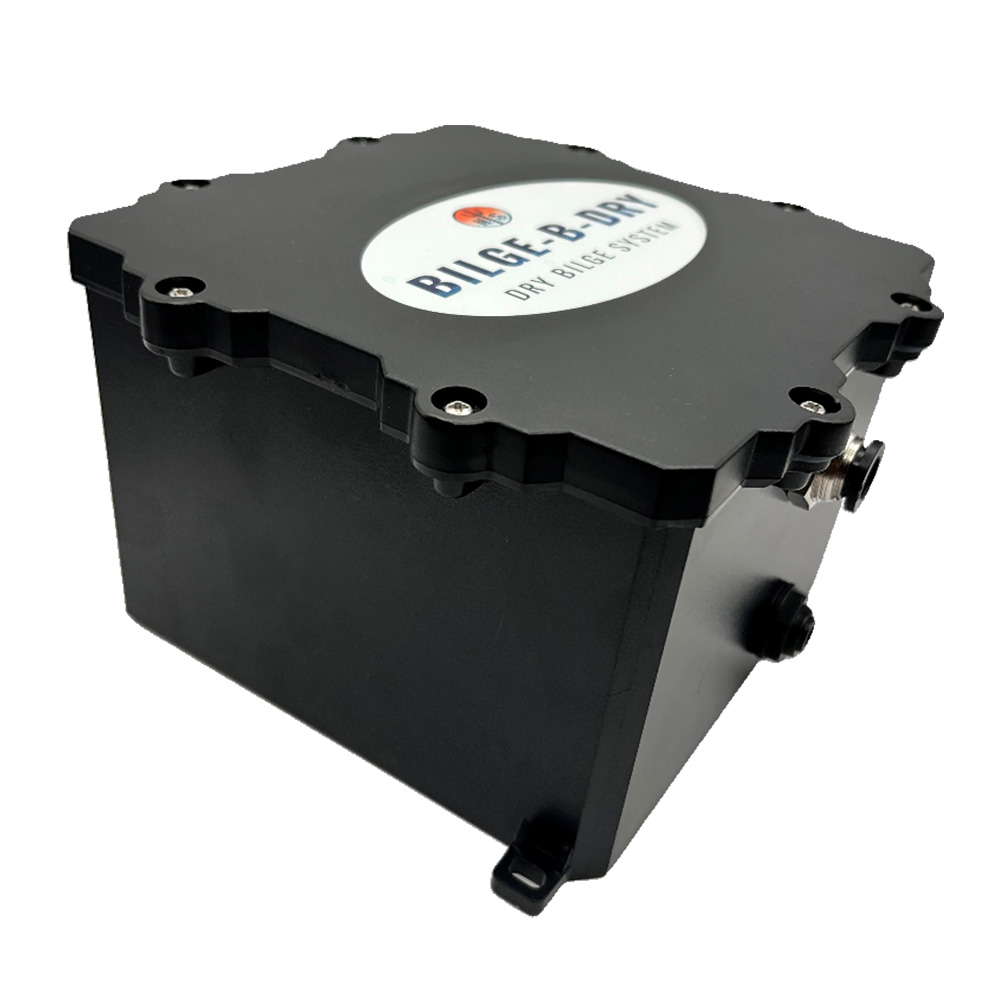

• Anodized aluminum enclosure with enhanced durability and streamlined plumbing

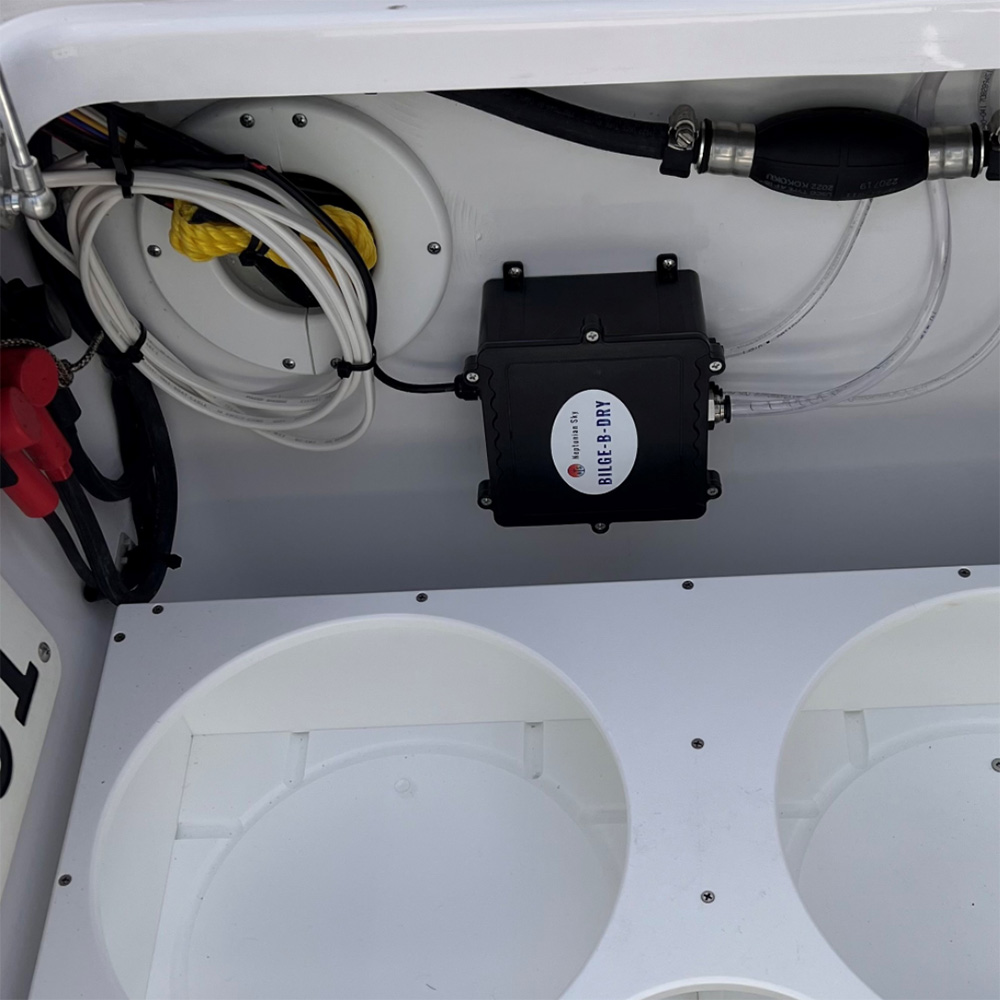

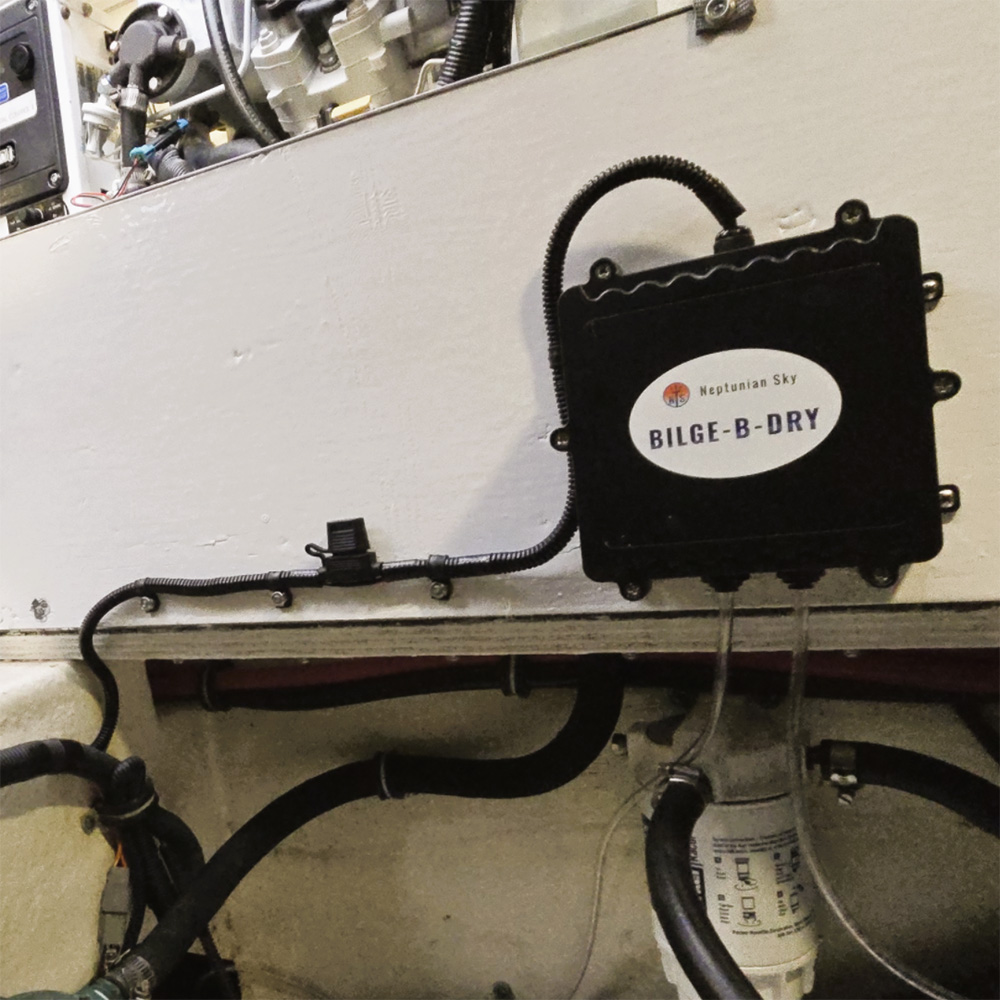

• Compact design installs in tight spaces in any orientation (horizontal or vertical)
• Four hardpoints for secure mounting in extreme conditions

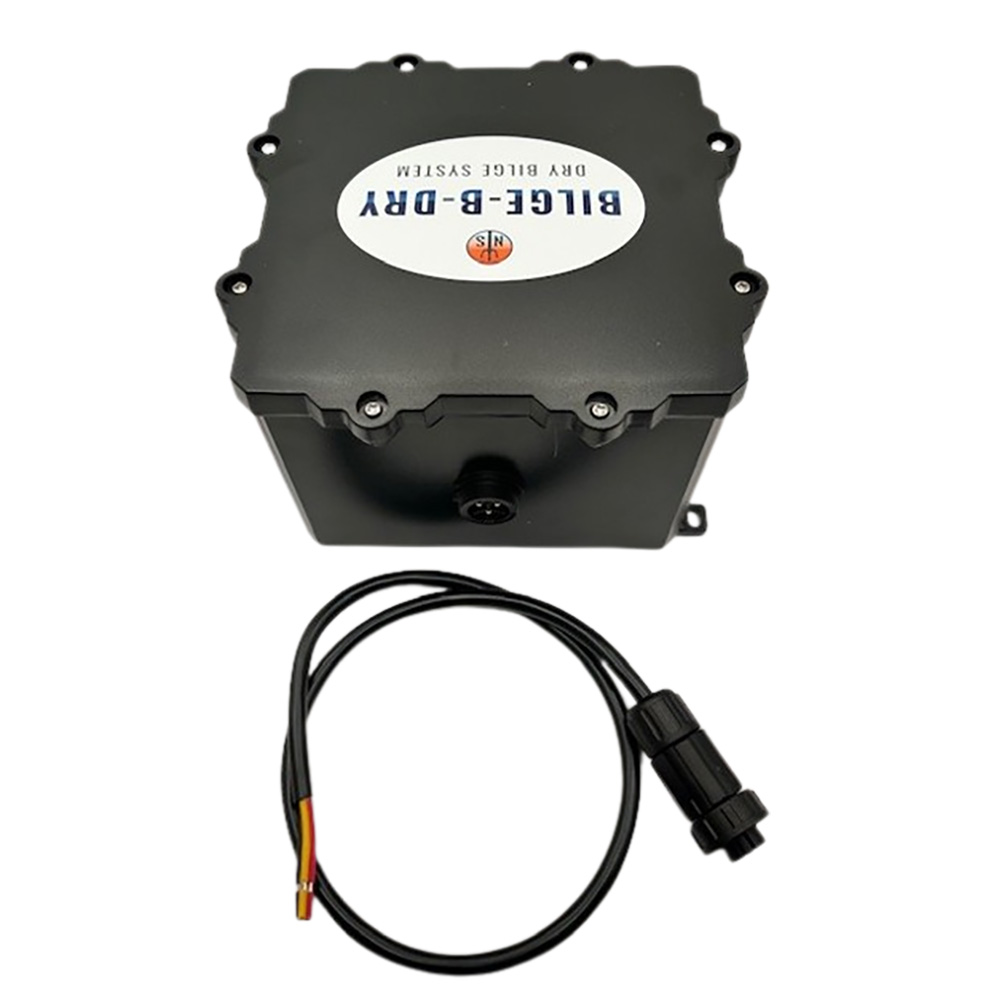

• Quick disconnect wiring harness for easy installation

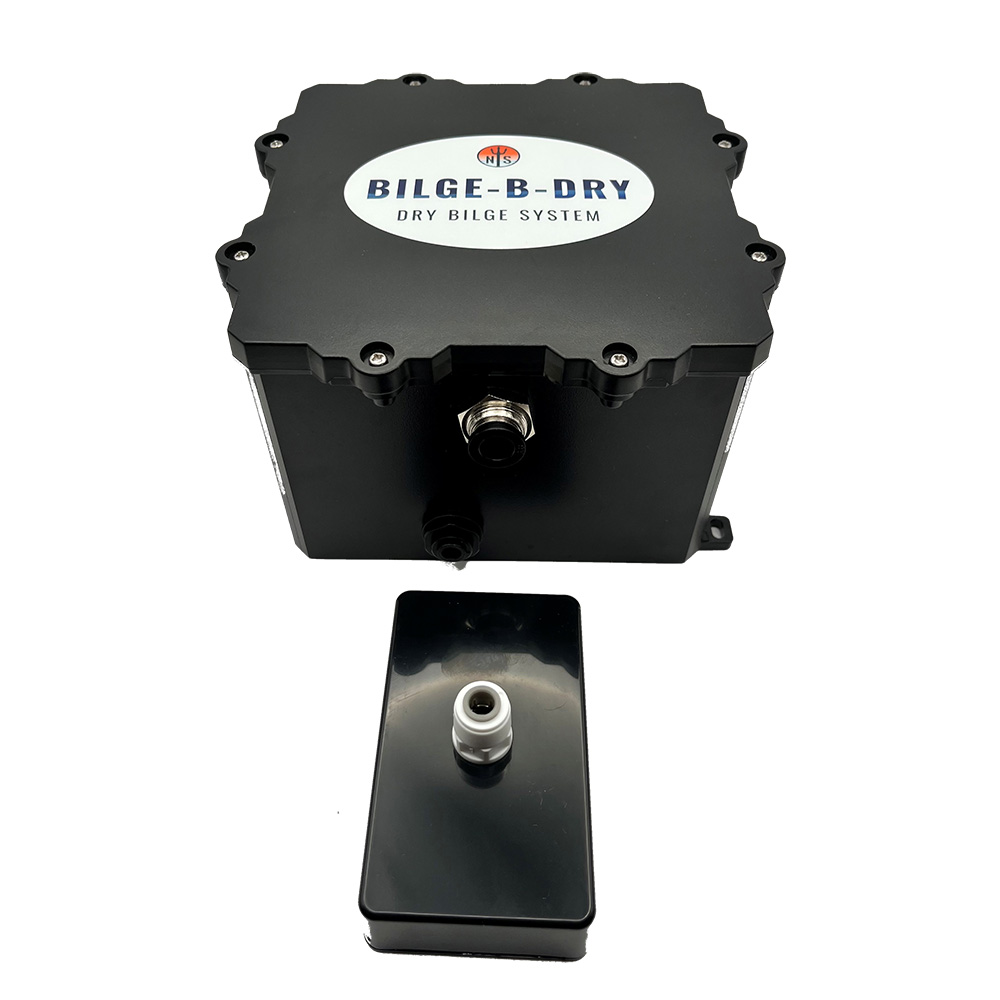

• Includes low-profile bilge water pickup with replaceable filter system
• Filter contains proprietary blend to reduce oil, heavy metals, and petroleum discharge
• Twenty small holes in pickup base provide debris barrier
• Includes 12 feet of tubing for pickup installation

What's Included: Single pump unit with anodized aluminum enclosure, low-profile bilge water pickup, quick disconnect wiring harness, and 12 feet of tubing. Stainless steel hold-down bracket and inline fuse sold separately.

Perfect for all boat types including stepped-hull designs where water accumulates forward of the step. Ideal for use after washdown, heavy rain, sea spray accumulation, rough seas, or in hard-to-reach compartments and A/C evaporator basins.
