Bilge-B-Dry BBD-2025-124 Quad Pump 12VDC Smart Dry Bilge System

The Bilge-B-Dry BBD-2025-124 Quad Pump 12VDC is a smart device-enabled dry bilge system designed to remove every last drop of water from your bilge. Unlike traditional bilge pumps that cannot reach the final few inches of accumulated water, this four-motor diaphragm pump system eliminates standing bilge water to help prevent cabin odors, mold, corrosion, and electrical damage aboard your boat.

Compatible with all boat types — including stepped-hull vessels where water collects forward of the step — this system is ideal for use after washdowns, heavy rain, sea spray, rough seas, or slow leaks.

Smart Device Control:

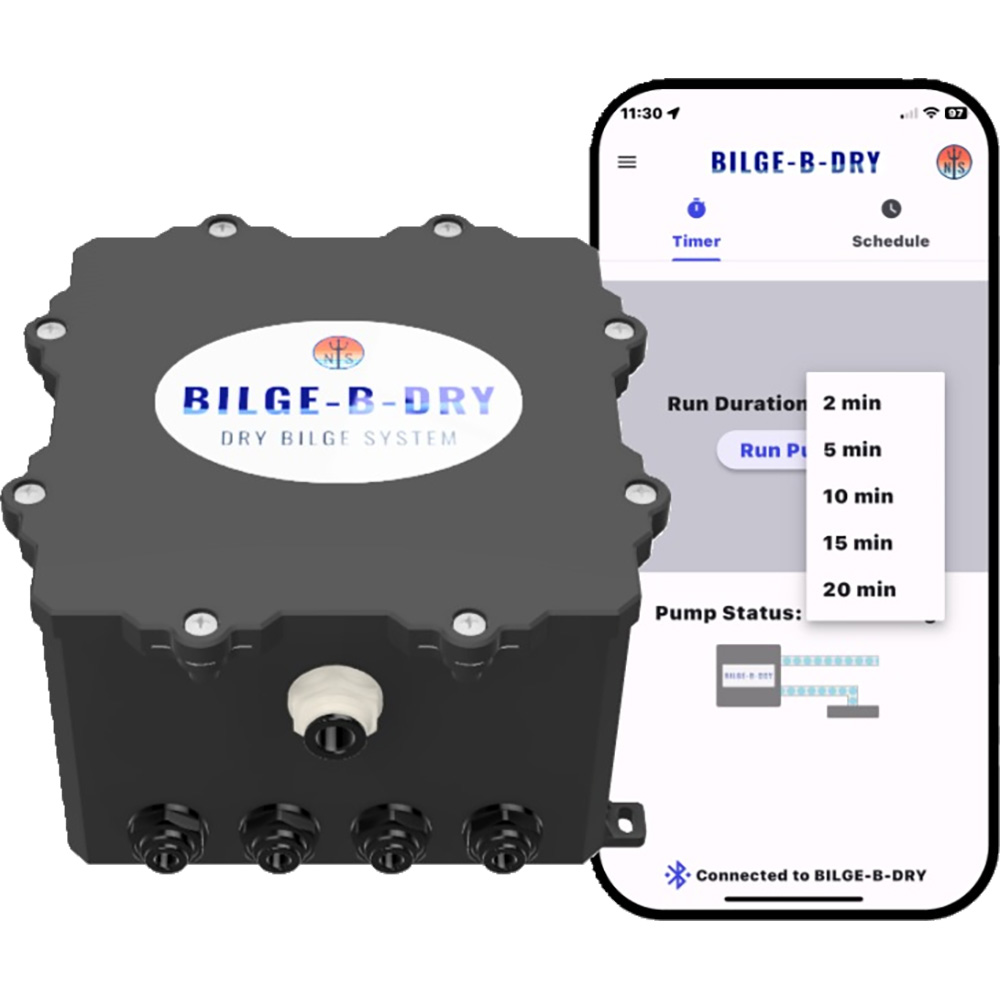

• Connect via the free Bilge-B-Dry Mobile App for Apple or Android to schedule and control pump operation remotely
• Create custom daily pump schedules (e.g., run for 3 minutes at 9:00 AM, 2 minutes at 3:00 PM)
• Use the on-demand timer to run up to 20 minutes for manual water removal
• If Smart Device connectivity is declined, the unit automatically cycles for 2 minutes every 6 hours

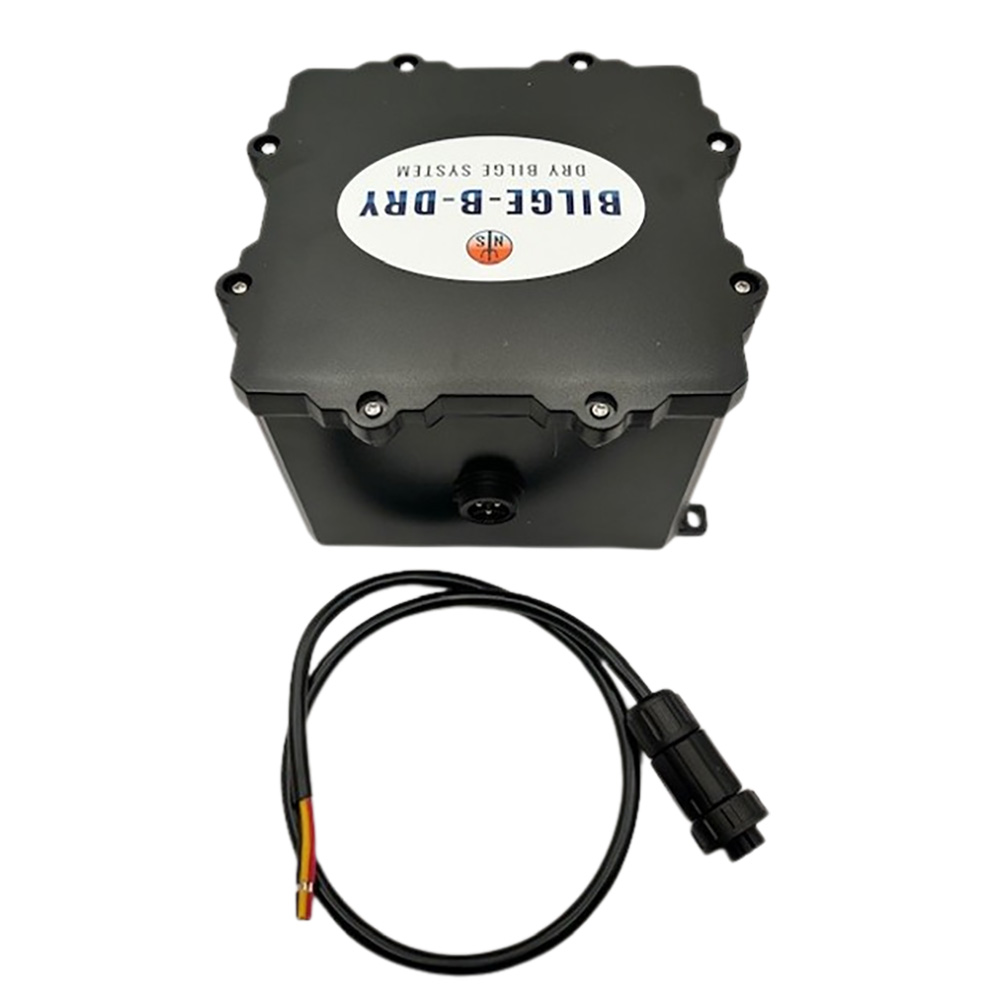

• Optional wired connection to a helm switch or float switch via quick-disconnect wiring harness

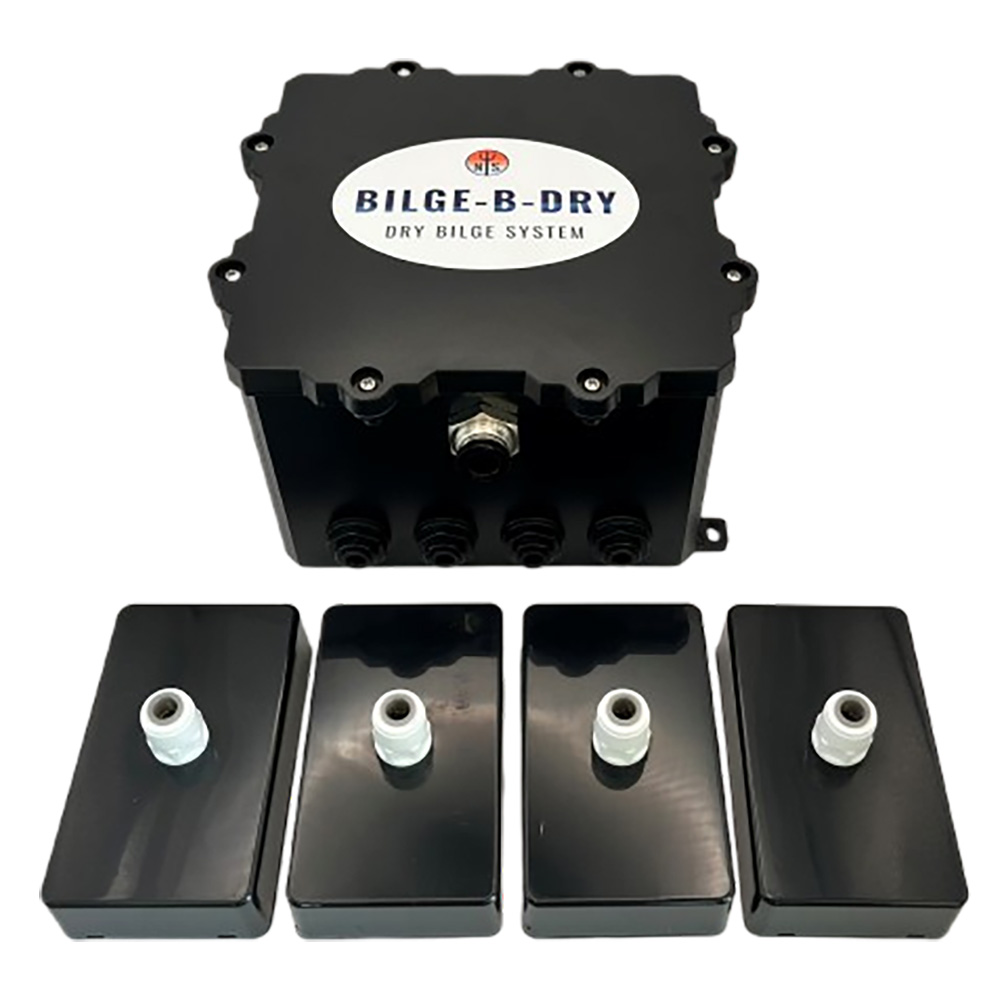

Quad Pump Configuration — What's Included:

• Four motors/diaphragm pumps
• 20 feet of input tubing (PVC or PU, 1/4" OD) for bilge pickup
• 6 feet of output tubing (PVC or PU, 3/8" OD) for discharge
• Low-profile bilge water pickups with integrated proprietary filter — no secondary filter required

Key Features:

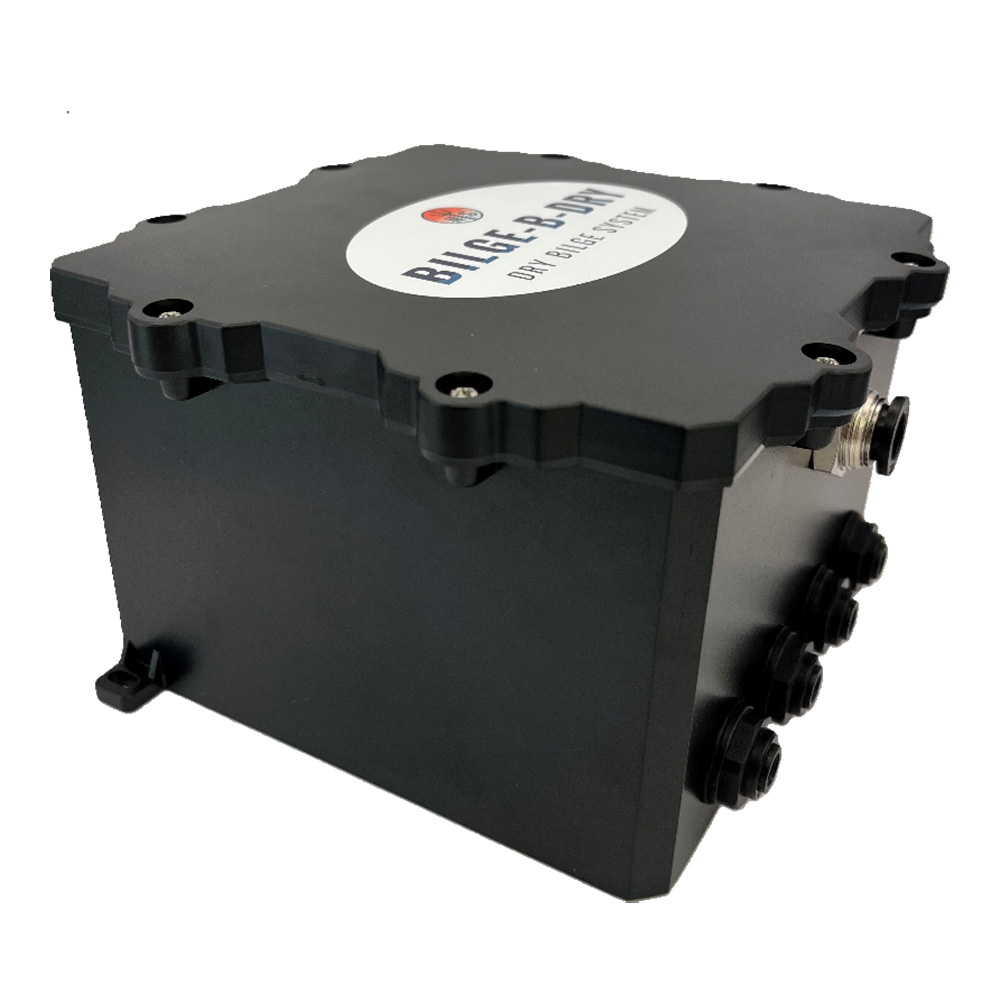

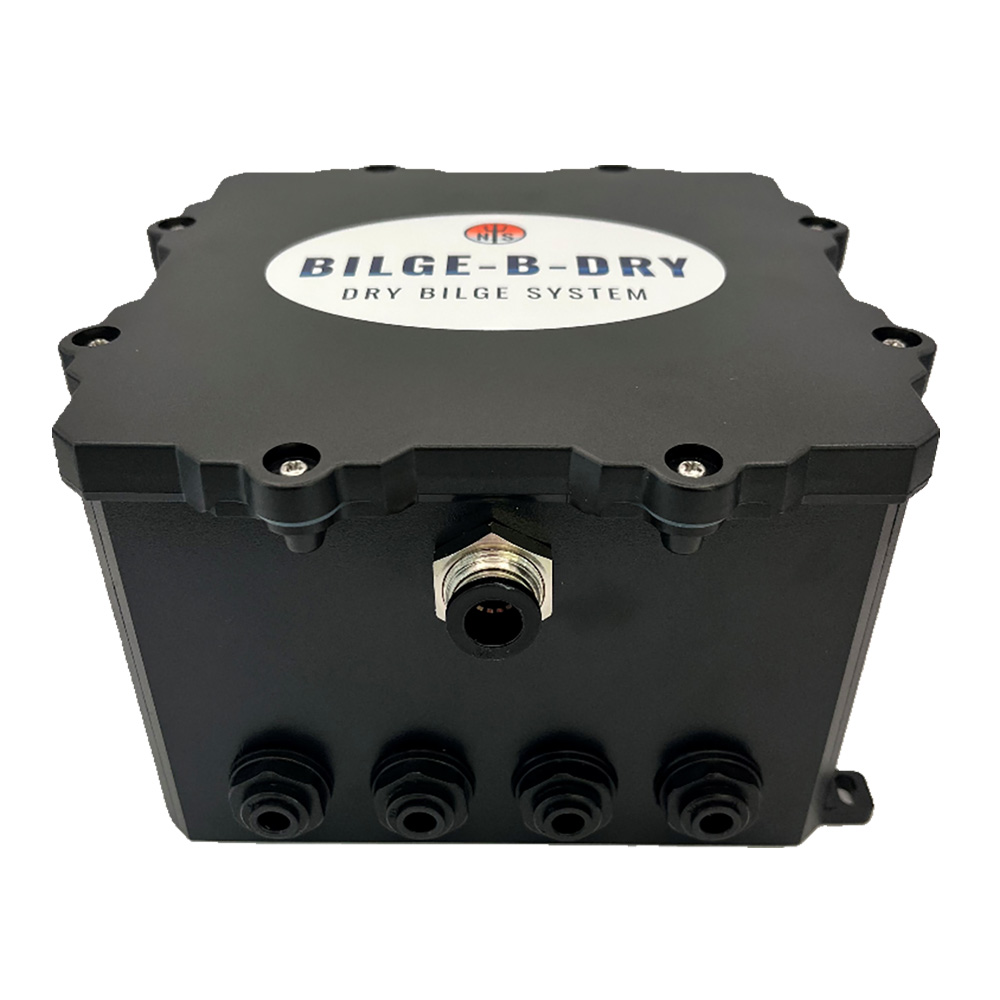

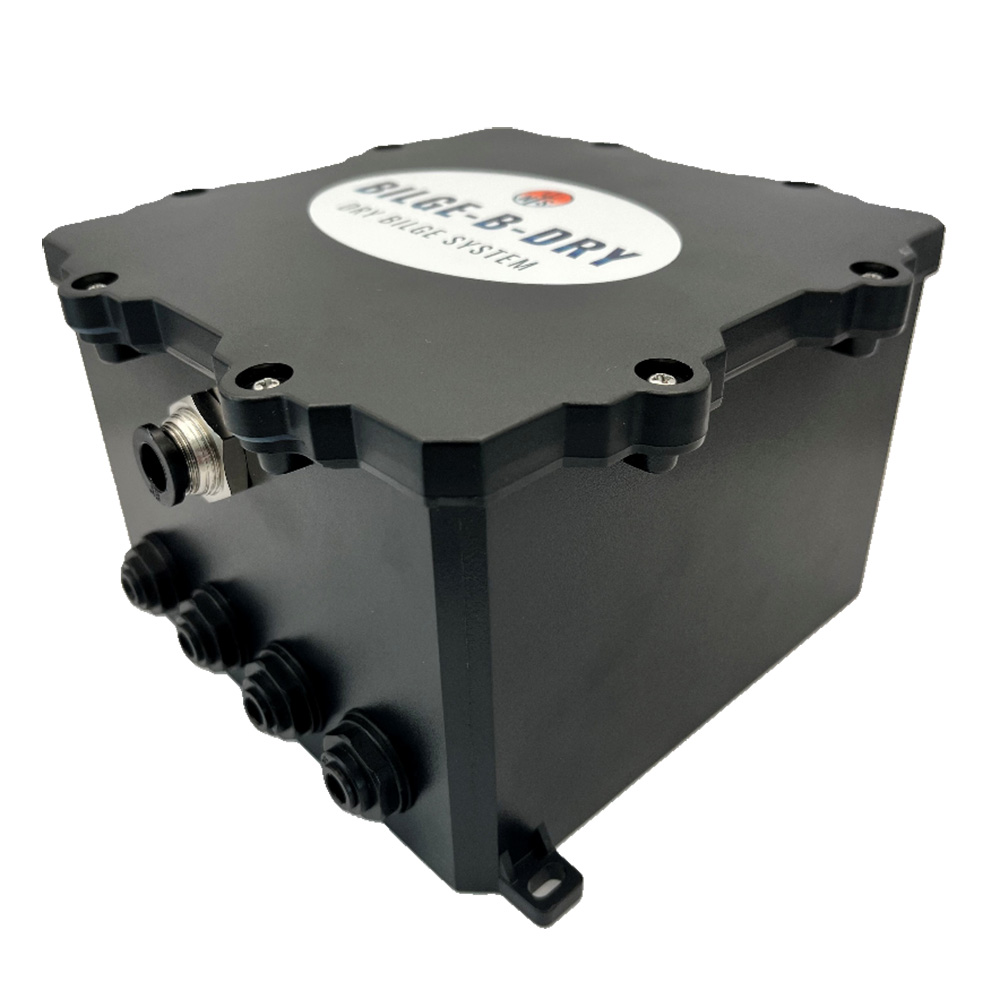

• Heavy-duty enclosure with improved durability and streamlined internal plumbing

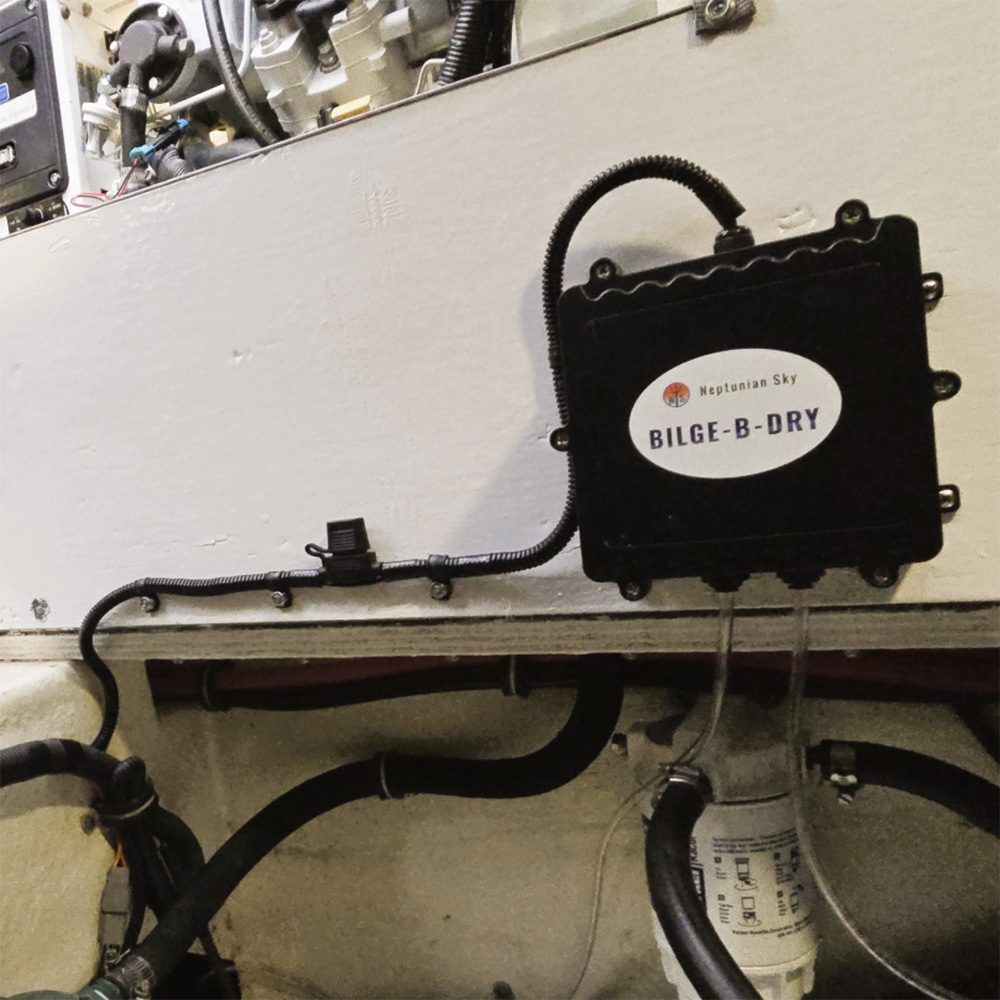

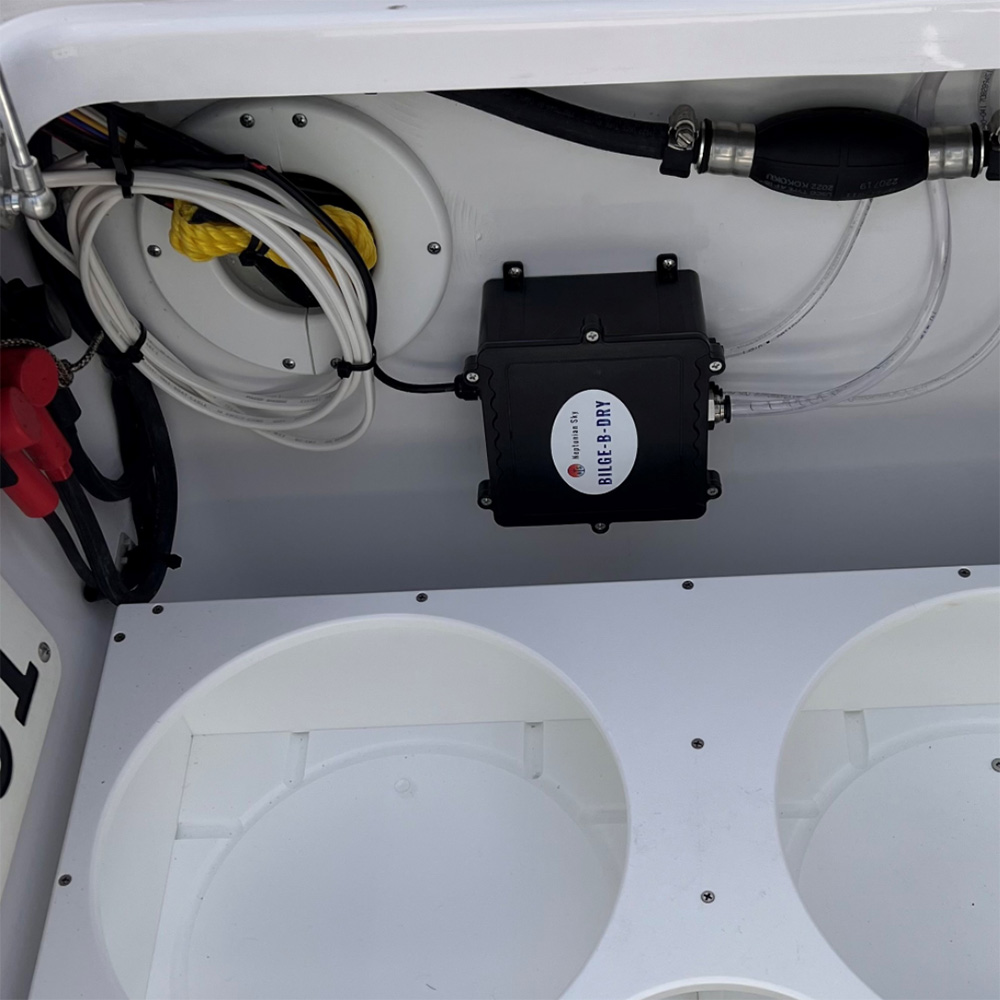

• Compact design installs in tight or awkward spaces in any orientation (horizontal or vertical)
• Diaphragm pump design can run dry for extended periods without damage (life expectancy: 1,000+ hours)
• Environmentally friendly low-profile pickup with replaceable filter reduces oil discharge
• Control board rated for 100,000 cycles; operating temperature range: -40°C to 85°C
• Wi-Fi certified: FCC Rule Part 15C

Specifications:

• Input Voltage: 12 VDC (8–14 VDC)
• Max Current: 1.4 amps (12 VDC) | Idle Current: 0.05 amps (12 VDC)
• Maximum Flow Rate: 1.0 GPM
• Pump Head: 10 feet
• Pump Suction: 5 feet (vertical)
• Enclosure Dimensions: 4.1"H x 6.8"W x 7"L
• Rectangular Pickup Dimensions: 0.98"H x 2.4"W x 3.9"L
• Weight: 2.4 lbs (not including tubing, pickup, or accessories)
• Meets ISO 8846 standards, Section 5 — Protection against ignition of surrounding flammable gases

Note: Stainless steel hold-down bracket and inline fuse are not included with this unit.
