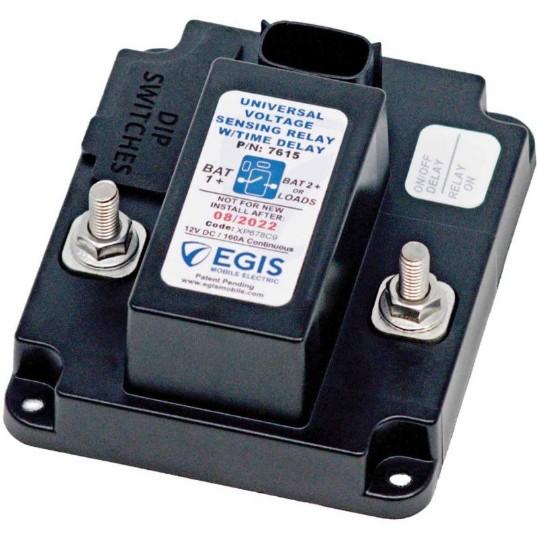

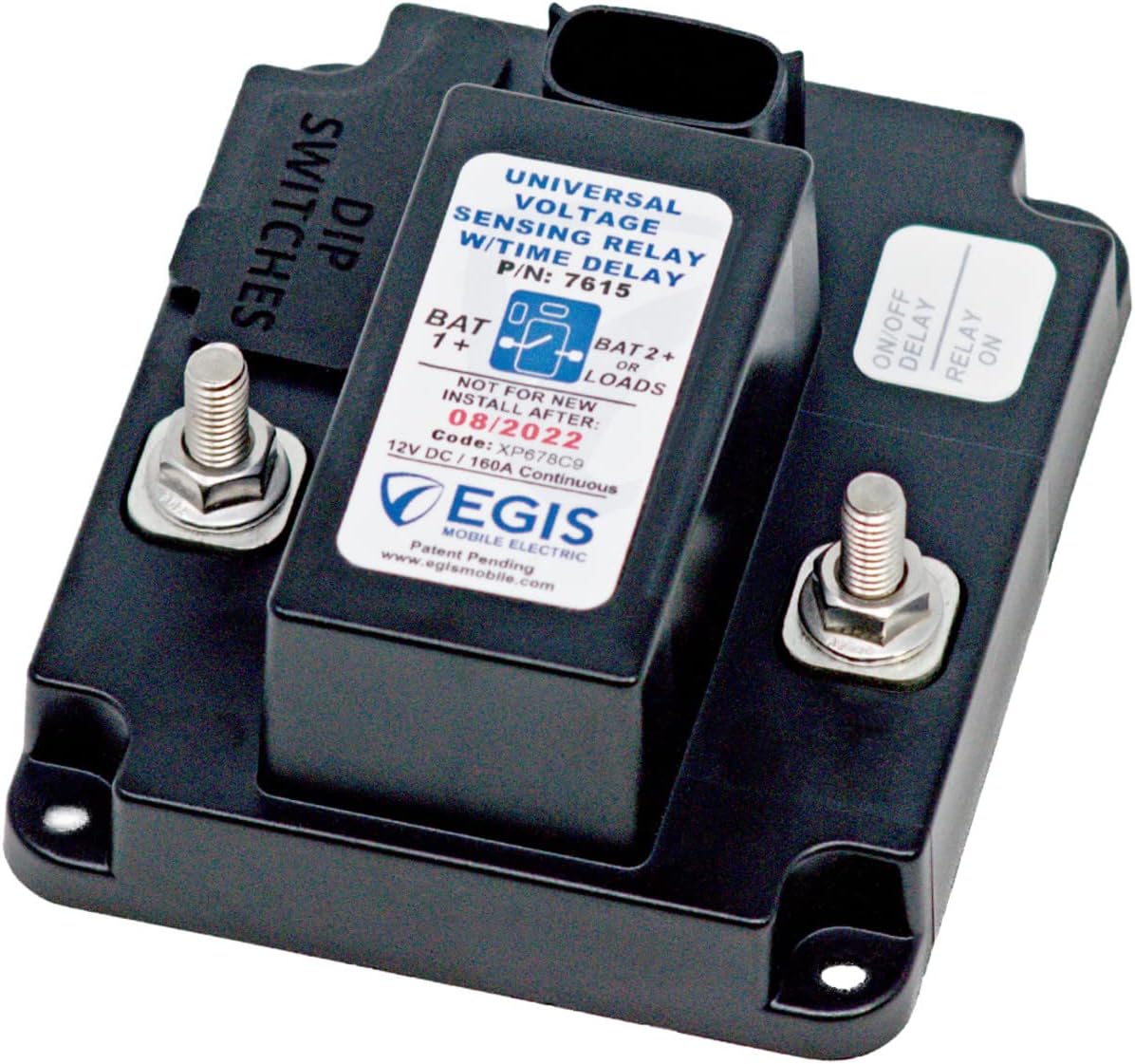

Egis Mobile Electric 7615 Automatic Timer Disconnect 160A 12V Battery Disconnect

The Egis Mobile Electric 7615 is an automatic timer disconnect (battery disconnect / time delay relay) rated for 160 A at 12V. It helps keep auxiliary loads from draining the battery. Power stays available after the engine is turned off or at the end of a shift, then switches off automatically after a preset time or when battery voltage is low.

Key Features:

• 160 A, 12V rating
• Adjustable optional OFF time delay from 0 seconds to 4 hours
• Ultra-low off-state current draw of 1.3 mA
• Can be installed as a time delay relay, battery management relay, low voltage disconnect, or simple relay
• On/off trigger by external ignition signal and/or alternator voltage sense, with adjustable low voltage protection levels
• Optional under/over voltage shutdown and start event isolation to protect sensitive on-board electronics
• Diagnostic feedback through on-board LEDs and an optional external LED
• Combined timer and high-amp relay, which reduces installation time
• Sealed plug/harness included
• Optional output bus bar connects RT or CT fuse blocks
• Sealed unit made from high-temperature materials, with integrated thermal overload protection
• Meets stringent OEM standards for electrical transient self-protection
