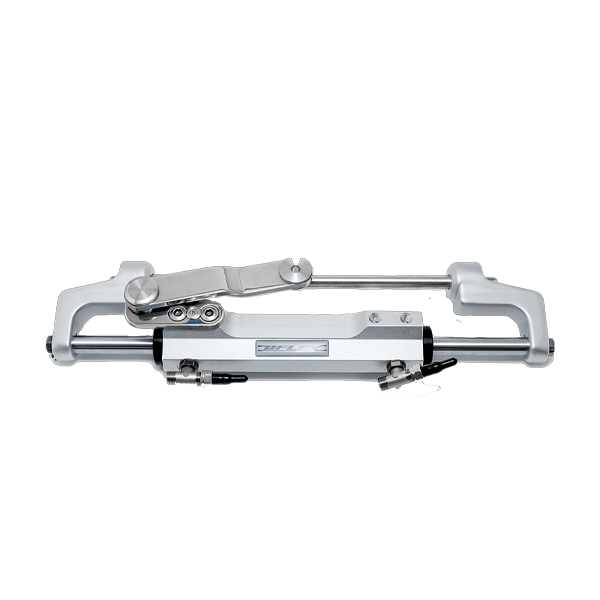

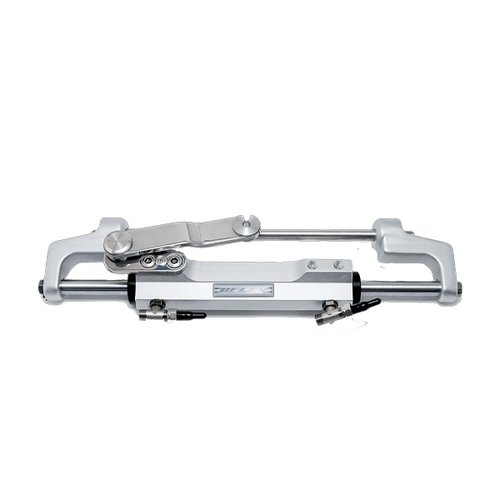

Uflex UC128TS-SVS 1 SilverSteer High Performance Front Mount Hydraulic Steering Cylinder

The Uflex UC128TS-SVS 1 is a high-performance front mount balanced hydraulic steering cylinder specially designed for high torque applications, recommended for bass boats, flat boats, and tournament fishing boats. This SilverSteer cylinder is built with heavy duty stainless steel cylinder rod, seals and link assemblies, and is simple to install and fits almost every 2 and 4 stroke outboard engine on the market.

Key Features:

• 1.37-inch bore with 7.28-inch stroke and 120cc volume capacity
• Output force of 992 lbs (450 kg) for powerful steering performance
• Adjustable boss style fittings for easy, leak-free installation
• High-strength ULTRABOLT stainless steel tiller bolt connection
• 3/8-inch fitting for high pressure flex hose with DN5 quick bleed fittings
• Version 1 features straight link arm attached to starboard side

The UC128TS-SVS cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and preassembled hoses. This cylinder is ideal for boats with combined engine horsepower over 500 HP. For dual cylinder installations, a standard UC128TS-SVS cylinder and a port UC128P-SVS cylinder are required along with an A90 tie bar.
