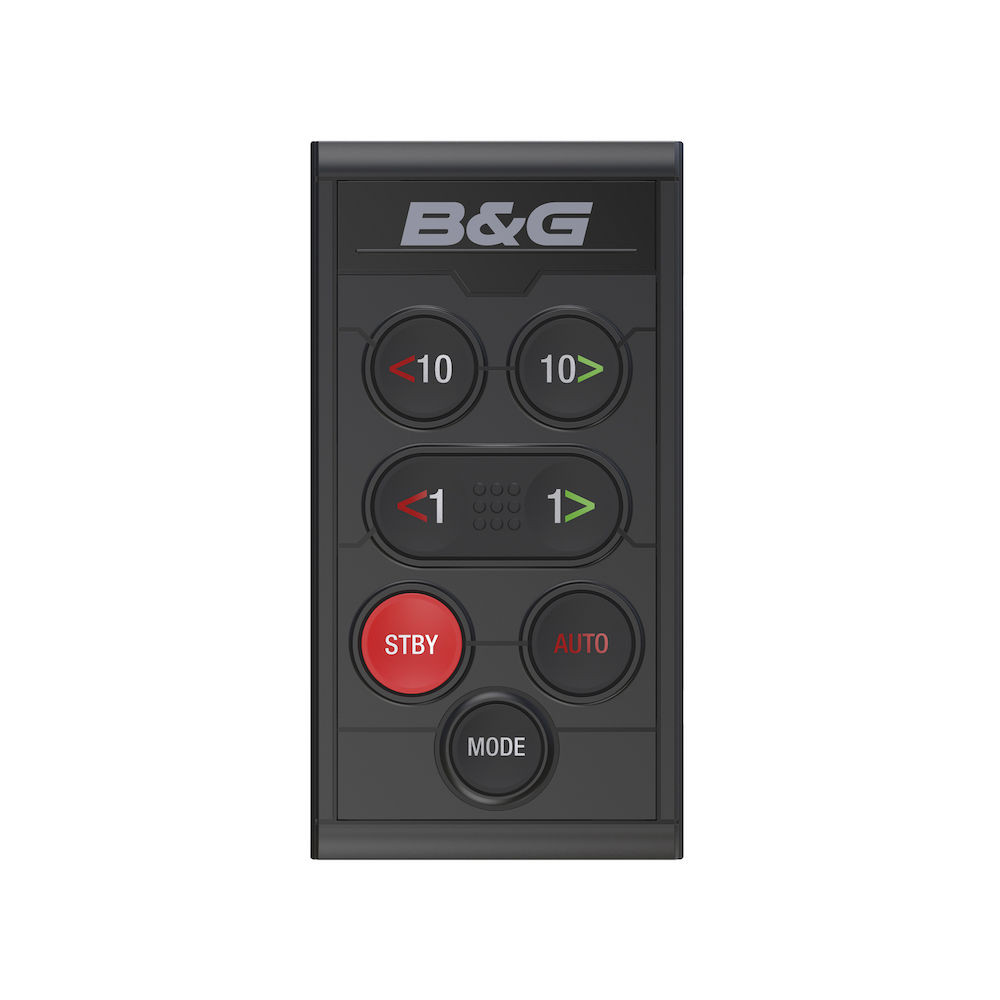

Lowrance 000-13296-001 Triton2 Autopilot Controller Keypad for Marine Navigation

The Lowrance Triton2 Autopilot Controller is a professional-grade seven-button keypad designed specifically for sailors who demand reliable autopilot control in demanding marine conditions. This intuitive keypad combines with a B&G Triton2 Display to create a fully-featured autopilot controller, delivering intelligent sail-specific functionality for precise vessel control.

Key Features:

• Intelligent Sail Steering functionality allows steering to a compass heading or automatically maintaining a specified true or apparent wind angle in Wind mode
• Smart Manoeuvre controls tack at the touch of a button, perfect for sailing shorthanded
• Navigation mode connects to compatible chartplotters to steer to selected waypoints or routes
• Dedicated AUTO and STANDBY buttons enable or disable the autopilot with a single press
• Dual port and starboard buttons allow course adjustments in one-degree or ten-degree increments
• Simple pushbutton interface is easy to operate in rough conditions and reliably responsive to wet or gloved hands
• Single-cable NMEA 2000 connectivity provides both power and data through one connection
• Multiple keypads can be installed to offer autopilot control from anywhere on board

Technical Specifications:

• Dimensions: 115 x 60 x 35mm (4.5" x 2.4" x 1.4")
• Weight: 0.15kg (0.33 lbs)
• Power Consumption: 1.4 Watts
• Network Load: 3 LEN on NMEA 2000 network
• Operating Voltage: 9-16V DC via NMEA 2000
• Waterproof Rating: IPX7
• Connector Type: Micro-C (NMEA 2000)
• Compass Safe Distance: 300mm (1.0")

What's Included:

• Triton2 Controller, Micro-C drop cable, Micro-C T-connector, mounting screws, bezel, suncover, and documentation

Compatible with B&G or Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers. This controller is designed for marine vessels requiring dedicated autopilot control at the helm or secondary steering positions, where quick AUTO to STANDBY changes and precise course adjustments are essential for safe navigation.
