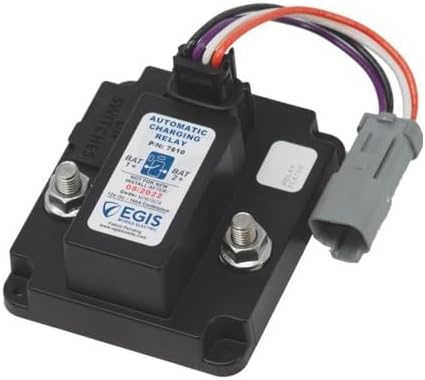

Egis Mobile Electric 7610-24 Automatic Charging Relay Plus 160A 24V

The Egis Mobile Electric 7610-24 Automatic Charging Relay Plus (ACR) is a 160A, 24V battery isolator relay. It helps prevent dead-start batteries. It shares charging between two batteries, and it isolates them when no charge source is present.

Key Features:

• 160A continuous current rating at 24V, with a 240A interrupt current rating
• Two independent charge systems: supports multiple engines or independent charging sources
• Low standby draw: the relay uses 1.3 mA, so it will not deplete batteries during extended electrical system downtime
• Fault protection: an optional lock-out stops the relay from closing if one terminal is connected to a battery with a shorted cell, which helps guard against cascading electrical faults
• Adjustable setup: top-side dip switches and LED diagnostics
• Sealed I/O connector: an integral Molex MX-150 connector avoids the corrosion and vibration problems of 1/4" quick-connect terminals
• Connection: comes standard with a Deutsch DT/AT style connector harness
• Durable build: self-retained cover, stainless steel self-locking hardware and corrosion-resistant non-ferrous materials

This automatic charging relay is suited to marine, RV and other 24V dual-battery systems. It is also called a voltage sensitive relay or battery isolator.
