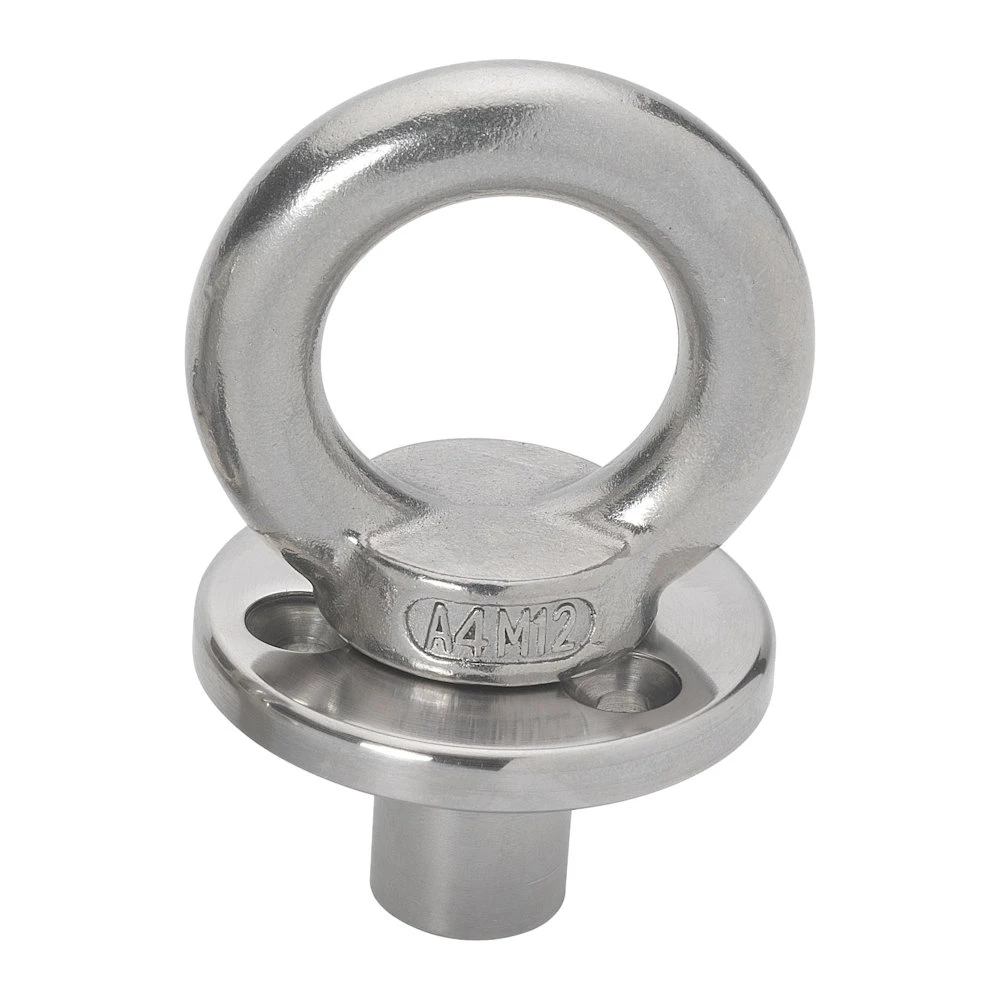

Barton Marine 60362 Flush Mount Deck Plate with M12 Eye and Blanking Plug

The Barton Marine 60362 is a premium flush mount deck plate designed for versatile marine applications on sailboats and powerboats. Precision-turned from solid bar 316 stainless steel and finished with a high polish, this deck plate features a center M12 metric threaded anchoring hole with an included removable fixing eye and stainless steel blanking plug.

Key Features:

• Machined from solid 316 grade stainless steel bar for maximum strength and corrosion resistance
• Highly polished finish provides an attractive appearance when installed
• M12 threaded center hole with included fixing eye attachment
• Sealed internal thread design prevents water ingress below deck
• Mounts virtually flush to deck surface using three fixing bolts, minimizing trip hazards
• Includes stainless steel blanking plug (grub screw) to seal thread when eye is removed
• Overall diameter: 50mm (1-15/16"), spigot depth: 22mm (7/8"), spigot diameter: 17mm (11/16")
• Safe Working Load (SWL): 2,500 kg (5,500 lbs)

Applications:

This versatile deck plate supports numerous marine uses including temporary fixing eyes, boat tie-downs, deck-mounted boarding ladders, stand-up blocks, davit mounts, life raft holders, dive tank securing, and many other applications where a strong, removable attachment point is needed.

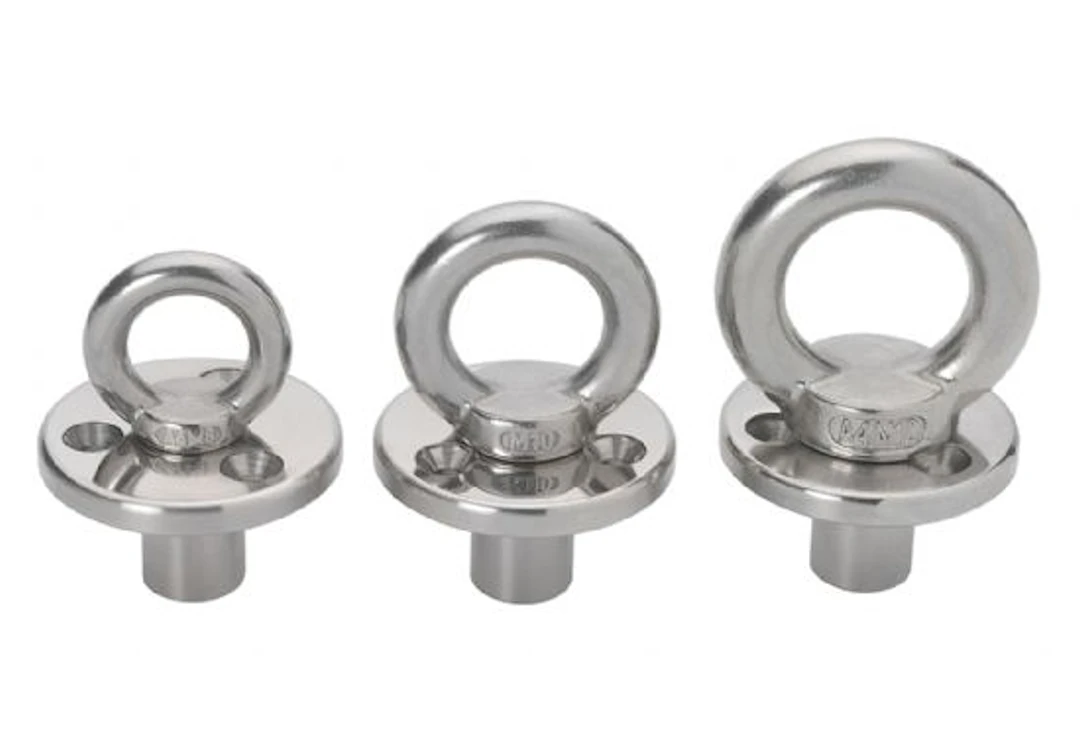

Launched in 2023 as part of Barton Marine's expanded flush mount deck plate range, this product combines traditional British engineering quality with modern manufacturing techniques. The one-piece construction ensures maximum strength while the flush installation design enhances both safety and aesthetics on deck.
