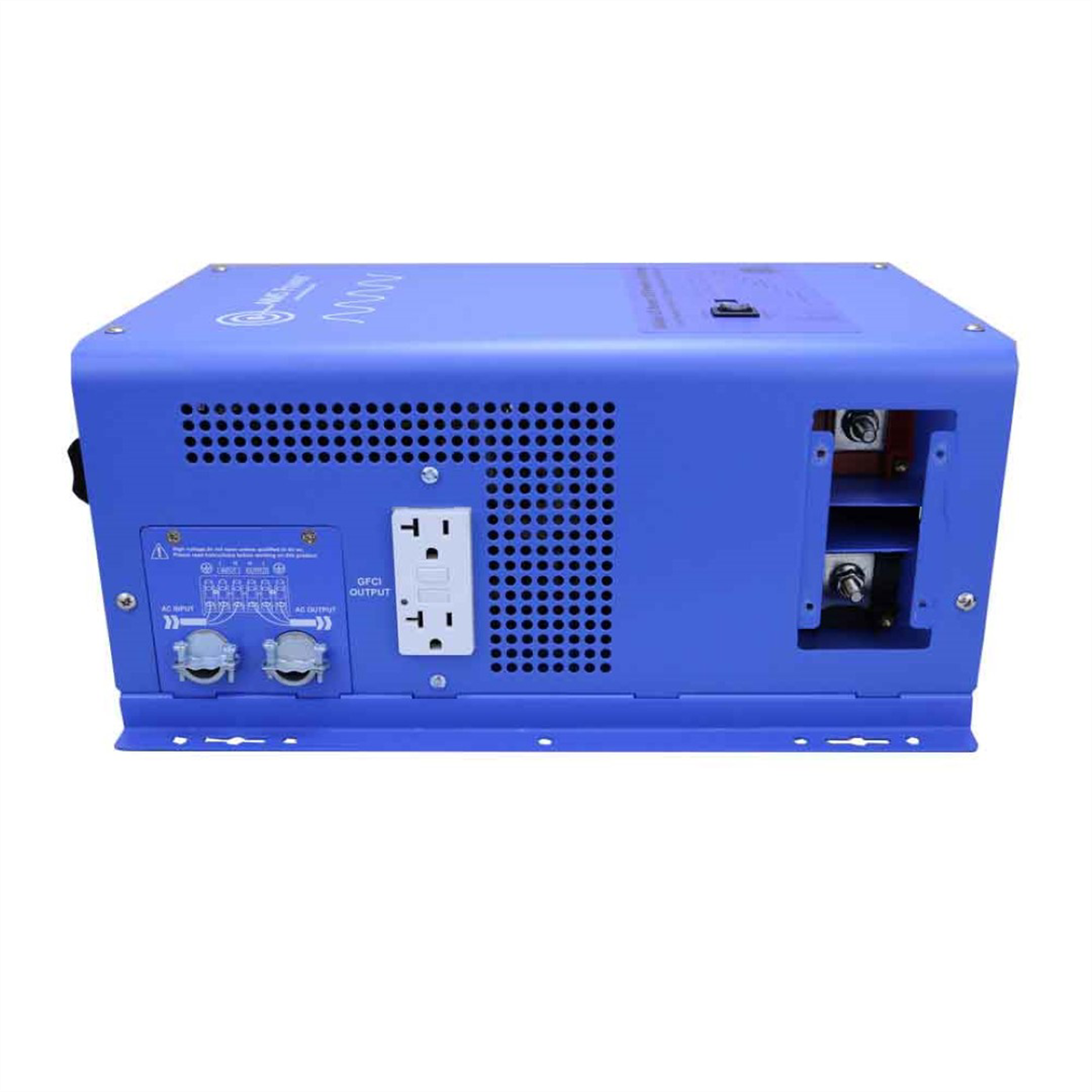

AIMS Power PICOGLF30W12V120V 3000W Pure Sine Inverter Charger 12VDC to 120VAC ETL Listed

The AIMS Power PICOGLF30W12V120V is a 3000 watt pure sine wave inverter charger that converts 12 VDC battery power to 120 VAC. It combines an inverter, a multi-stage battery charger and an AC auto-transfer switch in one system, and is ETL listed to UL 458 standards. It suits backup power and renewable energy applications.

Key Features:

• 3000 watt low frequency pure sine wave inverter, 12 VDC input to 120 VAC output
• 9000 watt surge capability (3x) for up to 20 seconds, supporting inductive loads and tools
• Peak DC and AC conversion efficiency of 92%
• Multi-stage smart battery charger rated 12 volts at 100 amps, with 7 battery type settings
• Power factor corrected charger that draws 20-30% less energy from AC input than a standard charger, helping avoid nuisance breaker trips and generator overloads
• Battery temperature sensing for more precise charging
• Battery priority selector and AC direct connect terminal block
• 15 amp GFCI
• Auto generator start and auto frequency detection
• 10 ms typical transfer time
• Ultra-low idle consumption of roughly 1.5% of rated power
• Marine coated and protected
• Optional remote panel available

How It Works: In AC priority mode, the load transfers automatically to the inverter output when utility AC power is lost, and returns to utility power once qualified AC is restored. In battery priority mode, set with the DIP switch, the inverter draws on external power sources in renewable energy systems and requires only minimal battery cycling. With auto generator start, a generator can be integrated as a backup and started when battery voltage runs low.
