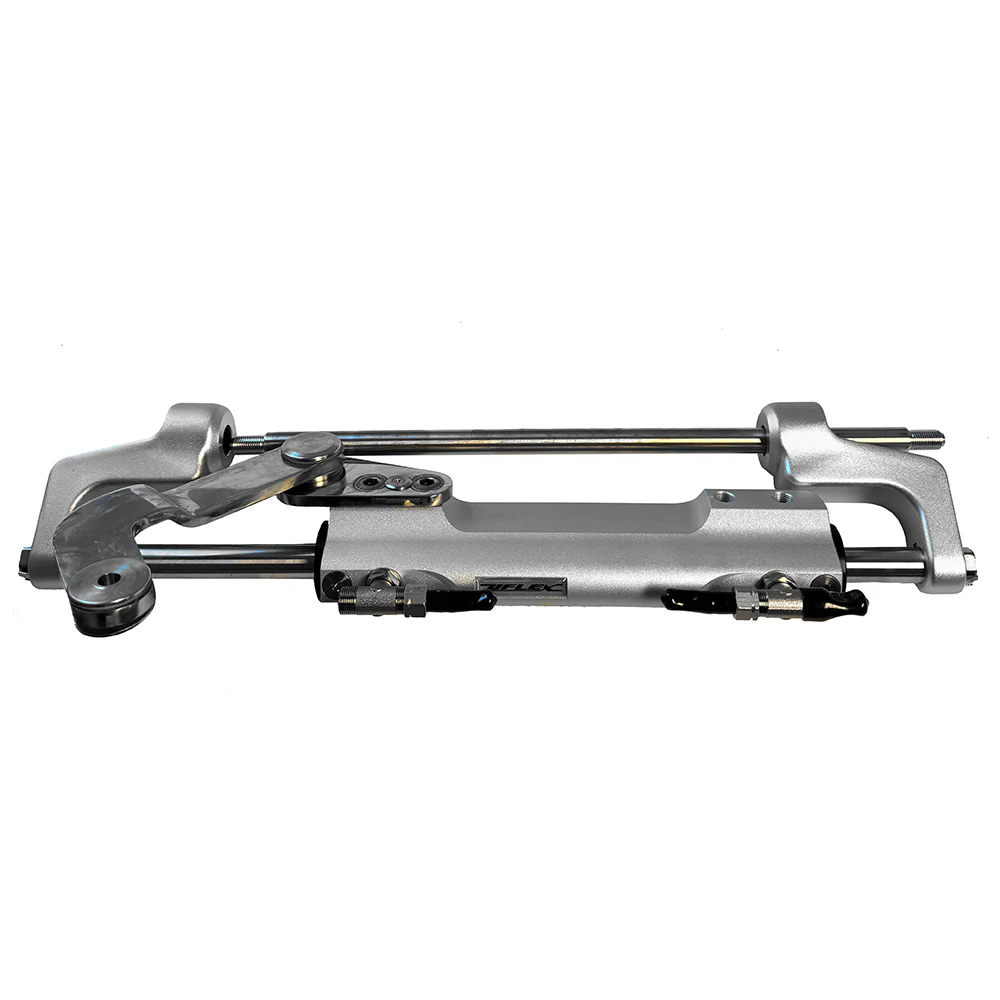

Uflex UC128TS-SVS 3 SilverSteer High Performance Hydraulic Steering Cylinder V3 Angled Offset Link Arm

The Uflex UC128TS-SVS 3 is a high-performance front-mount hydraulic steering cylinder specifically engineered for bass boats, flats boats, and tournament fishing applications where precision control and durability are essential. This V3 model features a Type 3 angled offset link arm designed to fit almost every 2-stroke and 4-stroke outboard engine on the market.

Key Features:

• Heavy-duty stainless steel cylinder rod, seals, and link assemblies built for lasting durability
• Compatible with competing helms, hoses, and hydraulic oil for versatile installation
• Easier to service than previous UC128-SVS models with same cylinder performance
• Balanced design ensures equal wheel turns lock-to-lock from port to starboard
• Adjustable boss style fittings and high-resistance stainless steel ULTRABOLT connection
• Replaceable cylinder end caps for extended service life

Technical Specifications:

• Volume: 120 cc (7.3 cu in)
• Output Force: 450 kg (992 lb)
• Inside Diameter: 35 mm (1.37")
• Stroke: 185 mm (7.28")
• Fitting for high pressure flex hose: 3/8" (9.5 mm)
• Bleed Fittings: DN5 quick connect

The UC128TS-SVS cylinders are recommended for use with UP25, UP28, UP33, and UP39 series helms and preassembled hoses (Kit OB and Kit OB/R5). Not recommended for installations where boat speed exceeds 69 mph (60 knots); 75 mph (65 knots) in dual engine, dual cylinder applications.

Installation Note: The UC128-SVS is available in 3 versions (V1, V2, V3) - refer to the Uflex application guide to select the appropriate cylinder version for your specific outboard engine. For dual engine setups, you'll need both a standard starboard cylinder and a port cylinder, plus an appropriate tie bar.
