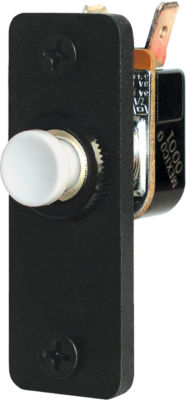

Blue Sea Systems 8200-BSS Momentary Push Button Panel Switch OFF-(ON)

The Blue Sea Systems 8200-BSS is a momentary push button panel switch designed for marine and powersports applications requiring switching action other than standard ON-OFF operation. This single pole single throw (SPST) switch features OFF-(ON) operation, making it ideal for temporary activation of circuits.

Key Features:

• Momentary OFF-(ON) switching action - button returns to OFF position when released
• Single Pole Single Throw (SPST) configuration
• Nickel-plated brass and phenolic non-corrosive construction for marine environments
• White actuator button for clear visibility
• Includes mounting adapter for standard 5/8" circuit breaker mounting hole
• Mounts directly in Blue Sea Systems A-Series circuit breaker panels
• 0.25" (6.35mm) quick connect terminals for easy wiring

Electrical Specifications:

• 250V AC: 3 Amps
• 125V AC: 6 Amps
• 32V DC: 6 Amps

Common Applications: Generator starters, bilge pumps, horns, windshield wipers, engine controls, and other circuits requiring momentary contact switching where circuit protection is provided separately.

This panel switch is perfect for marine vessels, RVs, and powersports vehicles where reliable, corrosion-resistant electrical controls are essential. The momentary contact design prevents accidental activation while allowing manual override control when needed.
