Egis Mobile Electric 8710-1300 XD Flex 2 Single Programmable VSR/ACR with Knob and Tinned Wires

The Egis Mobile Electric 8710-1300 XD Flex 2 Single Programmable VSR/ACR is a high-performance voltage sensing relay (VSR) and automatic charging relay (ACR) designed for marine, RV, and mobile power management applications. Factory-configured as an ACR with a front-facing manual override knob and tinned flying wire leads, this bi-stable relay delivers 500 amps of continuous capability in an exceptionally compact footprint.

The XD Flex 2 platform is engineered to replace and improve upon legacy solenoid-based charging relay solutions, offering a single device that can be reconfigured via onboard dip switches to function as a VSR, ACR, relay, battery disconnect, or low voltage disconnect — providing maximum flexibility for OEMs and professional installers.

Key Features:

• Lithium Battery System Ready: Supports higher ON/OFF charge voltage settings required by modern lithium battery chemistries alongside traditional lead-acid systems

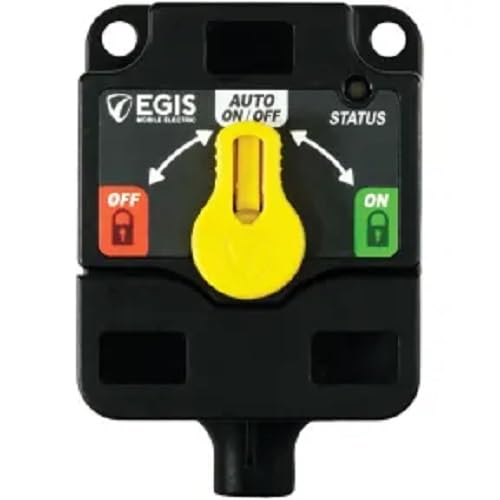

• 3-Position Manual Override Knob: Force each relay open or closed, or lock in either position for servicing and isolation
• LED Status Display: Front-facing LED provides instant visual device status; remote LED output replicates local indicator
• Simple Dip-Switch Programmability: Configure each relay independently as VSR/ACR, relay, battery disconnect, or low voltage disconnect without rewiring
• Plug & Play Compatibility: Pin-for-pin compatible with Blue Sea Systems ML Series bi-stable relays — wire-for-wire drop-in replacement
• IP67 / IP6K9K Sealed Construction: Fully weatherproof for harsh marine and outdoor environments
• Integrated Gortex Vent: Regulates internal pressure to prevent moisture ingress and extend service life
• Protective Terminal Cover Included: Guards terminal studs and cable edges against accidental shorts
• 40-Circuit Weatherproof Label Sheet Included: Convenient label recesses for easy circuit and relay identification; blank labels included for custom labeling
• 35–75% Reduction in Mounting Space & Weight: Advanced bi-stable solenoid design replaces bulkier multi-device layouts
• Stainless Steel Cable Lug Studs: Corrosion-resistant hardware; large mounting holes accept 1/4-20 / M6 fasteners
• Expandable: Compatible with XD Link and CrossLink Busbars to support 2- or 3-battery systems

The 8710-1300 ships with tinned flying wire leads and is the ideal solution for automatic battery charging isolation, dual-battery management, and multi-source charge system control in boats, RVs, commercial vehicles, and off-grid installations.
