Lowrance 000-16488-001 ActiveTarget 2 XL Live Sonar Transducer & Module Kit

The Lowrance ActiveTarget 2 XL (MPN: 000-16488-001) delivers the clearest, most complete live sonar system available for serious anglers. Featuring an extra-large transducer and surface-to-surface 180° live views, this kit includes the ActiveTarget 2 XL transducer and sonar module — giving you everything needed to see fish, structure, and your lure in stunning real-time detail.

Key Features:

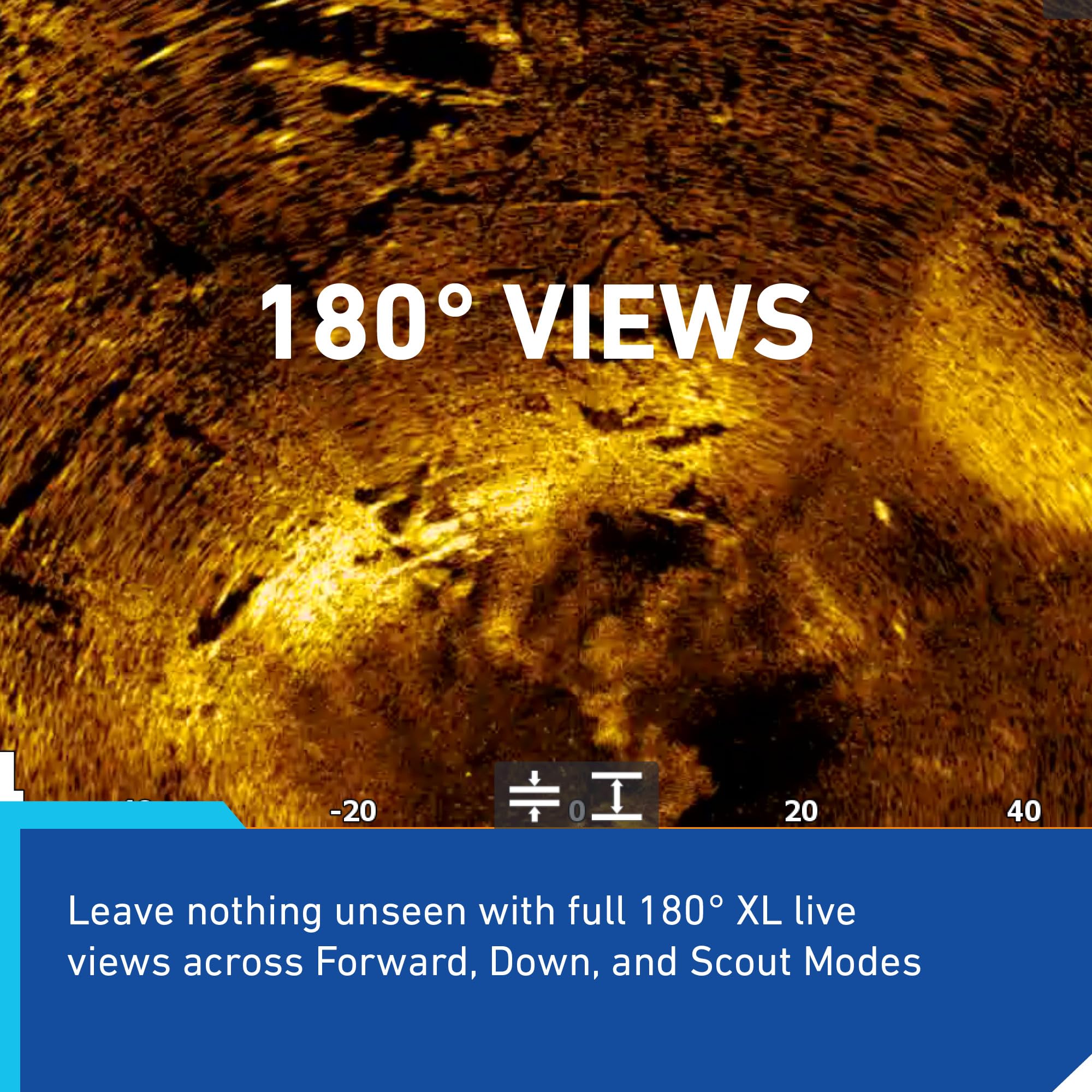

• Surface-to-Surface 180° Live Sonar View — Full coverage from surface to bottom leaves nothing unseen beneath or around your boat

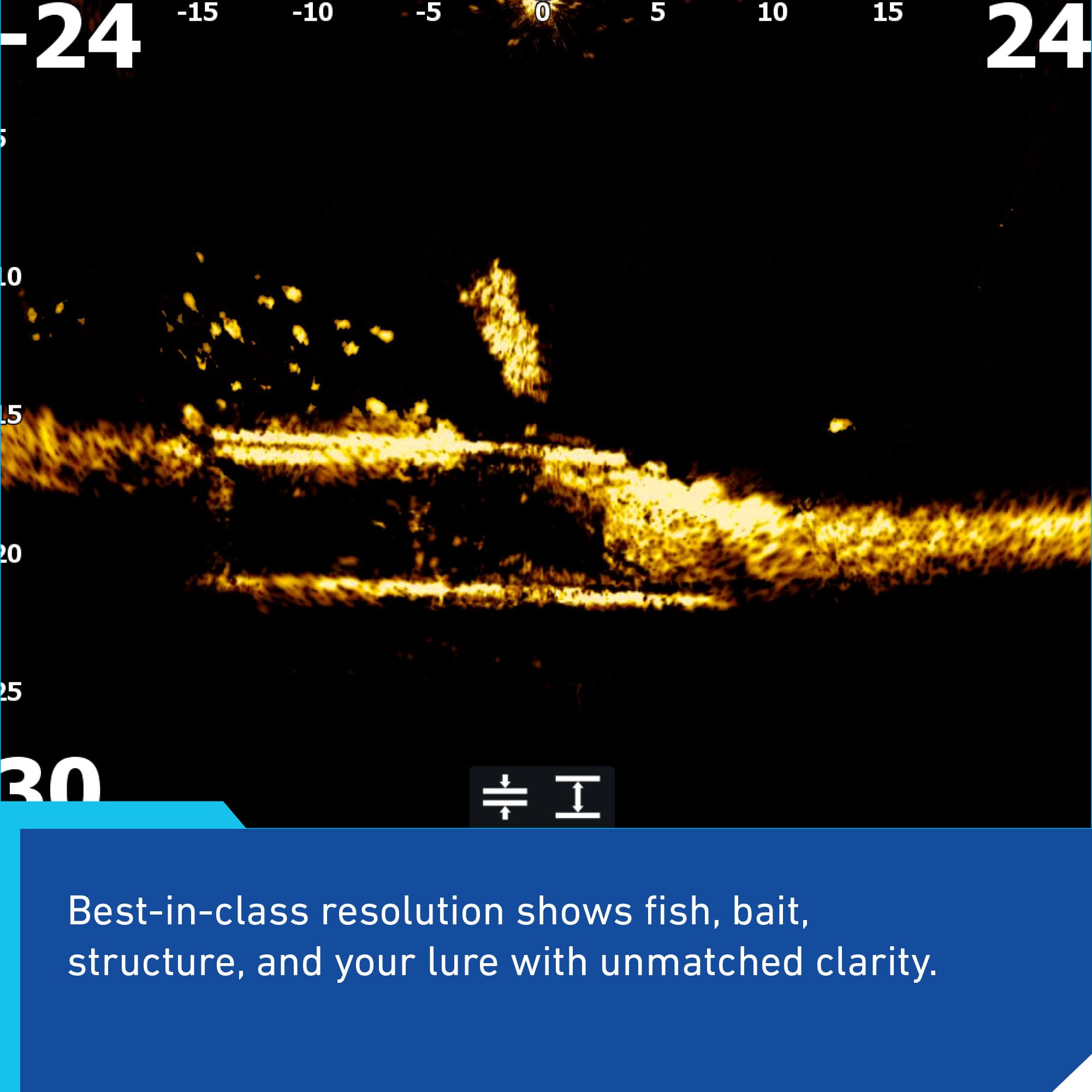

• Best-in-Class Resolution — The XL transducer delivers sharper, clearer real-time images of fish, bait, and structure at extended range
• Three Viewing Modes — Forward XL, Down XL, and Scout XL views all available from a single transducer installation

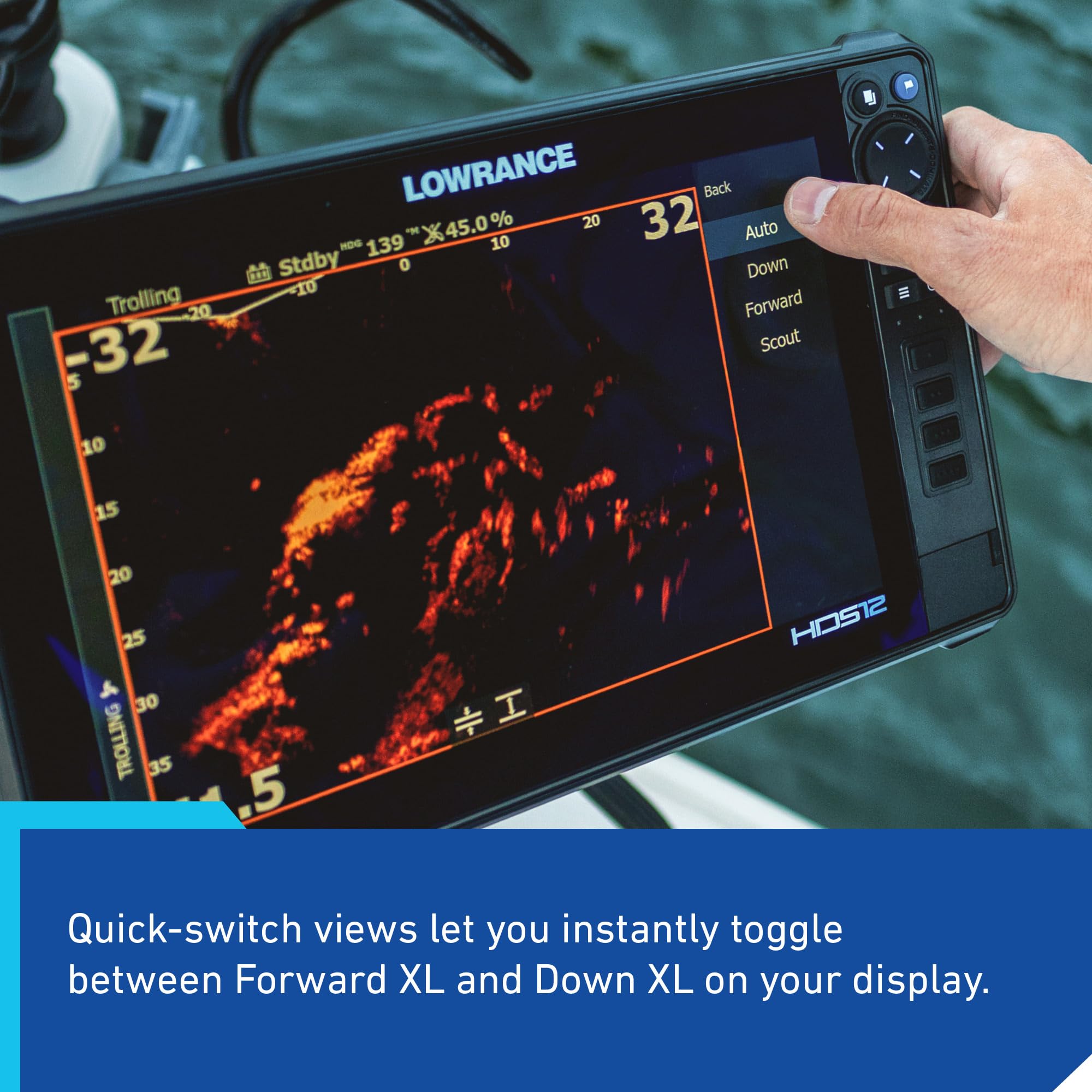

• Quick-Switch Display Control — Instantly toggle between Forward XL and Down XL views directly from your chartplotter display without manual transducer adjustments

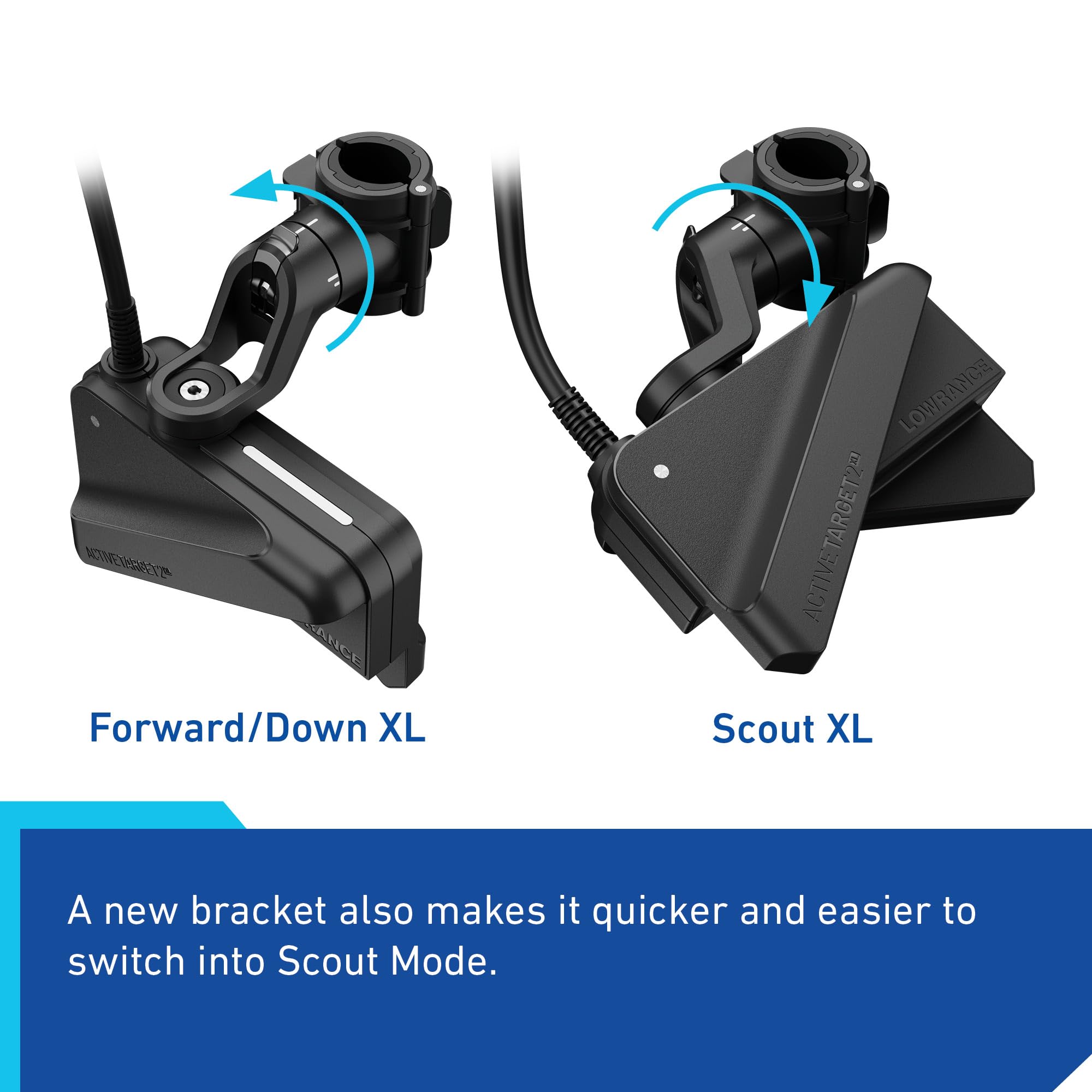

• Enhanced Scout Mode — Improved angle reference markers and mounting make dialing in the ultra-wide overhead Scout view fast and precise; ideal for locating bait balls and large schools
• Optimized Image Stabilization — Crisp, clear live-action views of fish and structure even in rough water conditions
• Expandable to Scout Live 360° — Add a second ActiveTarget 2 XL system for an industry-first full 360° live sonar view around your entire boat (requires two transducers and two modules; HDS PRO only)
• Compatible with Existing ActiveTarget 2 Modules — Anglers can reuse their current ActiveTarget 2 sonar module with the new XL transducer, reducing upgrade costs
• Broad Display Compatibility — Works with Lowrance HDS® PRO, HDS® LIVE, HDS® Carbon, and Elite FS® displays
• Single-Transducer Installation — Shaft mount included; compatible with 27–33mm diameter round shafts including Ghost and Ghost X trolling motors

Electrical Specifications:

• Supply Voltage: 10.8V DC – 31.2V DC (12/24V DC systems)
• Current Draw (Max): 2.2A @ 10.8V DC
• Current Draw (Typical): 1.5A @ 13.8V DC
• Recommended Fuse Rating: 5A
• Ethernet: 1 × 100 Mbit Ethernet Port
• IP Rating: IP67 (sonar module)
• Operating Temperature: -15°C to 55°C (5°F to 131°F)
• Storage Temperature: -30°C to 70°C (-22°F to 158°F)

Transducer Dimensions:

• Length: 7.08 in (179.9 mm)
• Width: 4.47 in (113.6 mm)
• Height: 2.68 in (68 mm)
• Cable Length: 25 ft (7.62 m)

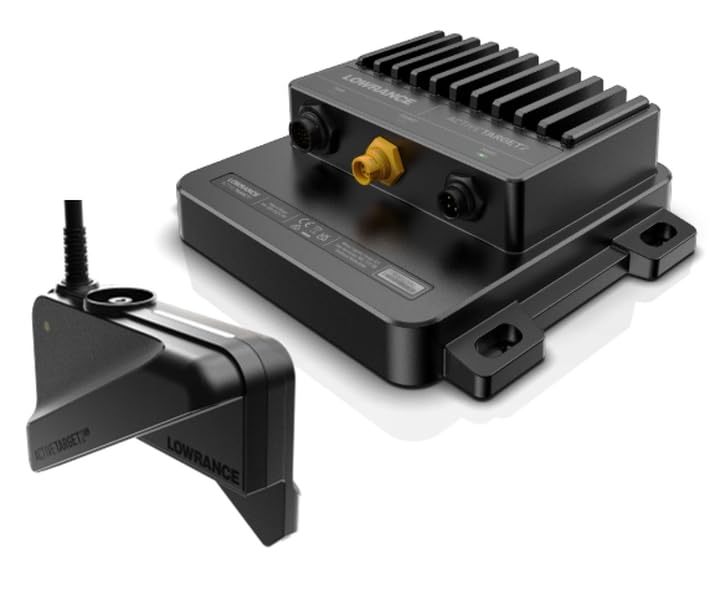

What's in the Box:

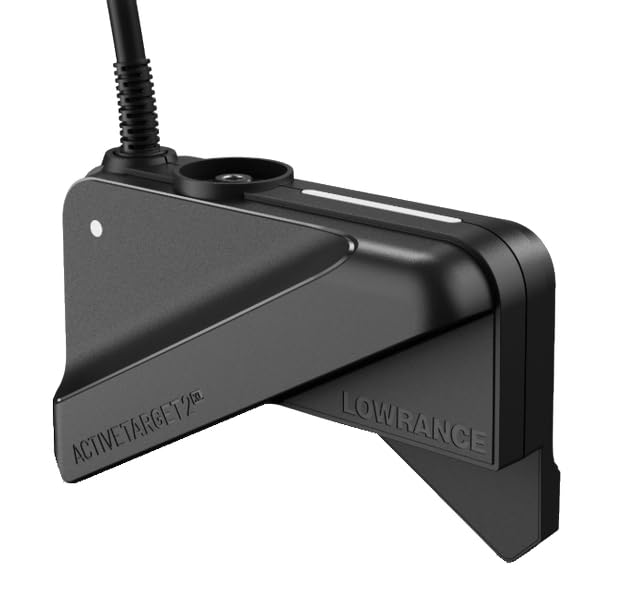

• ActiveTarget 2 XL Transducer with 25' Cable
• ActiveTarget 2 Sonar Module
• Shaft Mount Bracket Assembly (arm, shaft clamp, guides, compression springs, shoulder bolts)
• 15 ft Power Cable
• Ethernet Cable

The Lowrance ActiveTarget 2 XL live sonar system gives competitive anglers a decisive edge — watch fish respond to your lure in real time, identify their direction of movement, and adapt your presentation on the fly with unmatched underwater visibility.
