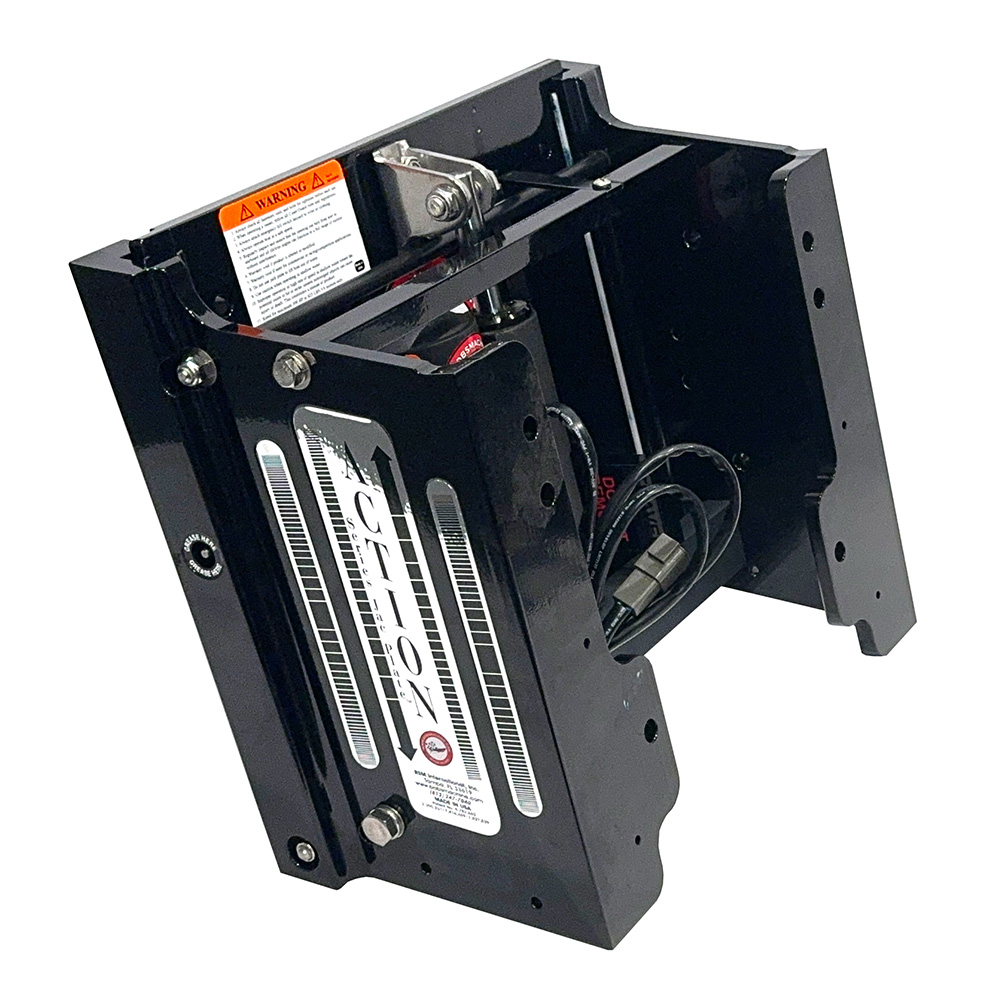

Bob'S Machine 100-108001P-PCGBLK-NOSPN-NG Action Series Hydraulic Jack Plate Powder Coated Gloss Black - 8-Inch

The Bob's Machine Shop Action Series Jack Plate in 8-inch setback with powder-coated gloss black finish is a premium hydraulic jack plate engineered for serious boaters and anglers running modern outboard motors. This innovative all-in-one unit features an integrated internal hydraulic pump built directly into the jack plate structure, eliminating the need to mount a separate pump inside the boat and simplifying the rigging process significantly.

The Action Series delivers 7.5 inches of total lift—1.5 inches built into the structure plus 6 inches of adjustable hydraulic travel—providing outstanding holeshot performance, improved shallow-water capability, and optimized running attitude under varying load conditions. The high-powered internal motor provides fast, smooth engine height adjustments even under full power with heavy outboards.

Key Features:

• Integrated internal pump — housed within the jack plate itself, saving valuable space inside the boat
• 8-inch setback — one-piece design requires no setback spacers
• 7.5 inches of total lift — 1.5" built-in lift plus 6" of adjustable hydraulic travel
• Rated for outboards up to 300 HP and engines weighing up to 625 lbs
• Supports motor mounting widths up to 14.5 inches
• Powder-coated gloss black finish — multi-step process including metal etching, Mil-spec epoxy primer, and powder topcoat for long-lasting protection and a factory-custom appearance
• Automotive-style grease nipples in the side rails for easy lubrication and maintenance
• Tension rods for improved structural alignment and stability
• Pre-drilled for dual side-mount Power Pole brackets
• Convertible design — can be reconfigured to run the pump inside the boat if preferred
• Compatible with both freshwater and saltwater environments
• Made in the USA

What's Included:

• Jack plate assembly
• Wiring harness
• Relays
• Rocker-style switch

Warranty: Limited Lifetime Structural Warranty / 3-Year Action Pump Warranty

Note: Yamaha motors with integrated steering require an optional 1-inch spacer set installed between the jack plate and motor for proper clearance.
