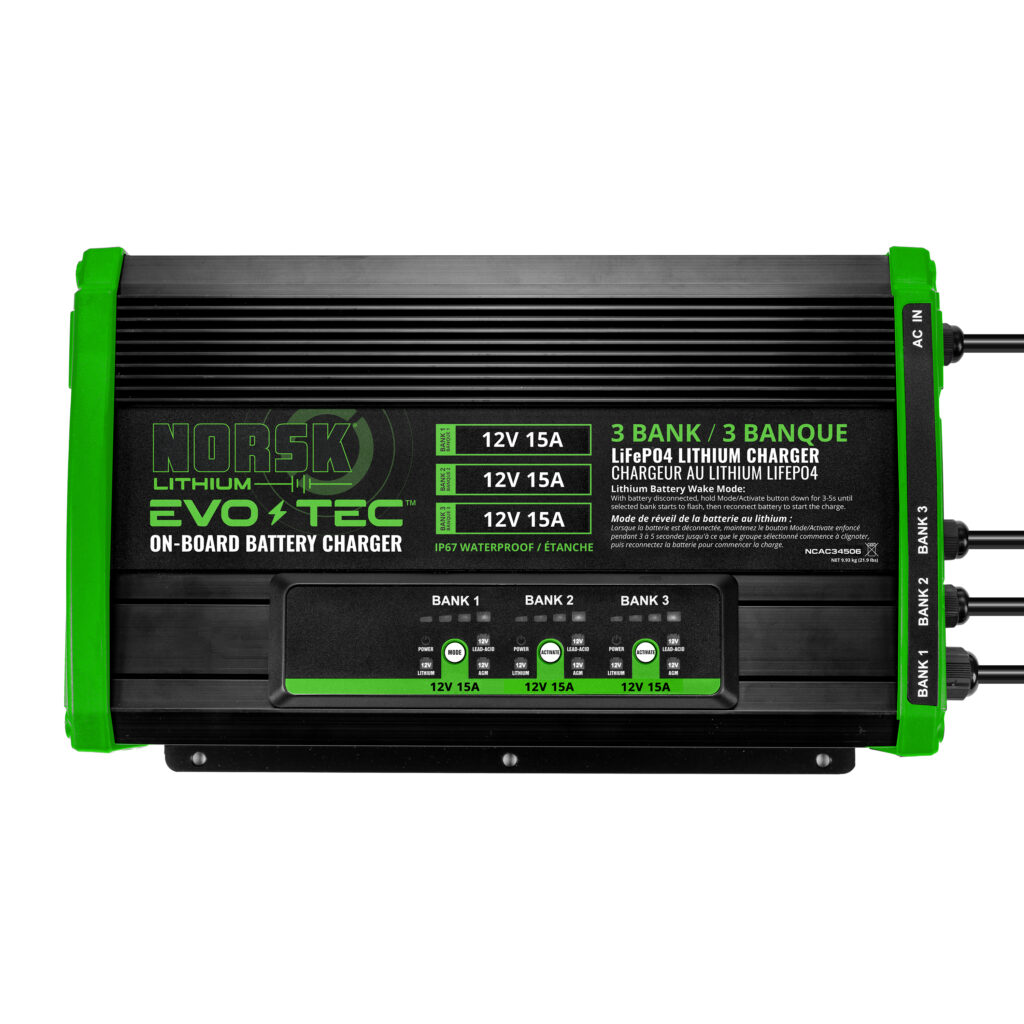

Norsk Lithium NCAC34506 EVO-TEC Selectable On-Board Marine Battery Charger - 3-Bank 12V 15A

The Norsk Lithium EVO-TEC™ NCAC34506 is a 3-bank, 12V on-board marine battery charger that delivers 15A across all three independent banks. Designed for multi-battery marine setups, this charger supports AGM, lead-acid, and lithium battery chemistries with selectable chemistry settings on Bank 1, giving you precise control over each charging output.

Bank Configuration:

• Bank 1: 12V @ 15A — Selectable chemistry (AGM, Lead-Acid, or Lithium)
• Bank 2: 12V @ 15A — Dedicated 12V output
• Bank 3: 12V @ 15A — Dedicated 12V output

Key Features:

• Selectable Battery Chemistry — Easily switch between AGM, lead-acid, or lithium to ensure optimal charging for each bank
• Automatic Shutdown — Charger automatically stops when the battery reaches full charge, preventing overcharging and extending battery life
• Burnout Protection — Internal temperature and power flow monitoring shuts the charger down if overheating or overload is detected
• Reverse Connection Protection — Detects incorrect cable connections and immediately prevents charging to protect batteries and charger
• No-Load & Short Circuit Protection — Comprehensive safeguards for a wide range of fault conditions
• Fully Potted Case with Epoxy Resin — Internal components are encapsulated in epoxy resin for superior resistance to moisture, dust, and vibration
• IP67 Waterproof Rated — Completely dust-tight and capable of withstanding submersion up to 1 meter for 30 minutes, ideal for demanding marine environments
• Overtemperature Protection — Automatically reduces output current when internal radiator temperature reaches 80°C ±5°C

Compact and designed for easy installation aboard a vessel, the EVO-TEC™ NCAC34506 is well-suited for maintaining trolling motor batteries, onboard electronics, and auxiliary 12V systems simultaneously. Its multi-chemistry compatibility makes it a versatile solution for boats running mixed battery banks.
