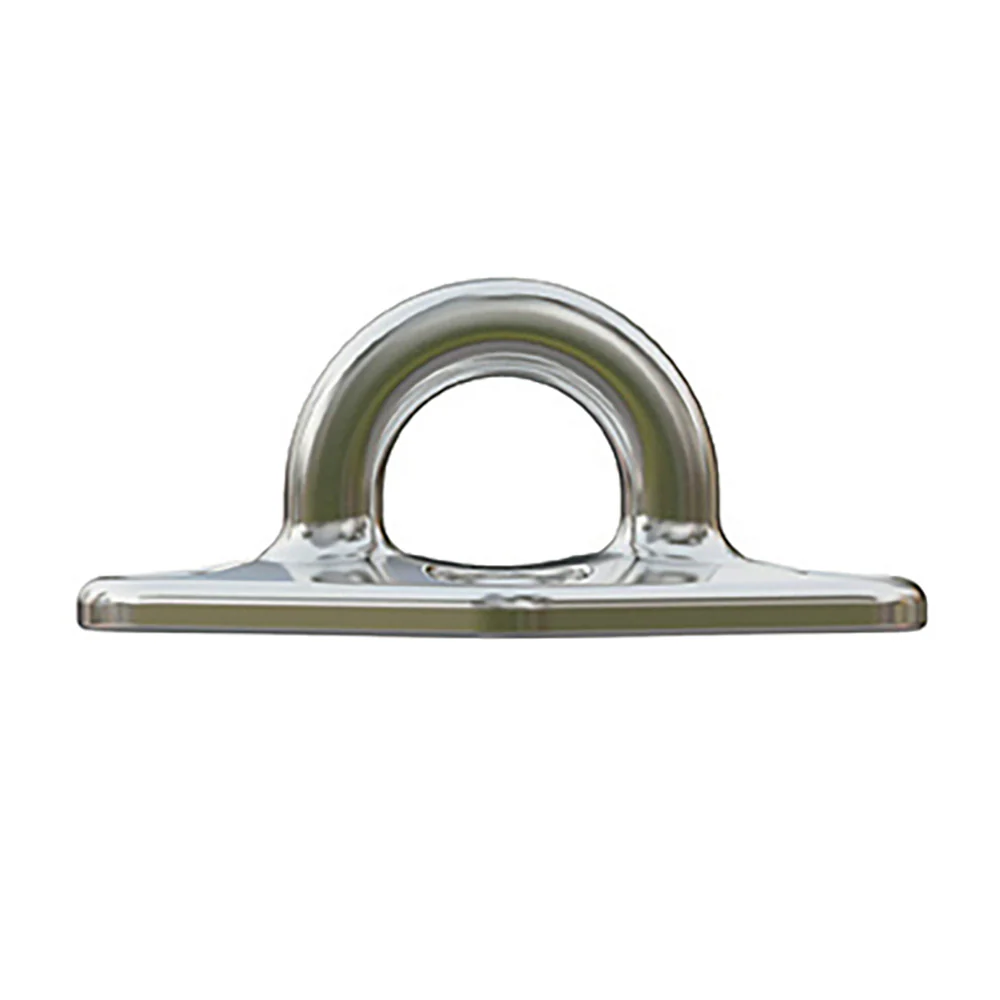

Wichard 6645W Diamond Pad Eye Round Duplex Stainless Steel - 79mm M6

The Wichard 6645W Diamond Pad Eye is a fixed, round-profile pad eye crafted from duplex stainless steel, engineered to deliver an exceptional balance between mechanical strength and corrosion resistance. At 79mm (3-7/64") in length and sized for M6 fasteners, this pad eye is purpose-built for demanding marine rigging and deck hardware applications.

Key Features:

• Constructed from duplex stainless steel for superior corrosion resistance in saltwater environments
• Optimized diamond-round profile balances strength-to-weight ratio
• Designed for M6 screw fastening
• Working Load: 6,393 lbs (2,900 kg) at 90°
• Breaking Load: 17,196 lbs (7,800 kg) at 90°
• Multi-angle load ratings: 5,732 lbs at 45° and 5,291 lbs at 0°

Specifications:

• Overall Length (A): 79mm (3-7/64")
• Dimension B: 60mm (2-23/64")
• Dimension C: 50mm (1-31/32")
• Dimension D: 32mm (1-17/64")
• Weight: 0.315 lbs (143g)
• Material: Duplex stainless steel
• Fastener: M6 screw

Common Applications:

• Mast foot blocks
• Reefing blocks
• General deck fastenings and attachment points

The Wichard 6645W is a trusted choice for sailors and marine riggers requiring a compact, high-strength fixed pad eye that resists the rigors of the marine environment without compromise.
