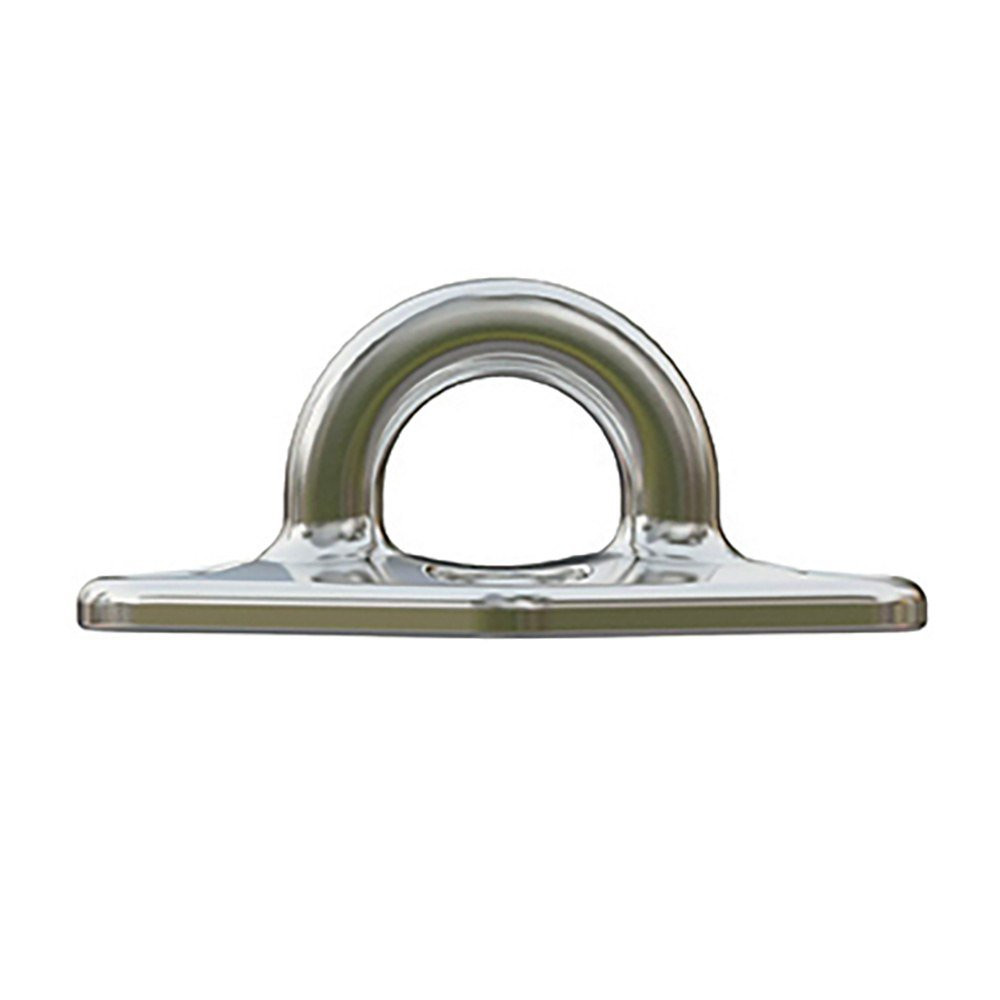

Wichard 6646W Diamond Pad Eye Round 98mm (3-55/64") M8 Duplex Stainless Steel

The Wichard 6646W Diamond Pad Eye is a fixed, round-base pad eye machined from duplex stainless steel, engineered to deliver an exceptional mechanical resistance-to-corrosion resistance ratio in demanding marine environments. With a 98mm (3-55/64") body length and M8 screw mounting, this pad eye is designed for high-load rigging and deck hardware applications aboard sailboats and powerboats.

Key Features:

• Duplex stainless steel construction — superior strength-to-corrosion resistance ratio versus standard 316 stainless
• 98mm (3-55/64") overall length with optimized diamond profile for compact, low-profile installation
• M8 screw mounting — fits standard M8 fasteners for secure deck or spar attachment
• Working Load: 9,259 lbs (4,200 kg)
• Breaking Load: 24,692 lbs (11,200 kg)
• Round base profile for versatile mounting on curved or flat surfaces
• Drop-forged construction for consistent strength throughout the part

Specifications:

• Material: Duplex stainless steel
• Overall Length (A): 98mm (3-55/64")
• Dimension B: 73mm
• Dimension C: 59mm
• Dimension D (pin/bore): 35mm
• Screw Size: M8
• Weight: 0.551 lbs (250 g)

Common Applications:

• Mast foot blocks
• Reefing blocks
• Boom vang attachments
• General deck and spar fastenings

The Wichard 6646W is part of Wichard's proven diamond pad eye series, a trusted choice among sailors and riggers worldwide for its optimized geometry and marine-grade durability.
