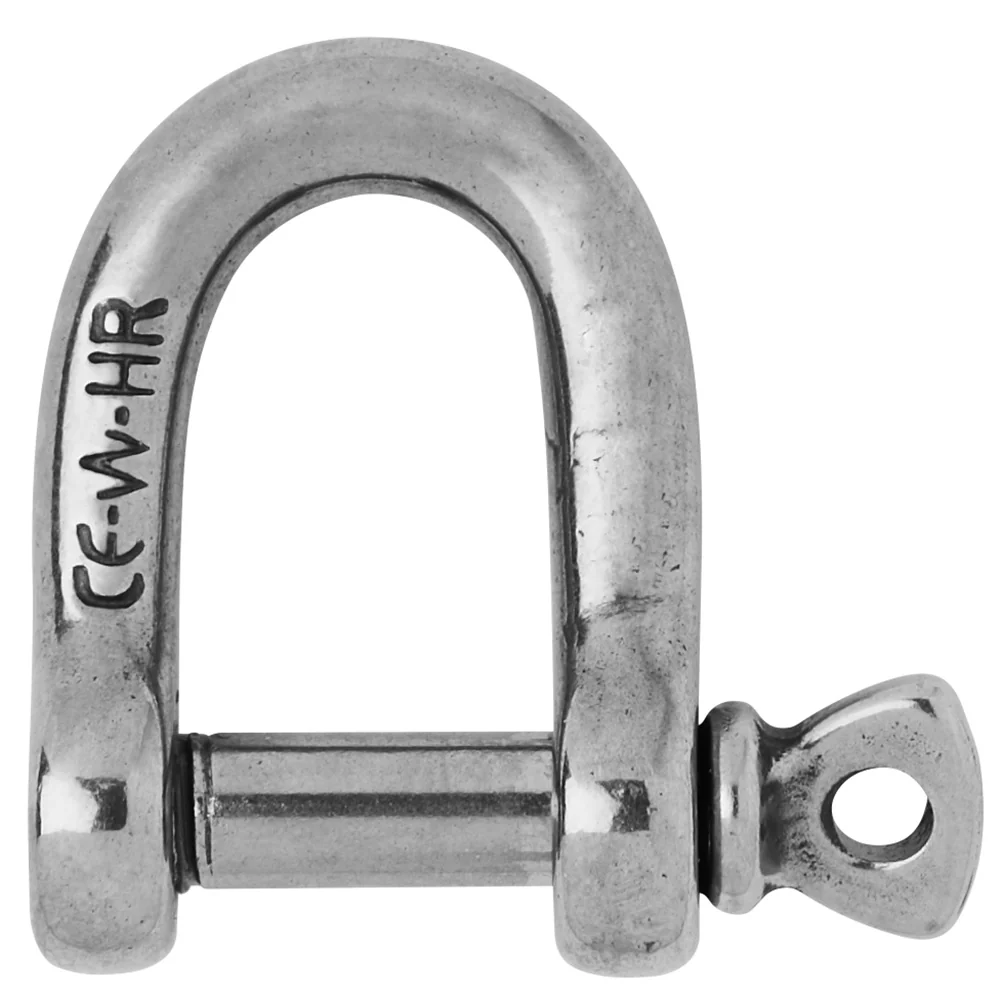

Wichard 11205W HR D Shackle 25/64" Diameter High-Resistance 17-4 PH Stainless Steel

The Wichard 11205W HR D Shackle is a precision-forged marine and rigging shackle crafted from High-Resistance (HR) 17-4 PH stainless steel — a premium precipitation-hardened alloy that delivers significantly greater strength than standard 316L stainless steel. With a pin diameter of 25/64", this shackle is engineered for demanding load-bearing applications on sailboats, powerboats, and other marine or rigging systems.

Key Features:

• Forged HR 17-4 PH stainless steel construction for maximum strength and corrosion resistance
• Up to 60% more resistant than comparable shackles made from 316L stainless steel
• Outstanding working load and breaking load ratings for high-stress applications
• CE marking and batch number for full traceability and compliance
• Working Load (WL): 5,820 lb — suitable for nautical applications
• Working Load Limit (WLL): 2,640 lb — for industrial/lifting applications only
• Breaking Load: 13,220 lb
• Safety factor of 5x the breaking load

Dimensions:

• D Diameter: 25/64" (10 mm)
• A (inside length): 1-19/64"
• B (inside width): 25/32"
• Weight: 0.225 lb

Recommended Applications:

• High-load rigging and attachment applications
• Block and tackle attachment
• Standard shackle applications requiring elevated load capacity

Not recommended for mooring applications. WLL ratings apply to industrial/lifting use only; consult working load (WL) values for nautical use. This shackle carries CE marking and is supplied with a batch number for traceability.
