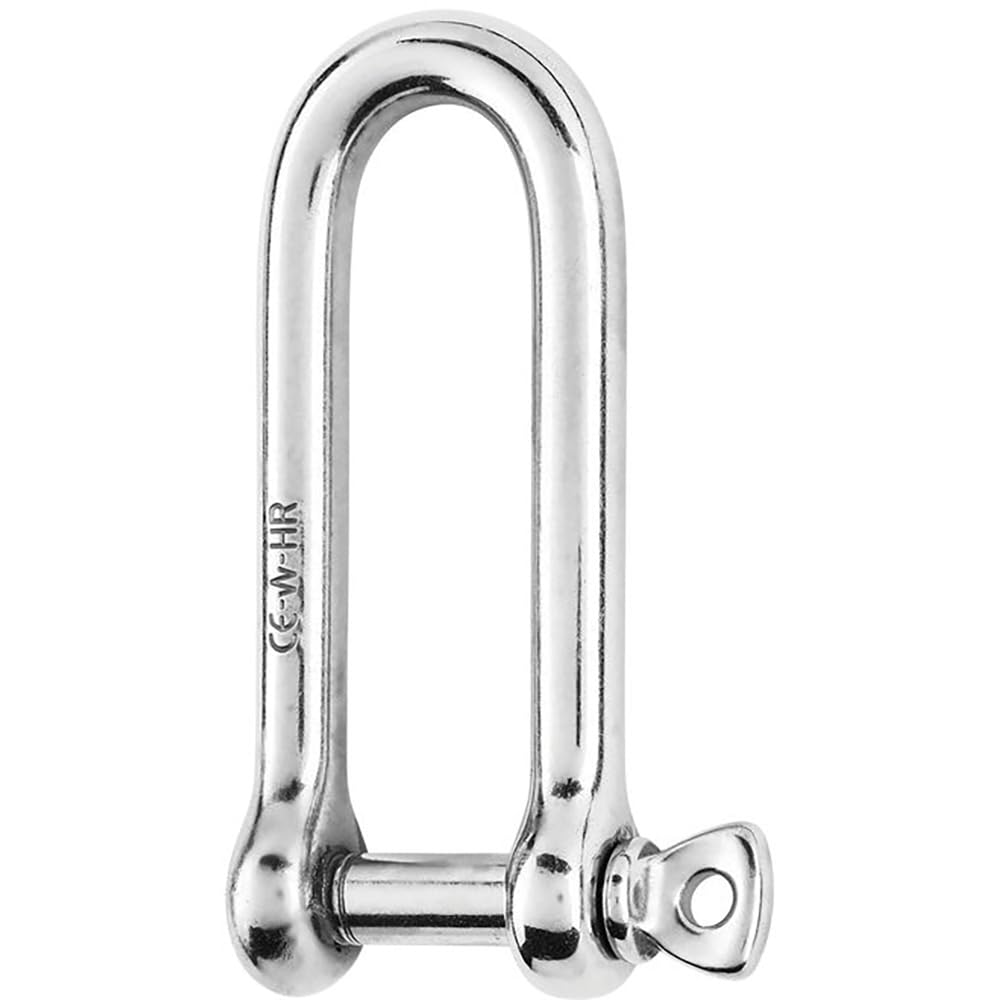

Wichard 11215W HR Long D Shackle 10mm Diameter 25/64" High-Resistance Stainless Steel

The Wichard 11215W HR Long D Shackle is a premium marine-grade shackle drop-forged from 17-4 PH High Resistance (HR) stainless steel, delivering exceptional strength and corrosion resistance for demanding nautical and industrial applications. With a 10mm (25/64") pin diameter and elongated D-body profile, this shackle is engineered for attachment points requiring additional length, such as blocks and rigging hardware.

Key Features:

• HR 17-4 PH stainless steel construction — up to 60% more resistant than standard 316L stainless steel shackles
• Outstanding load capacity — Working Load (WL) of 5,820 lb (2,640 kg) for nautical applications
• Working Load Limit (WLL) — 2,640 lb (1,200 kg) for industrial/lifting applications
• Breaking load — 13,220 lb (6,000 kg); safety factor is 5× the breaking load
• Long D-body profile — ideal for attachment applications including blocks and head fittings
• CE marked — meets applicable European conformity standards
• Designed and manufactured in France by Wichard, a trusted name in marine hardware

Specifications:

• Material: HR 17-4 PH Stainless Steel
• Pin Diameter (D): 10 mm / 25/64"
• Overall Length (A): 78 mm / 3-5/64"
• Inside Width (B): 20 mm / 25/32"
• Weight: 164 g / 0.362 lb
• Working Load (Nautical): 5,820 lb / 2,640 kg
• WLL (Industrial): 2,640 lb / 1,200 kg
• Breaking Load: 13,220 lb / 6,000 kg

Recommended Applications:

• High-load rigging and sailing hardware attachment
• Block and tackle connections
• Industrial lifting (per WLL rating)

Important: Not recommended for mooring applications. Working Load Limit (WLL) is designated for industrial use only. Nautical Working Load (WL) applies to marine/sailing applications.
