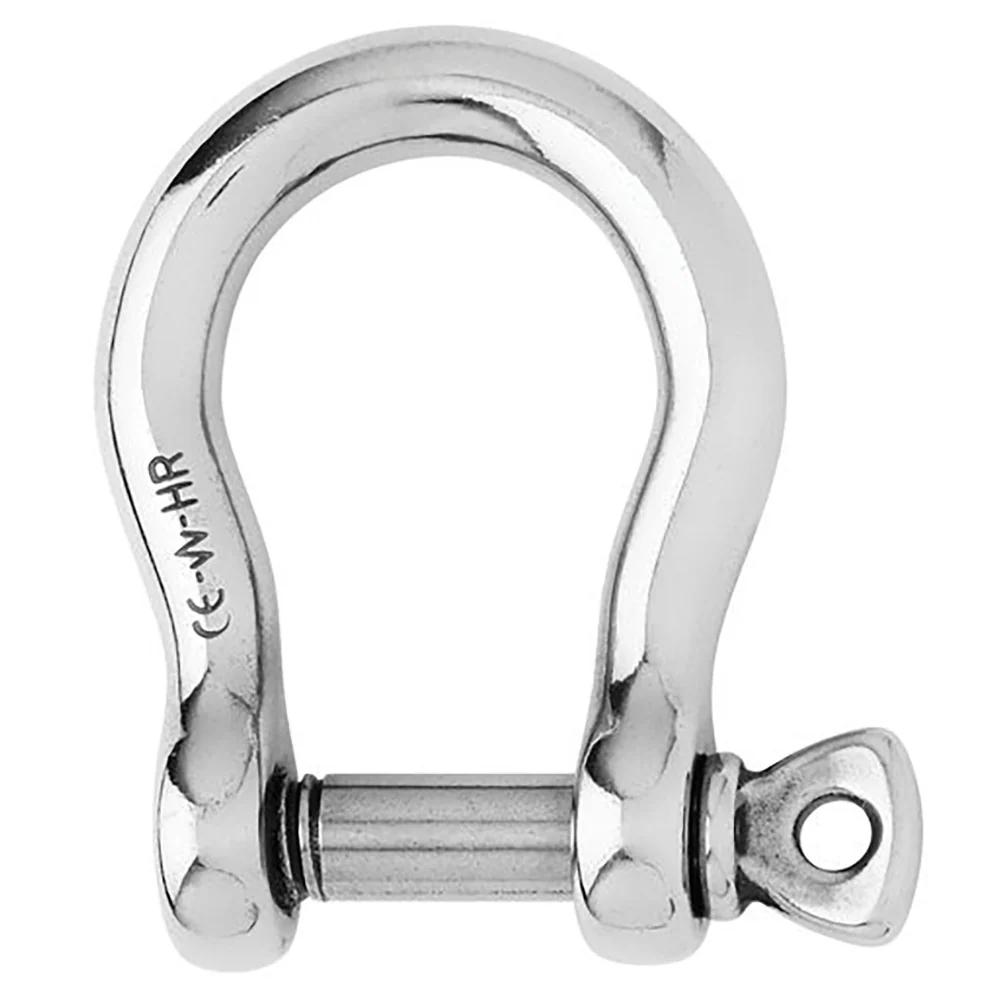

Wichard 11247W HR Bow Shackle 16mm Diameter 5/8" High-Resistance Stainless Steel

The Wichard 11247W HR Bow Shackle is a premium-grade forged marine shackle built for applications demanding exceptional strength and reliability. Crafted from High-Resistance (HR) 17-4 PH stainless steel, this 16mm (5/8") bow shackle delivers superior load performance compared to standard 316L stainless steel hardware — offering up to 60% greater resistance in the same form factor.

Key Features:

• Forged bow shackle in HR 17-4 PH stainless steel grade for maximum corrosion resistance and strength
• Up to 60% more resistant than comparable 316L stainless steel shackles
• Outstanding working load and breaking load ratings
• CE marked; WLL rated for industrial lifting applications
• Wide bow design accommodates multiple lines or cables simultaneously
• Ideal for high-load applications where ample attachment room is required
• Not intended for mooring applications

Specifications:

• Material: HR 17-4 PH Stainless Steel
• Pin Diameter: 16mm / 5/8"
• Working Load (Nautical): 14,990 lb (6,800 kg)
• Working Load Limit / WLL (Industrial): 8,370 lb (3,800 kg)
• Breaking Load: 41,880 lb (19,000 kg)
• Dimension A: 2-3/4" (70mm)
• Dimension B: 1-17/64" (32mm)
• Dimension C: 5/8" (16mm)
• Dimension D: 1-17/64" (32mm)
• Weight: 1.16 lb (526g)

Wichard has been a trusted name in marine hardware for over a century, engineering products that meet the highest standards of safety and performance. The 11247W HR Bow Shackle is CE marked and backed by rigorous load testing, making it a dependable choice for sailing rigging, lifting, and other demanding marine or industrial applications.
