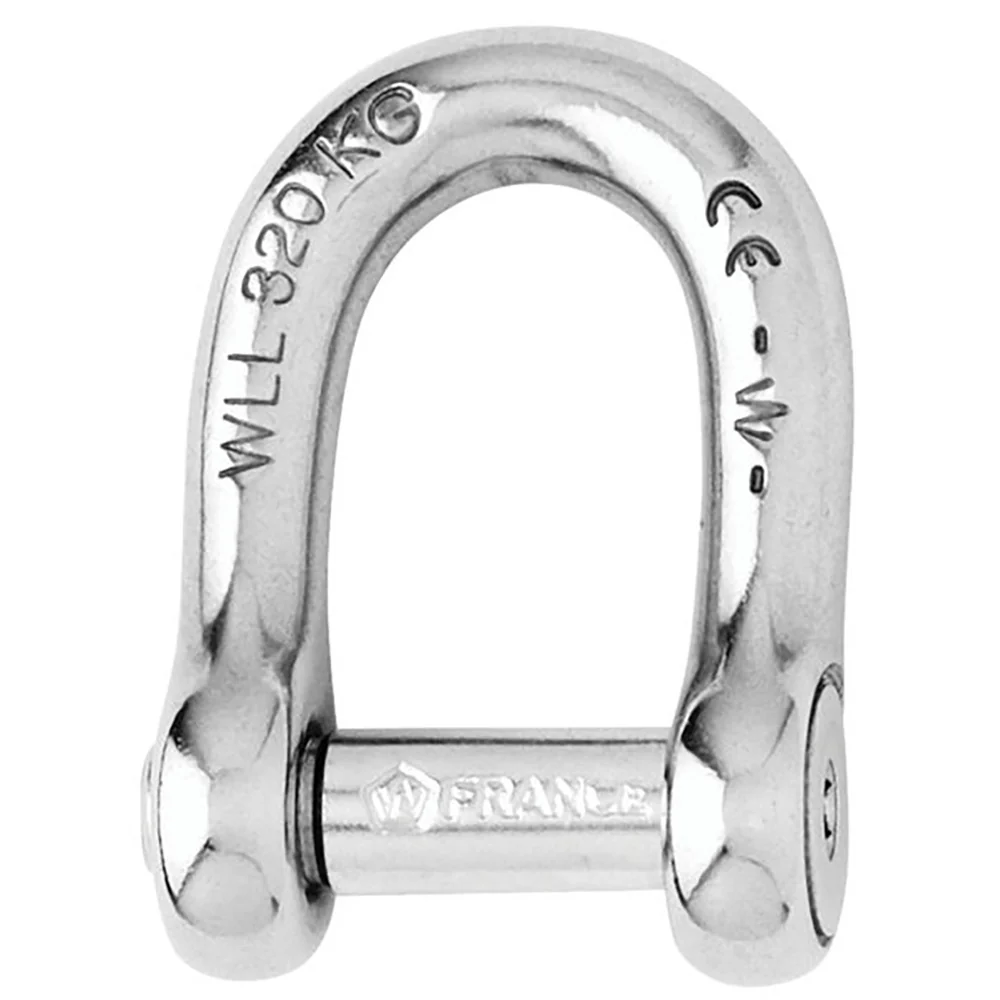

Wichard 1303W Self-Locking Allen Head Pin D Shackle 6mm 1/4" Grade 316L Stainless Steel

The Wichard 1303W is a self-locking Allen head pin D shackle forged from grade 316L stainless steel, delivering exceptional strength, corrosion resistance, and reliability for marine and industrial applications. With a 6mm (1/4") pin diameter, this shackle is engineered for secure, snag-free connections wherever dependable hardware is required.

The pin locks into one of the indentations on the shackle body, and its flush head design means it sits completely recessed — eliminating any risk of snagging on lines, sails, or rigging. The positive locking mechanism also prevents the pin from backing out due to vibration, making this shackle ideal for high-motion marine environments.

Key Features:

• Forged from grade 316L stainless steel for superior corrosion resistance
• Self-locking pin seats into body indentations to prevent accidental release
• Flush Allen head pin design eliminates snagging hazards
• Vibration-resistant — no risk of loosening under load or movement
• Outstanding working and breaking load ratings
• CE marked; WLL rated for industrial lifting applications

Specifications:

• Material: Grade 316L stainless steel
• Pin Diameter: 6mm (1/4")
• Working Load: 1,320 lb (600 kg)
• Working Load Limit (WLL): 700 lb (320 kg) — industrial applications only
• Breaking Load: 3,520 lb (1,600 kg)
• Weight: 0.049 lb (22 g)
• Dimension A: 3/4" (19mm)

Applications:

• Linking chain and anchor rode
• Halyard connections — recessed pin avoids damage to sails
• Use in confined or cluttered rigging spaces
• General marine deck hardware and rigging

Sold individually. Manufacturer Part Number: 1303W.
