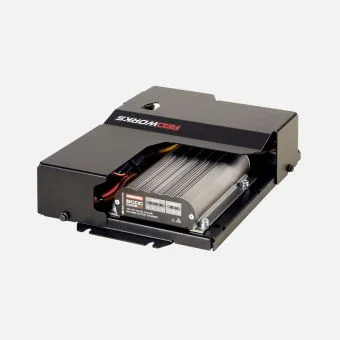

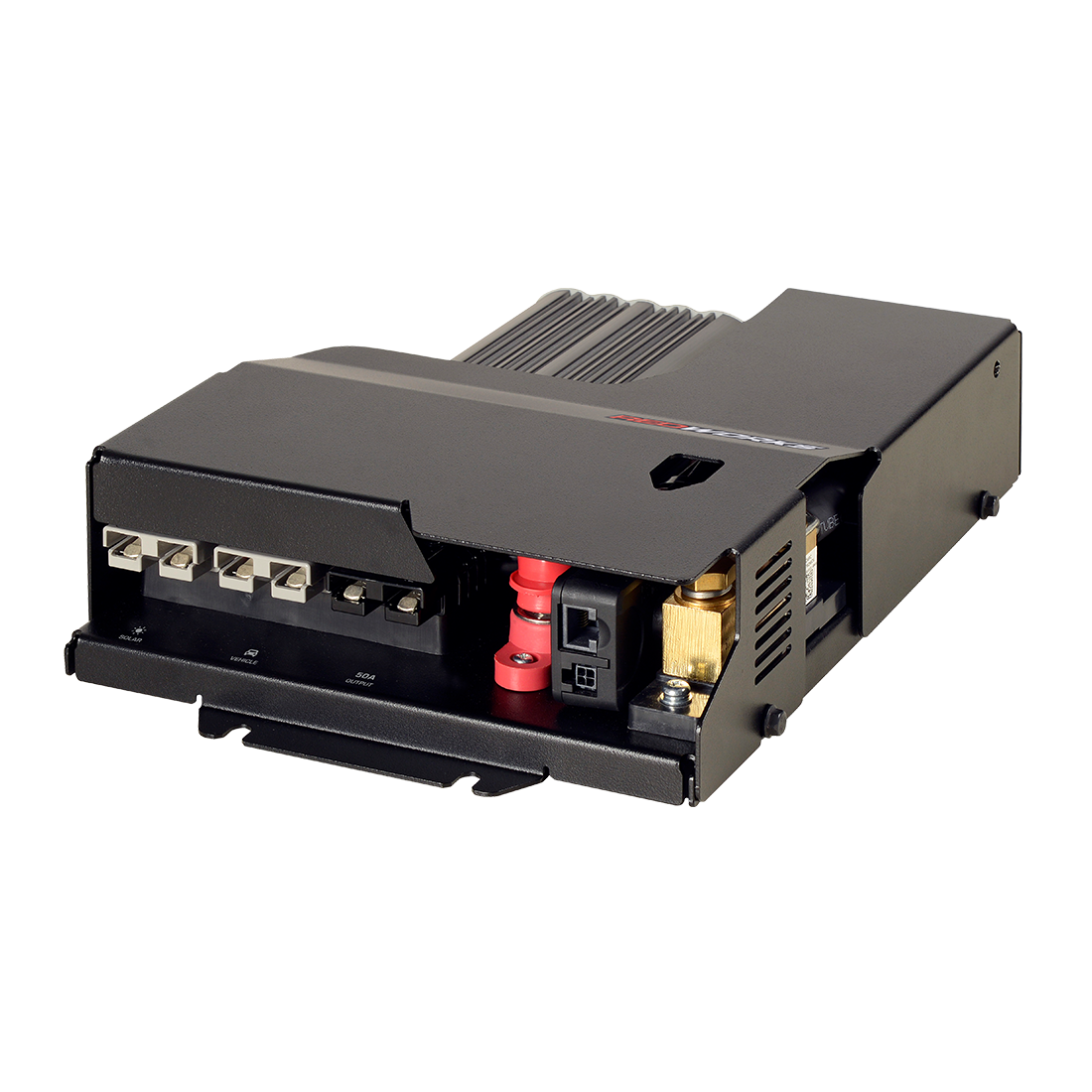

REDARC ICMS-015-001 REDWorks Scout25 Pre-Wired Power Panel with 25A BCDC Core DC Battery Charger

The REDARC REDWorks Scout25 (ICMS-015-001) is a compact, pre-wired dual battery system designed to deliver reliable off-grid power without complicated setup. Combining the BCDC Core25 In-Cabin 12V 25A DC-DC Battery Charger and a Smart Battery Monitor on a single ready-to-install mounting board, the Scout25 is purpose-built for overlanders, weekend adventurers, and work vehicle operators who need dependable auxiliary power on demand.

Key Features:

• 25A DC-DC Charging: Charges your auxiliary battery at up to 25A directly from the vehicle alternator while driving, keeping your system ready for camp or the worksite
• Integrated MPPT Solar Regulator: Plug in portable or fixed solar panels and let the built-in Maximum Power Point Tracking (MPPT) regulator extract maximum charge from the sun
• Green Power Priority® Technology: Charges from both solar and alternator simultaneously, prioritizing solar input first to minimize alternator load and maximize efficiency
• Wide Battery Chemistry Support: Compatible with heated and standard Lithium (LiFePO₄), AGM, GEL, sealed lead acid, and calcium battery types
• 50A Anderson™ Output: High-current output supports demanding loads up to 50A including 12V fridges, large compressors, and electric jacks
• Smart Battery Monitor: Real-time visibility of state of charge, remaining run time, and input/output current — accessible from your smartphone
• LED Status Indicators: On-board BCDC charger LEDs provide clear charge status and fault detection at a glance
• Anderson Plug Connectivity: Easy-access Anderson plugs allow quick connection of fridges, solar panels, and other accessories
• Space-Saving Design: Approximately the size of an A4 sheet of paper — fits behind drawers, under seats, or in tight custom enclosures
• Pre-Wired and Ready: All components are pre-assembled on a mounting board, reducing installation time and complexity

The Scout25 is suitable for battery bank sizes of 60–200Ah for AGM and lead acid chemistries, and up to 100Ah for lithium. Designed, tested, and manufactured in Australia, the REDWorks Scout25 is backed by REDARC's industry-leading technical support and the nationwide REDNetwork certified installer program. Professional installation by a qualified auto electrician is recommended.
