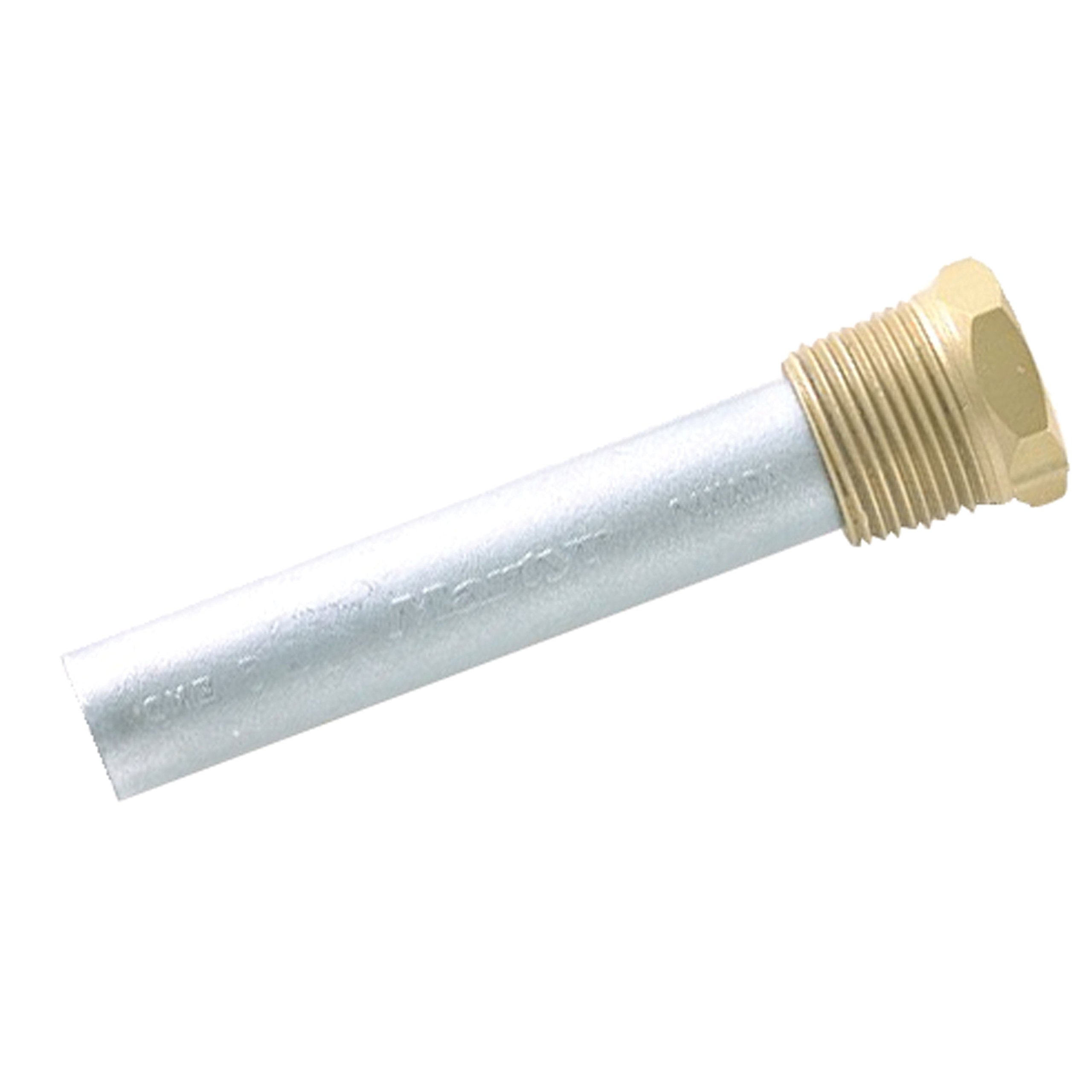

CMP CME1H Zinc Pencil Anode with Brass Plug 3/8 NPT x 1/2 x 2 Inch

The CMP CME1H is a sacrificial zinc pencil anode designed to protect marine engine cooling systems from galvanic corrosion in saltwater environments. The CME series consists of a brass plug with a zinc anode threaded into it, making installation and replacement straightforward directly from the engine block.

Zinc is the preferred alloy for engine cooling system pencil anodes, as recommended by leading engine manufacturers including Cummins, Yanmar, and Caterpillar. Unlike aluminum, zinc pencil anodes will not fracture at the neck and block coolant channels — a critical safety advantage in closed cooling systems.

Key Features:

• Sacrificial zinc anode provides corrosion protection for engine cooling system components
• Includes brass plug — complete, ready-to-install assembly
• Zinc alloy manufactured to meet or exceed US Military Specification MIL-DTL-18001L
• Pressure die-cast construction to strict ISO 9001 Quality Management System standards
• Alloy is free from impurities such as iron that can compromise anode performance
• For use in saltwater only — not recommended for freshwater applications

Specifications:

• Thread Size: 3/8 inch NPT
• Anode Diameter: 3/8 inch (0.375 in)
• Anode Length: 2 inches
• UNC Thread: 7/16 inch
• Material: Zinc alloy with brass plug

Regular replacement of pencil anodes is essential to maintaining optimal corrosion protection and extending the service life of critical engine cooling components.
