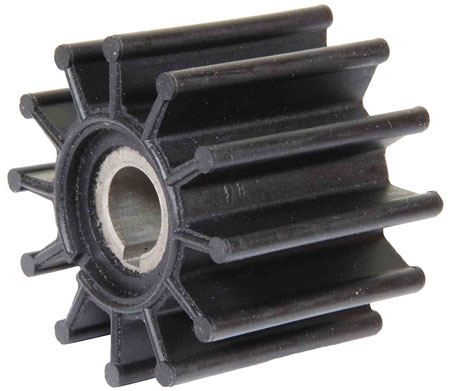

Sherwood Pump 15000K-SHW Neoprene Impeller Kit with Gaskets 12-Blade

The Sherwood 15000K-SHW is an OEM neoprene rubber impeller kit designed for Sherwood marine raw water pumps. This complete service kit includes the impeller, gasket, O-ring, and a technical service guide — everything needed for a proper impeller replacement in a single package.

The flexible 12-blade neoprene impeller delivers excellent elasticity and snap-back performance, ensuring reliable self-priming and efficient fluid transfer in marine engine cooling, bilge, and industrial processing applications. Neoprene is the industry-standard material for flexible impellers and is well-suited for fresh and salt water transfer duties where small amounts of oil or diesel may be present.

Impeller Specifications:

• Material: Neoprene rubber
• Number of Blades: 12
• Diameter: 2-9/16 in. (65 mm)
• Width: 2 in. (50.8 mm)
• Shaft: 5/8 in. (16 mm) Key Drive
• Keyway: 3/16 in.
• Max Temperature: 130°F

Kit Includes:

• Neoprene impeller
• Gasket
• O-ring
• Technical service guide

Compatible Pump Models:

• Sherwood G157 (Marine Power)
• Sherwood GC1, GC1-01, GC4, GC4-01, GC5, GC5-01
• Sherwood G1503, G1503-03
• Sherwood G155 (Starpower Stern Drive)
• Sherwood G151, P151 (Starpower Inboard / US Marine 351)

Cross-Reference Part Numbers:

• Jabsco: 18327-0001, 18327-0001-P
• Cummins: 3349198, 3916720, 3393854, 3349340
• Mercruiser: 47-453126, 47-853126
• Johnson: 09-707B-1
• JMP: 7352-01K

Installation Note: Always grease the new impeller before installation to ease fitment and protect blades during initial prime. Allow up to 30 seconds for the pump to self-prime after installation. Do not run the pump dry beyond 30 seconds, as lack of liquid will damage the impeller.
